745-148 Series
Manufacturer: EDAC Inc.
Beta
⌘K

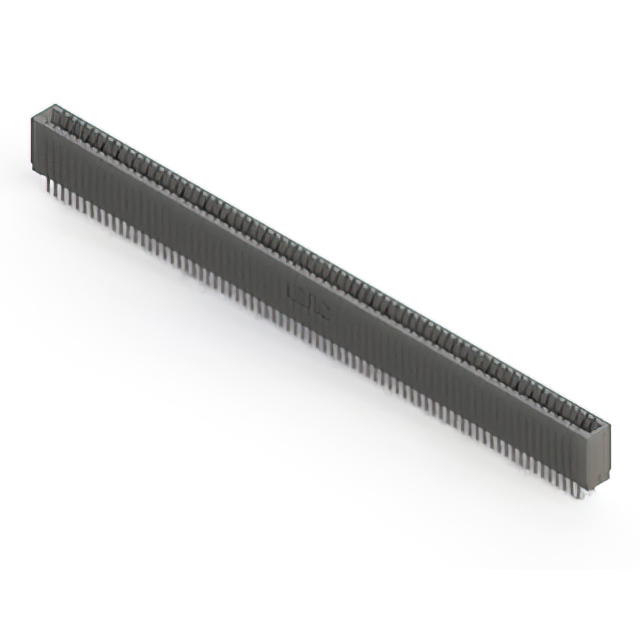

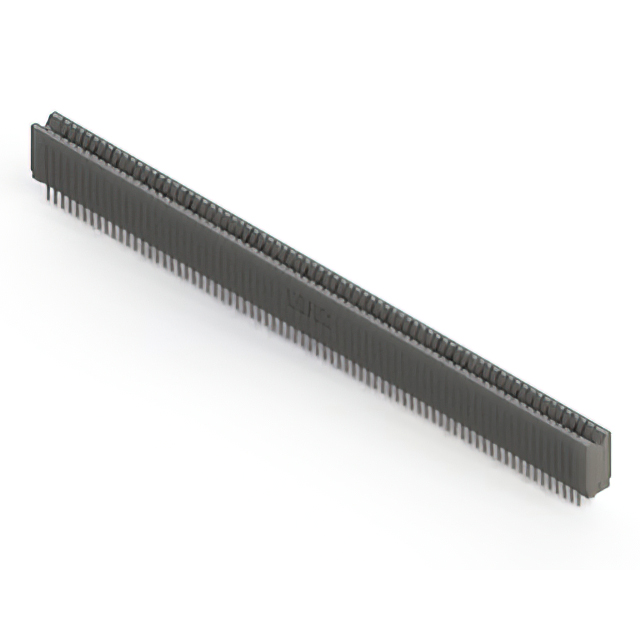

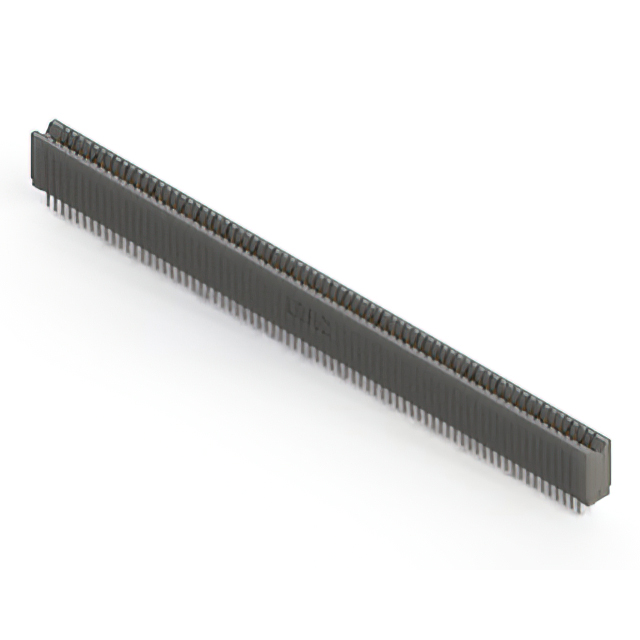

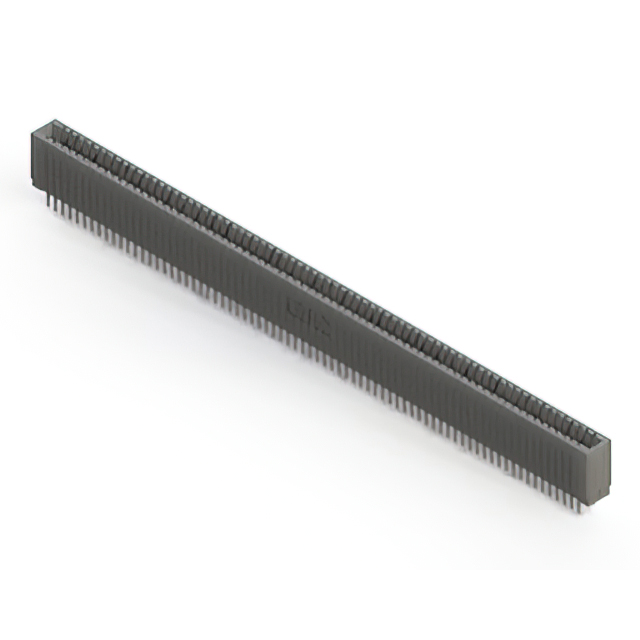

CONN EDGE DUAL FML 148POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Read Out | Number of Positions/Bay/Row | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Gender | Color | Contact Type | Number of Rows [custom] | Mounting Type | Card Type | Contact Finish | Card Thickness [Max] | Card Thickness [Min] | Number of Positions [custom] | Pitch | Pitch | Contact Material | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 74 | -40 C | 105 ░C | Press-Fit | Female | Black | Cantilever | 2 | Through Hole | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 148 | 0.1 " | 2.54 mm | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 74 | -40 C | 105 ░C | Press-Fit | Female | Black | Cantilever | 2 | Through Hole | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 148 | 0.1 " | 2.54 mm | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 74 | -40 C | 105 ░C | Press-Fit | Female | Black | Cantilever | 2 | Through Hole | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 148 | 0.1 " | 2.54 mm | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 74 | -40 C | 105 ░C | Press-Fit | Female | Black | Cantilever Make Before Break | 2 | Through Hole | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 148 | 0.1 " | 2.54 mm | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 74 | -40 C | 105 ░C | Press-Fit | Female | Black | Cantilever | 2 | Through Hole | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 148 | 0.1 " | 2.54 mm | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 74 | -40 C | 105 ░C | Press-Fit Wire Wrap | Female | Black | Cantilever | 2 | Through Hole | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 148 | 0.1 " | 2.54 mm | Copper Alloy | 30 Áin | 0.76 Ám |
 EDAC Inc. | 2 | Polyester Thermoplastic | Dual | 74 | -40 C | 105 ░C | Press-Fit | Female | Black | Cantilever | 2 | Through Hole | Non Specified - Dual Edge | Gold | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 148 | 0.1 " | 2.54 mm | Copper Alloy | 30 Áin | 0.76 Ám |
