046113 Series

Manufacturer: Molex

Catalog

CONN RCPT LPHPOWER 28POS PCB

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Features	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Contact Finish	Pitch [x]	Pitch [x]	Color	Mounting Type	Connector Type	Material Flammability Rating	Number of Rows	Contact Layout, Typical
Molex 0461130283	Press-Fit	0.76 Ám	30 Áin	All	Guide Pin	28	-40 °C	105 ░C	LPHPower	Gold	0.05 in	1.27 mm	Black	Through Hole	Receptacle Outer Shroud Contacts	UL94 V-0	2
Molex 0461130403	Press-Fit	0.76 Ám	30 Áin	All	Guide Pin	40	-40 °C	105 ░C	LPHPower	Gold	0.05 in	1.27 mm	Black	Through Hole	Receptacle Outer Shroud Contacts	UL94 V-0	2
Molex 0461130363	Press-Fit	0.76 Ám	30 Áin	All	Guide Pin	36	-40 °C	105 ░C	LPHPower	Gold	0.05 in	1.27 mm	Black	Through Hole	Receptacle Outer Shroud Contacts	UL94 V-0	2
Molex 0461130361	Press-Fit	0.76 Ám	30 Áin	All		36	-40 °C	105 ░C	LPHPower	Gold	0.05 in	1.27 mm	Black	Through Hole	Receptacle Outer Shroud Contacts	UL94 V-0	2
Molex 0461130121	Press-Fit	0.76 Ám	30 Áin	All		12	-40 °C	105 ░C	LPHPower	Gold	0.05 in	1.27 mm	Black	Through Hole	Receptacle Outer Shroud Contacts	UL94 V-0	2	12 Power
Molex 0461130401	Press-Fit	0.76 Ám	30 Áin	All		40	-40 °C	105 ░C	LPHPower	Gold	0.05 in	1.27 mm	Black	Through Hole	Receptacle Outer Shroud Contacts	UL94 V-0	2

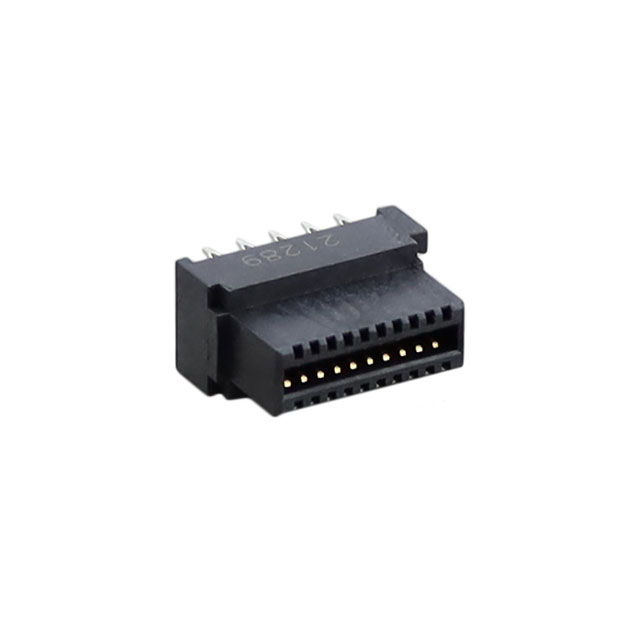

Molex 0461130201	Press-Fit	0.76 Ám	30 Áin	All		20	-40 °C	105 ░C	LPHPower	Gold	0.05 in	1.27 mm	Black	Through Hole	Receptacle Outer Shroud Contacts	UL94 V-0	2

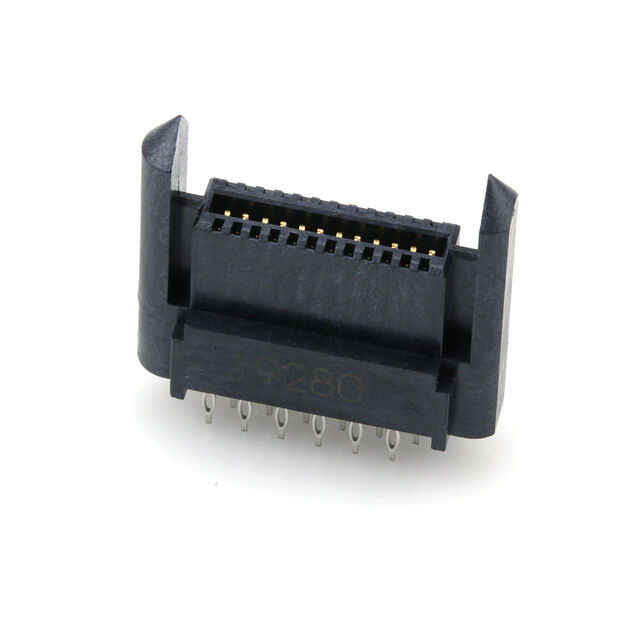

Molex 0461130243	Press-Fit	0.76 Ám	30 Áin	All	Guide Pin	24	-40 °C	105 ░C	LPHPower	Gold	0.05 in	1.27 mm	Black	Through Hole	Receptacle Outer Shroud Contacts	UL94 V-0	2
