NHD-0416 Series

Catalog

LCD MOD 64DIG 16X4 TRANS YLW/GRN

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dot Size [y]	Dot Size [x]	Display Mode	Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Controller Type	Display Type	Number of Characters	Background Color	Display Format [y]	Display Format [x]	Viewing Area [y]	Viewing Area [x]	Character Format [x]	Character Format [y]	Text Color	Outline L x W x H [x]	Outline L x W x H [y]	Outline L x W x H [z]	Backlight

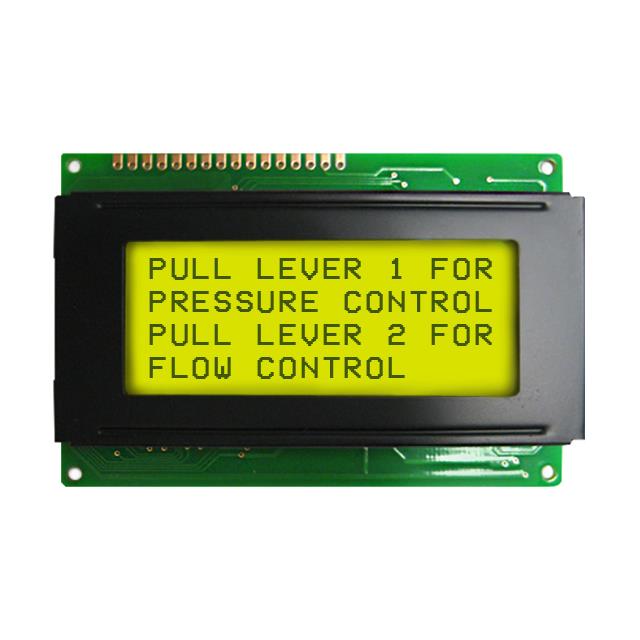

Newhaven Display Intl NHD-0416BZ-FL-YBW	-20 ░C	70 °C	0.55 mm	0.55 mm	Transflective	Parallel	5.5 V	4.7 V	SPLC780D ST7066U	STN - Super-Twisted Nematic	64	Green	4	16	25.2 mm	61.8 mm	5 Dots	8 Dots	Blue	87 mm	60 mm	14.5 mm

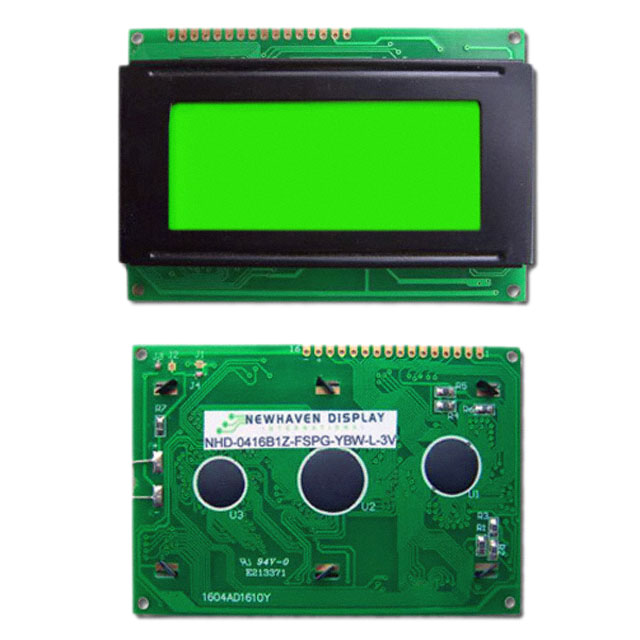

Newhaven Display Intl NHD-0416B1Z-FSPG-YBW-L-3V	-20 ░C	70 °C	0.55 mm	0.55 mm	Transflective	Parallel	3.4 V	3.2 V		STN - Super-Twisted Nematic	64	Green	4	16	25.2 mm	61.8 mm	5 Dots	8 Dots		87 mm	60 mm	14 mm	LED - Green
Newhaven Display Intl NHD-0416BZ-FL-GBW	-20 ░C	70 °C	0.55 mm	0.55 mm	Transflective	Parallel	5.5 V	4.7 V	SPLC780D ST7066U	STN - Super-Twisted Nematic	64	Green	4	16	25.2 mm	61.8 mm	5 Dots	8 Dots	Blue	87 mm	60 mm	14.5 mm

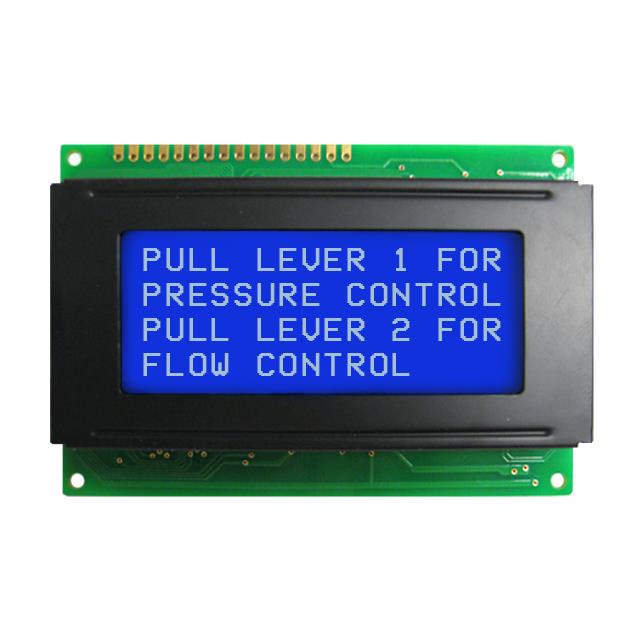

Newhaven Display Intl NHD-0416BZ-NSW-BBW	-20 ░C	70 °C	0.55 mm	0.55 mm	Transmissive	Parallel	5.5 V	4.7 V	SPLC780D ST7066U	STN - Super-Twisted Nematic	64	Blue	4	16	25.2 mm	61.8 mm	5 Dots	8 Dots	White	87 mm	60 mm	14.5 mm	LED - White
