BLR-I Series

Manufacturer: OptiFuse

Catalog

REG FUSE BLOCK,6 POLE LED&GROUND

Part	Current Rating (Amps)	For Use With/Related Products	Fuse Size [y]	Fuse Size [x]	Fuse Size [x]	Fuse Size [y]	Contact Material	Fuseholder Type	Orientation	Termination Style	Mounting Type	Voltage	Number of Circuits	Fuse Type	Contact Finish

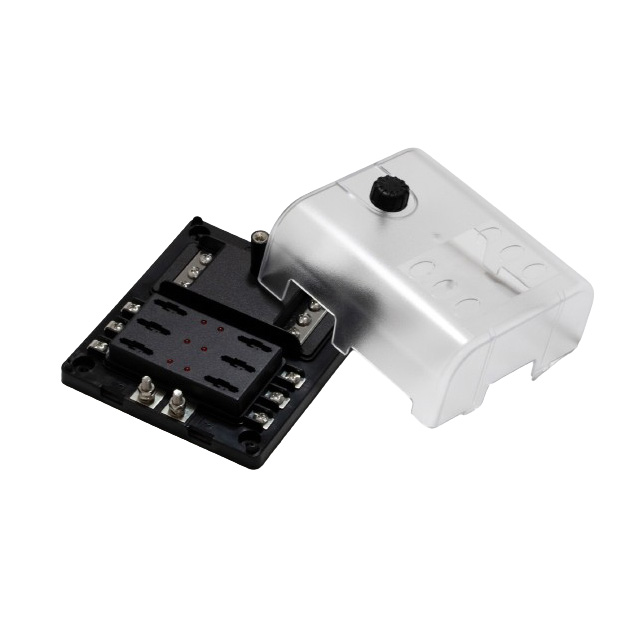

OptiFuse BLR-I-906-G	100 A	ANR APR	0.2 "	0.75 in	19.1 mm	5.1 mm	Copper	Block	Horizontal Vertical	Screw Terminal	Chassis Mount	32 V	6	Blade

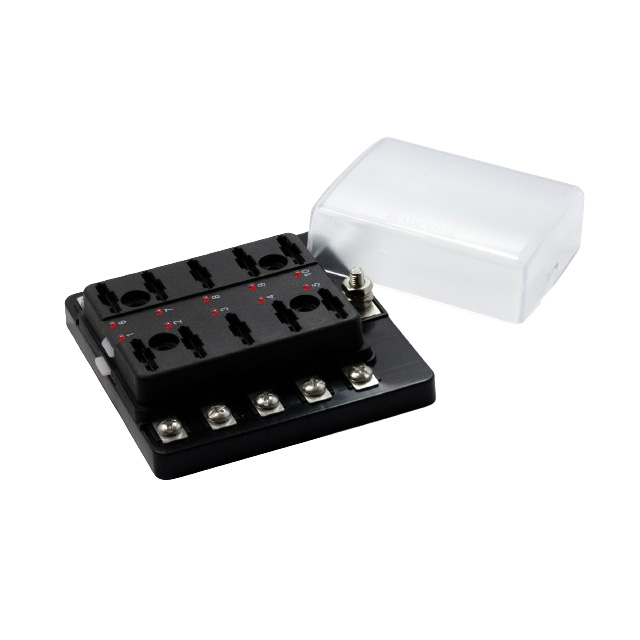

OptiFuse BLR-I-510	30 A	ANR APR	0.2 "	0.75 in	19.1 mm	5.1 mm	Copper	Block	Horizontal Vertical	Screw Terminal	Chassis Mount	32 V	10	Blade	Tin

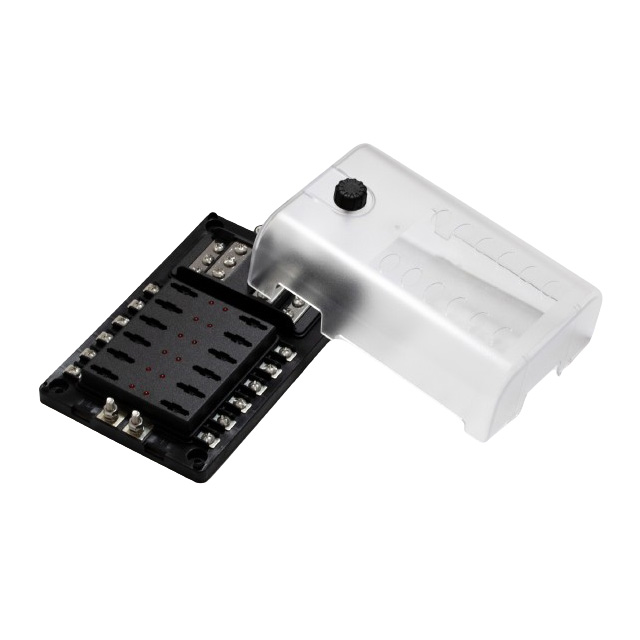

OptiFuse BLR-I-912-G	100 A	ANR APR	0.2 "	0.75 in	19.1 mm	5.1 mm	Copper	Block	Horizontal Vertical	Screw Terminal	Chassis Mount	32 V	12	Blade

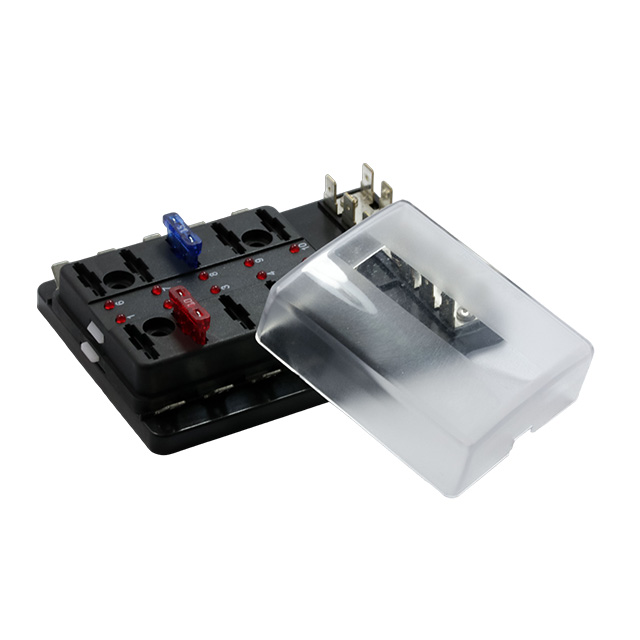

OptiFuse BLR-I-310-G	100 A	ANR APR	0.2 "	0.75 in	19.1 mm	5.1 mm	Copper	Block	Horizontal Vertical	Quick Connect - 0.250" (6.3mm)	Chassis Mount	32 V	10	Blade	Tin

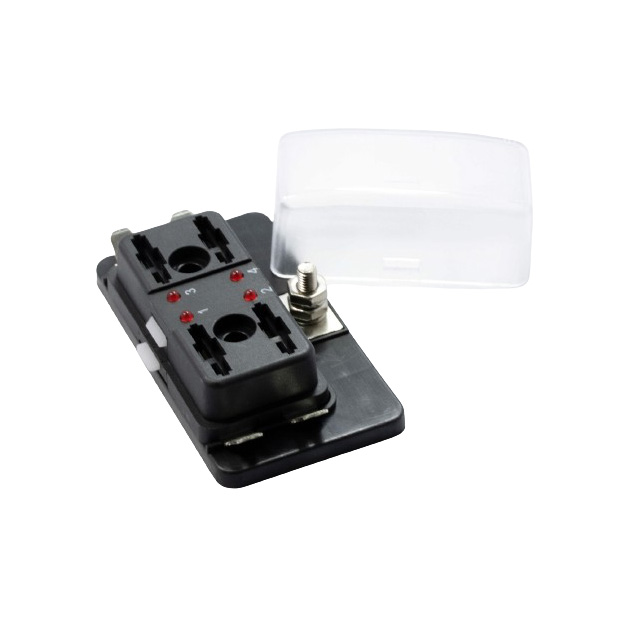

OptiFuse BLR-I-304	100 A	ANR APR	0.2 "	0.75 in	19.1 mm	5.1 mm	Copper	Block	Horizontal Vertical	Quick Connect - 0.250" (6.3mm)	Chassis Mount	32 V	4	Blade	Tin

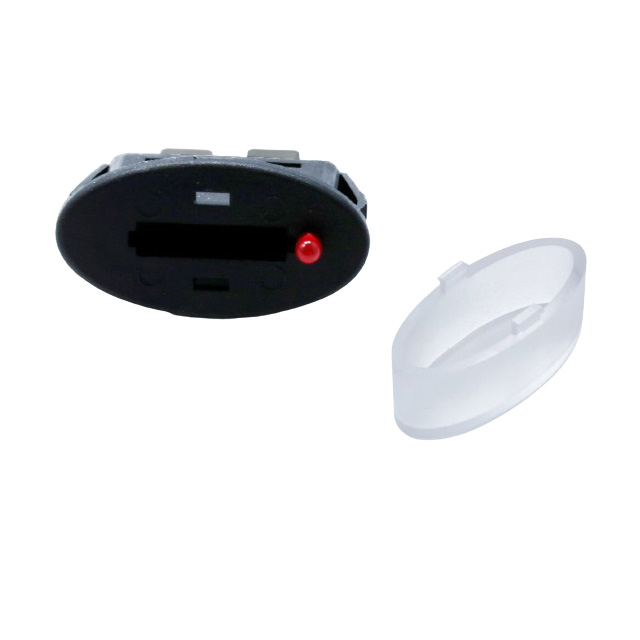

OptiFuse BLR-I-301	30 A	ANR APR	0.2 "	0.75 in	19.1 mm	5.1 mm	Brass	Block	Horizontal Vertical	Quick Connect - 0.250" (6.3mm)	Chassis Mount	24 V	1	Blade	Tin

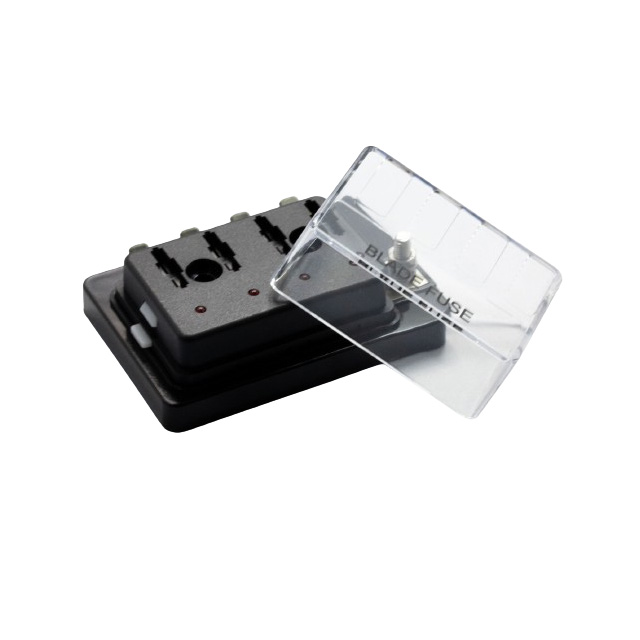

OptiFuse BLR-I-604	100 A	ANR APR	0.2 "	0.75 in	19.1 mm	5.1 mm	Copper	Block	Horizontal Vertical	Quick Connect - 0.250" (6.3mm)	Chassis Mount	32 V	4	Blade	Tin

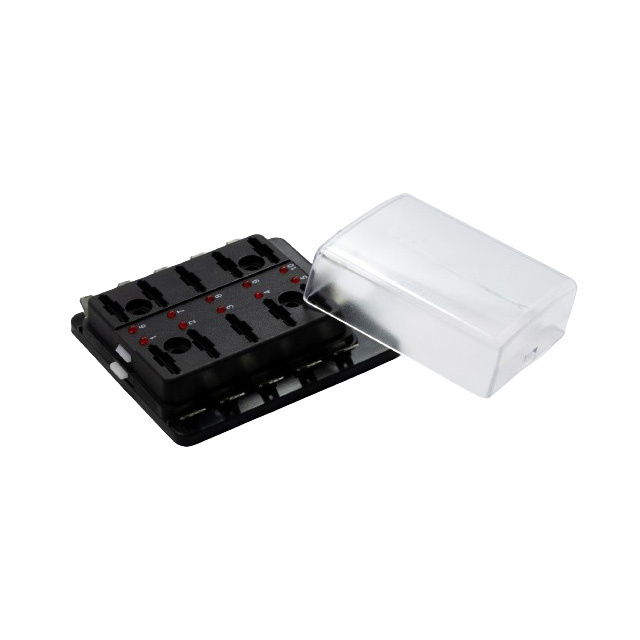

OptiFuse BLR-I-310	100 A	ANR APR	0.2 "	0.75 in	19.1 mm	5.1 mm	Copper	Block	Horizontal Vertical	Quick Connect - 0.250" (6.3mm)	Chassis Mount	32 V	10	Blade	Tin

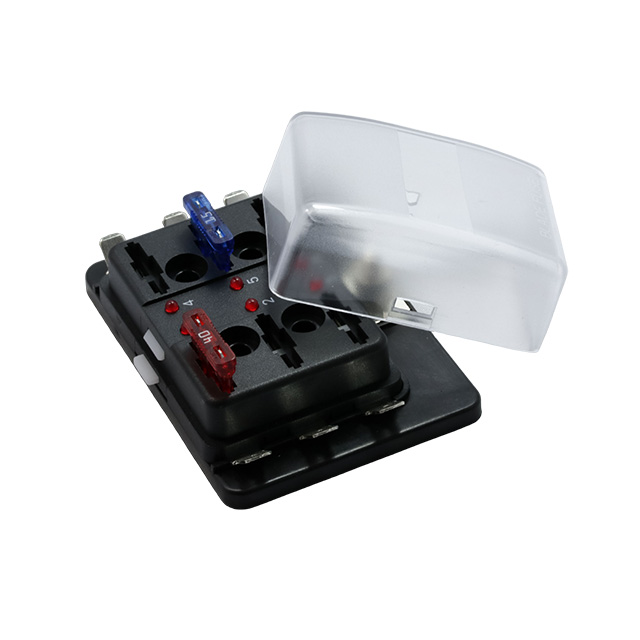

OptiFuse BLR-I-306	100 A	ANR APR	0.2 "	0.75 in	19.1 mm	5.1 mm	Copper	Block	Horizontal Vertical	Quick Connect - 0.250" (6.3mm)	Chassis Mount	32 V	6	Blade	Tin
