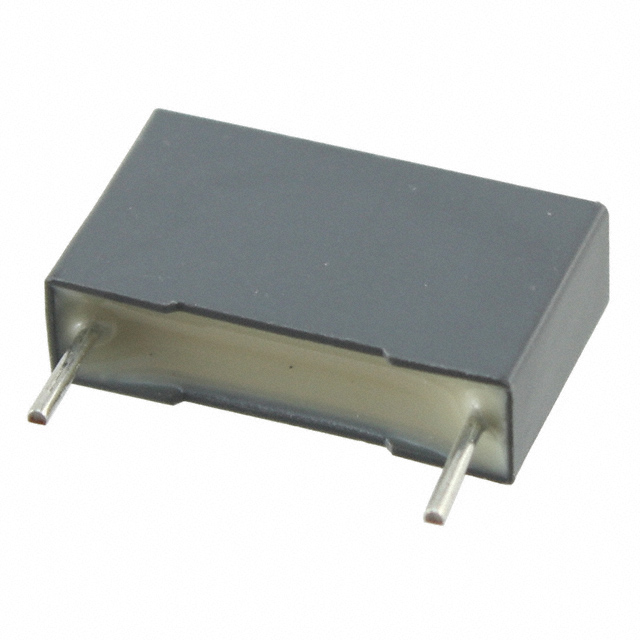

R73TI Series

Manufacturer: KEMET

Catalog

CAP FILM 2200PF 10% 1.6KVDC RAD

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lead Spacing	Lead Spacing	Voltage Rating - DC	Voltage Rating - DC	Termination	Height - Seated (Max) [Max]	Height - Seated (Max)	Ratings	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Tolerance	Dielectric Material	Voltage Rating - AC	Capacitance	Height - Seated (Max) [Max]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R73TI1220SE00K	0.236 "	6 mm	0.709 in	18 mm	15 mm	0.591 in	1.6 kV	1600 V	PC Pins	0.476 "	12.1 mm	AEC-Q200	Radial	-55 C	105 ░C	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	10 %	Polypropylene (PP) Metallized	450 V	2200 pF
KEMET R73TI11504000J	0.197 "		0.709 in	18 mm	15 mm	0.591 in	1.6 kV	1600 V	PC Pins	0.437 in		AEC-Q200	Radial	-55 C	105 ░C	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	5 %	Polypropylene (PP) Metallized	450 V	1500 pF	11.1 mm	5 mm
KEMET R73TI11004000J	0.197 "		0.709 in	18 mm	15 mm	0.591 in	1.6 kV	1600 V	PC Pins	0.437 in		AEC-Q200	Radial	-55 C	105 ░C	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	5 %	Polypropylene (PP) Metallized	450 V	0.001 µF	11.1 mm	5 mm
KEMET R73TI1100SE00J	0.197 "		0.709 in	18 mm	15 mm	0.591 in	1.6 kV	1600 V	PC Pins	0.437 in		AEC-Q200	Radial	-55 C	105 ░C	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	5 %	Polypropylene (PP) Metallized	450 V	0.001 µF	11.1 mm	5 mm
KEMET R73TI1100SE00K	0.197 "		0.709 in	18 mm	15 mm	0.591 in	1.6 kV	1600 V	PC Pins			AEC-Q200	Radial	-55 C	105 ░C	Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	10 %	Polypropylene (PP) Metallized	450 V	0.001 µF		5 mm	11 mm	0.433 in
KEMET R73TI1330SE00J	0.295 in	7.5 mm	0.709 in	18 mm	15 mm	0.591 in	1.6 kV	1600 V	PC Pins			AEC-Q200	Radial	-55 C	105 ░C	DC Filtering DC Link DV/DT High Frequency High Pulse Switching	Through Hole	5 %	Polypropylene (PP) Metallized	450 V	0.0033 µF
