Power Inductors - SMD 10uH 1.2A 1.2mm 20% SMT
Power Inductors - SMD 10uH 1.2A 1.2mm 20% SMT
| Part | Inductance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Shielding | Current - Saturation (Isat) | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) | Inductance Frequency - Test | Package / Case | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

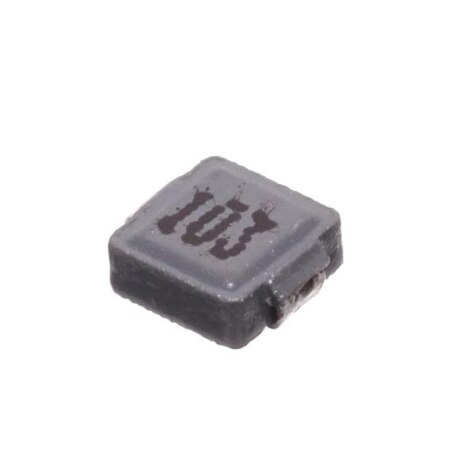

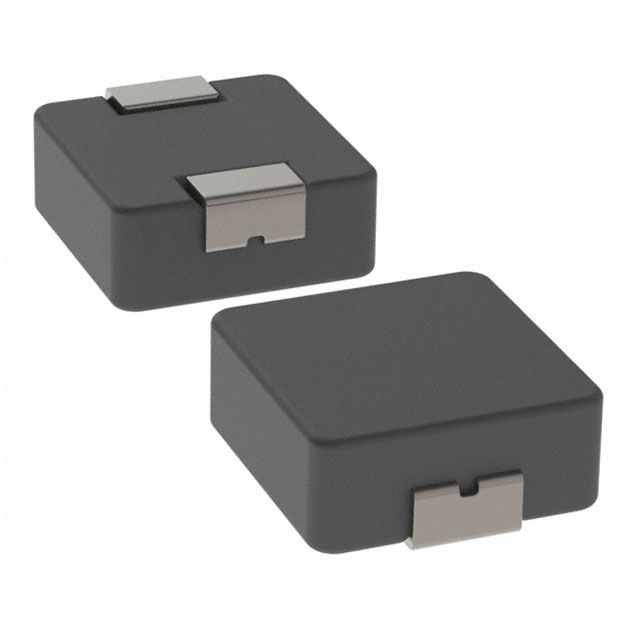

 Pulse Electronics | 10 µH | 0.138 in | 0.126 in | 3.5 mm | 3.2 mm | Unshielded | 1.6 A | Surface Mount | 125 °C | -40 C | 20 % | 1.2 A | 0.059 " | 1.5 mm | 100 kHz | Nonstandard | Molded |
