WR9ME500 Series

Catalog

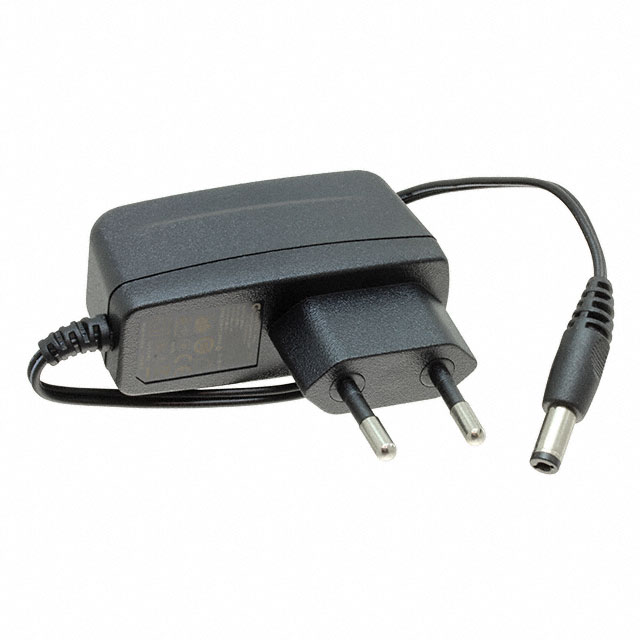

AC/DC WALL MOUNT ADAPTER 12V 6W

Part	Standard Number	Voltage - Output	Voltage - Input [Max]	Voltage - Input [Min]	Efficiency	Current - Output (Max) [Max]	Input Type	Cord Length	Cord Length	Input Connector	Applications	No Load Power Consumption	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Output Connector [diameter]	Output Connector	Output Connector [x]	Approval Agency	Region Utilized	Polarization	Form	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
GlobTek, Inc. WR9ME500LCP-F(R6B)	60950-1	12 V	264 VAC	90 VAC	Level VI	500 mA	Fixed Blade	60.2 in	1.53 m	CEE 7/16	ITE (Commercial)	75 mW	40 °C	0 °C	6 W	2.5 mm 5.5 mm	Barrel Plug	11 mm	CB CE EAC LPS UkrSEPRO	Europe	Positive Center	Wall Mount	71.2 mm	0.98 in	66 mm	2.6 in	2.8 in	25 mm
GlobTek, Inc. WR9ME500CCP-F(R6B)	60950-1	12 V	264 VAC	90 VAC	Level VI	500 mA	Fixed Blade	59 in	1.5 m	CEE 7/16	ITE (Commercial)	75 mW	40 °C	0 °C	6 W	2.1 mm 5.5 mm	Barrel Plug	11 mm	CB CE EAC LPS UkrSEPRO	Europe	Positive Center	Wall Mount	71.2 mm	0.98 in	66 mm	2.6 in	2.8 in	25 mm
