DB1C Series

Catalog

SWITCH SNAP ACTION SPDT 5A 125V

Part	Operating Position	Operating Position	Voltage Rating - DC	Differential Travel	Differential Travel	Actuator Type	Overtravel [custom]	Overtravel [custom]	Voltage Rating - AC	Termination Style	Ingress Protection	Electrical Life	Mechanical Life	Pretravel	Pretravel	Switch Function	Circuit	Operating Force	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Pretravel
ZF Electronics DB1C-A1MC	0.492 "	12.5 mm	48 V	1.4 mm	0.055 in	Lever Straight	0.158 in	4 mm	125 V	Solder Lug	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	10 mm	0.394 in	On-Mom	SPDT	22 gf	1 A 5 A	120 °C	-40 C	Chassis Mount
ZF Electronics DB1C-A1RC	0.638 in	16.2 mm	48 V	0.6 mm	0.025 in	Lever Roller	0.079 "	2 mm	125 V	Solder Lug	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	0.178 in		On-Mom	SPDT	55 gf	1 A 5 A	120 °C	-40 C	Chassis Mount	4.5 mm

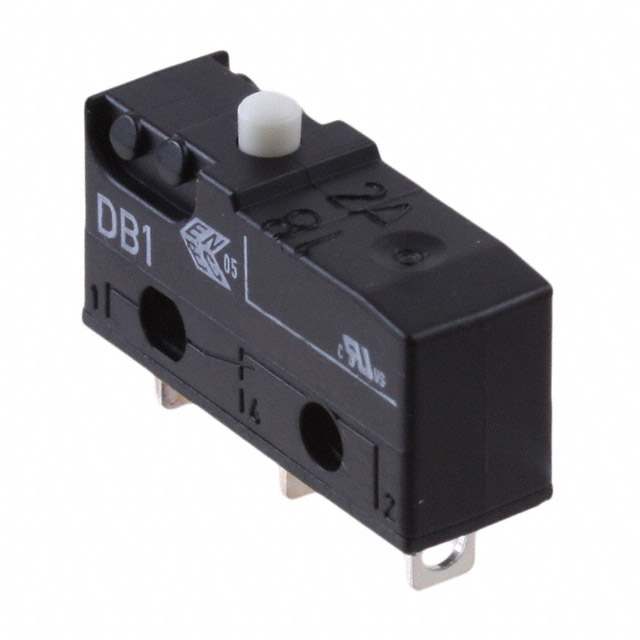

ZF Electronics DB1C-A1AA	0.33 in	8.4 mm	48 V	0.1 mm	0.004 in	Round (Pin Plunger)	0.025 in	0.6 mm	125 V	Solder Lug	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	1 mm	0.04 in	On-Mom	SPDT	150 gf	1 A 5 A	120 °C	-40 C	Chassis Mount
ZF Electronics DB1C-B1LC	0.437 "	11.1 mm	48 V	0.6 mm	0.025 in	Lever Straight	0.079 " 0.081 "	2 mm 2.05 mm	125 V	Quick Connect - 0.110" (2.8mm)	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	0.178 in		On-Mom	SPDT	50 gf	1 A 5 A	120 °C	-40 C	Chassis Mount	4.5 mm
ZF Electronics DB1CB1AA	0.33 in	8.4 mm	48 V	0.1 mm	0.004 in	Round (Pin Plunger)	0.025 in	0.6 mm	125 V	Quick Connect - 0.110" (2.8mm)	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	1 mm	0.04 in	On-Mom	SPDT	150 gf	1 A 5 A	120 °C	-40 C	Chassis Mount
ZF Electronics DB1C-A1RB	0.622 in	15.8 mm	48 V	0.5 mm	0.02 in	Lever Roller	0.079 "	2 mm	125 V	Solder Lug	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	4 mm	0.157 in	On-Mom	SPDT	65 gf	1 A 5 A	120 °C	-40 C	Chassis Mount
ZF Electronics DB1CB1LB			48 V	0.5 mm	0.02 in	Lever Straight	0.079 "	2 mm	125 V	Quick Connect - 0.110" (2.8mm)	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	4 mm	0.157 in	On-Mom	SPDT	60 gf	1 A 5 A	120 °C	-40 C	Chassis Mount

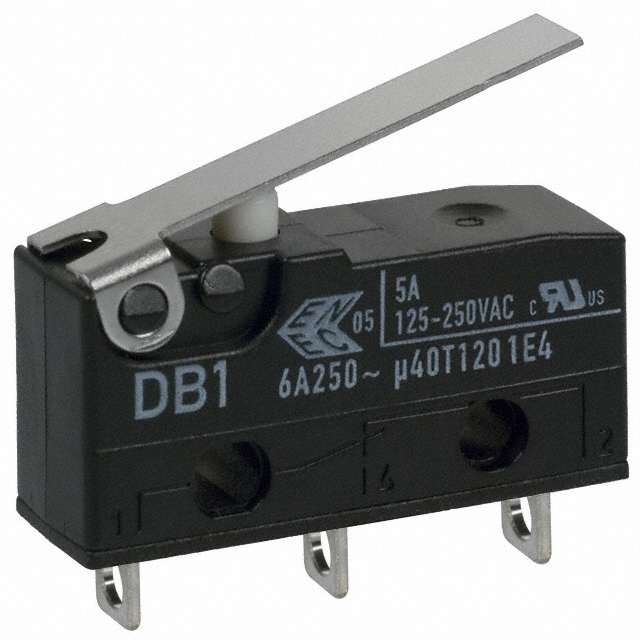

ZF Electronics DB1C-A1LB			48 V	0.5 mm	0.02 in	Lever Straight	0.079 "	2 mm	125 V	Solder Lug	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	4 mm	0.157 in	On-Mom	SPDT	60 gf	1 A 5 A	120 °C	-40 C	Chassis Mount

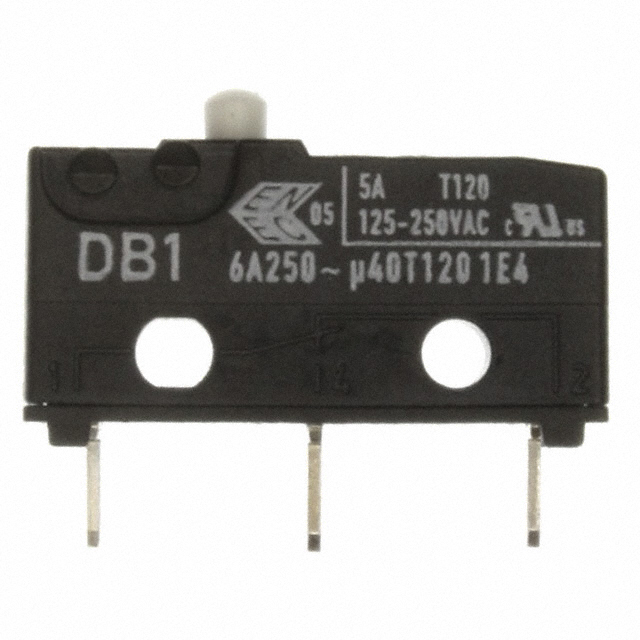

ZF Electronics DB1C-C1AA	0.33 in	8.4 mm	48 V	0.1 mm	0.004 in	Round (Pin Plunger)	0.025 in	0.6 mm	125 V	PC Pin	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	1 mm	0.04 in	On-Mom	SPDT	150 gf	1 A 5 A	120 °C	-40 C	Through Hole
ZF Electronics DB1C-A1LC	0.437 "	11.1 mm	48 V	0.6 mm	0.025 in	Lever Straight	0.079 "	2 mm	125 V	Solder Lug	IP50 - Dust Protected	6000 Cycles	15000000 Cycles	0.178 in		On-Mom	SPDT	50 gf	1 A 5 A	120 °C	-40 C	Chassis Mount	4.5 mm
