S22LG Series

Catalog

S22 EZ LIGHT - 22 MM - IP67; SIN

Part	Lens Size [diameter]	Ratings	Voltage [Max]	Voltage [Min]	Wavelength - Peak	Type	Lamp Color	Current	Lens Style	Ingress Protection	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Transparency	Termination Style	Millicandela Rating
BANNER ENGINEERING S22LGXXPQP	16 mm	DC	30 V	10 V	528 nm	LED	Green	25 mA	Round with Flat Top	IP67 IP69K
BANNER ENGINEERING S22LGRXN	16 mm	DC	30 V	10 V	528 nm 625 nm	LED	Green Red	25 mA	Round with Flat Top	IP67 IP69K
BANNER ENGINEERING S22LGRBPQ	16 mm	DC	30 V	10 V		LED	Blue Green Red	25 mA	Round with Flat Top	IP67 IP69K	625 nm	470 nm	528 nm

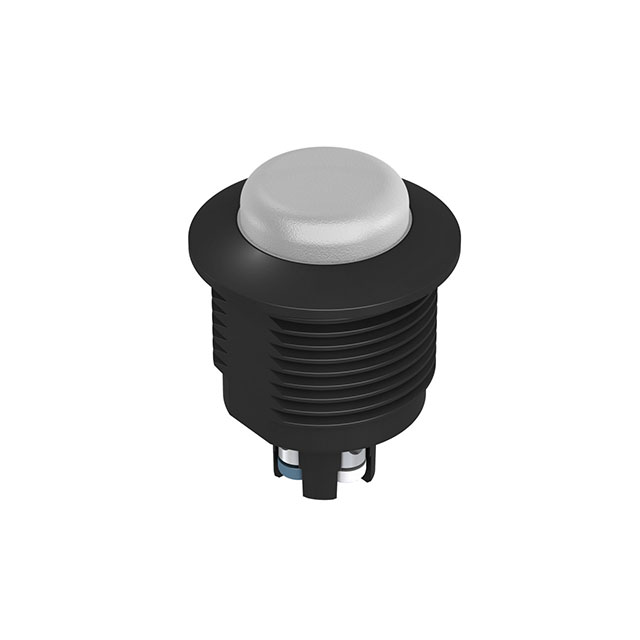

BANNER ENGINEERING S22LGRYPT		DC	30 V	10 V		LED	Green Red Yellow	25 mA	Round with Flat Top	IP67 IP69K NEMA 4X				0.8 mcd	1.1 mcd	4.1 mcd	Round	22 mm	0.866 in	Diffused	Screw Terminal

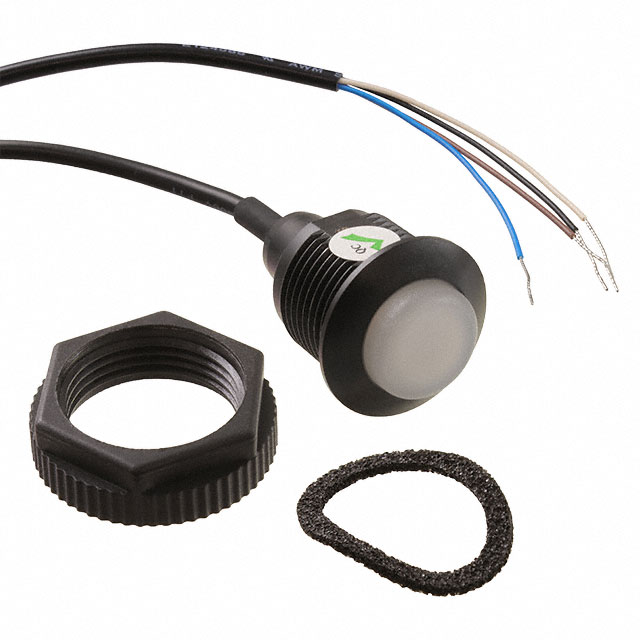

BANNER ENGINEERING S22LGRYP		DC	30 V	10 V		LED	Green Red Yellow	25 mA	Round with Flat Top	IP67 IP69K NEMA 4X				0.8 mcd	1.1 mcd	4.1 mcd	Round	22 mm	0.866 in	Diffused	Wire Leads

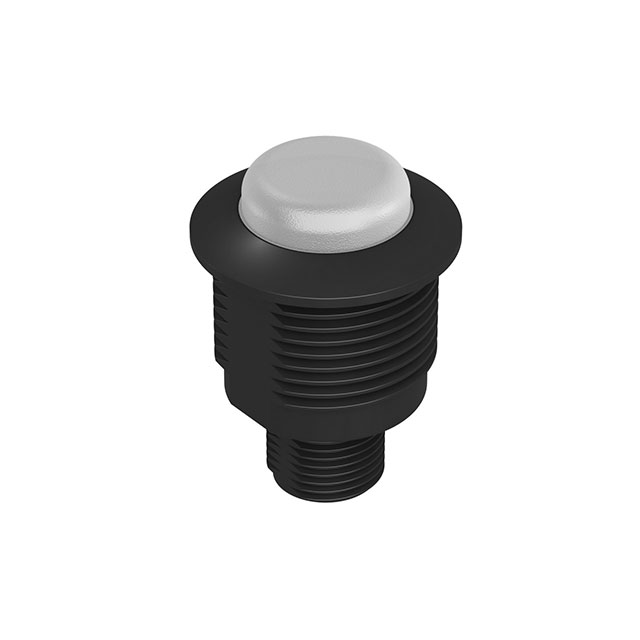

BANNER ENGINEERING S22LGRXPQ		DC	30 V	10 V		LED	Green Red	25 mA	Round with Flat Top	IP67 IP69K NEMA 4X					1.1 mcd	4.1 mcd	Round	22 mm	0.866 in	Diffused	Quick Connect
BANNER ENGINEERING S22LGRYPQ		DC	30 V	10 V		LED	Green Red Yellow	25 mA	Round with Flat Top	IP67 IP69K NEMA 4X				0.8 mcd	1.1 mcd	4.1 mcd	Round	22 mm	0.866 in	Diffused	Quick Connect
BANNER ENGINEERING S22LGXXPT	16 mm	DC	30 V	10 V	528 nm	LED	Green	25 mA	Round with Flat Top	IP67 IP69K											Screw Terminal
BANNER ENGINEERING S22LGXXP-803546	16 mm	DC	30 V	10 V	528 nm	LED	Green	25 mA	Round with Flat Top	IP67 IP69K

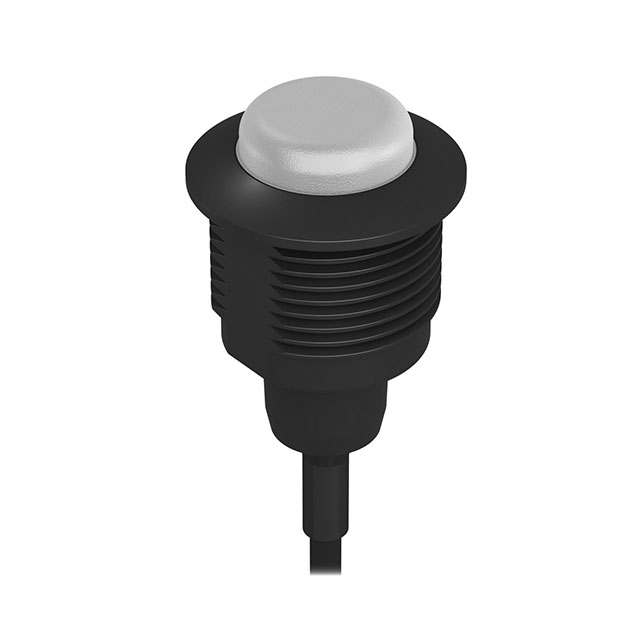

BANNER ENGINEERING S22LGXXP		DC	30 V	10 V		LED	Green	25 mA	Round with Flat Top	IP67 IP69K NEMA 4X							Round	22 mm	0.866 in	Diffused	Wire Leads	4.1 mcd
