PCM9211 Series

216kHz Digital Audio Interface Transceiver (DIX) with Stereo ADC and Routing

Catalog

216kHz Digital Audio Interface Transceiver (DIX) with Stereo ADC and Routing

Part	Supplied Contents	Type	Function	Utilized IC / Part	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Number of Channels [custom]	Supplier Device Package	Applications	Specifications [Min]	Specifications [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Package / Case

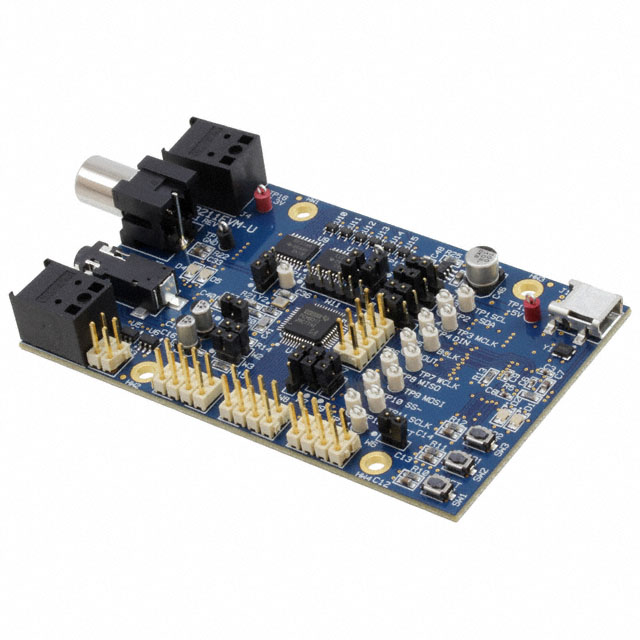

Texas Instruments PCM9211EVM-U	Board(s)	Audio	Audio Processing	PCM9211
Texas Instruments PCM9211PT			Audio Transceiver		I2C I2S SPI	85 °C	-40 °C	2	48-LQFP (7x7)	Consumer Audio Musical Instruments	7 kHz	216 kHz	3.6 V	2.9 V	Surface Mount	48-LQFP
Texas Instruments PCM9211PTR			Audio Transceiver		I2C I2S SPI	85 °C	-40 °C	2	48-LQFP (7x7)	Consumer Audio Musical Instruments	7 kHz	216 kHz	3.6 V	2.9 V	Surface Mount	48-LQFP

Catalog

216kHz Digital Audio Interface Transceiver (DIX) with Stereo ADC and Routing

Key Features

• Integrated DIX, ADC, and signal routing:Asynchronous operation (DIR, DIT, ADC)MUX and routing of PCM data:I2S, left-justified, right-justifiedMultipurpose input/output pinsDigital audio I/F receiver (DIR):24-bit, 216-kHz capable50-ps ultra-low jitterNon-PCM detection (IEC61937, DTS-CD/LD)12x S/PDIF input ports:2x coaxial S/PDIF inputs10x optical S/PDIF inputsDigital audio I/F transmitter (DIT):24-bit, 216-kHz capable24-bit data length48-bit channel status bufferSynchronous and asynchronous operationAnalog-to-digital converter (ADC):24-bit, 96-kHz capableDynamic range: 101 dB (fS= 96 kHz)Synchronous, asynchronous operationRouting function:Input: 3x PCM, 1x DIR, 1x ADCOutput: main out, aux out, DITMultichannel (8-ch) PCM routingOther function features:Power down (pin and register control)PCM port sampling frequency counterGPIO and GPOOSC for external crystal (24.576 MHz)SPI, I2C, or hardware control modesPower supply:3.3 V (2.9 V to 3.6 V) for DIX, all digital5 V (4.5 V to 5.5 V) for ADC analogOperating temperature: –40°C to +85°CPackage: 48-pin LQFPIntegrated DIX, ADC, and signal routing:Asynchronous operation (DIR, DIT, ADC)MUX and routing of PCM data:I2S, left-justified, right-justifiedMultipurpose input/output pinsDigital audio I/F receiver (DIR):24-bit, 216-kHz capable50-ps ultra-low jitterNon-PCM detection (IEC61937, DTS-CD/LD)12x S/PDIF input ports:2x coaxial S/PDIF inputs10x optical S/PDIF inputsDigital audio I/F transmitter (DIT):24-bit, 216-kHz capable24-bit data length48-bit channel status bufferSynchronous and asynchronous operationAnalog-to-digital converter (ADC):24-bit, 96-kHz capableDynamic range: 101 dB (fS= 96 kHz)Synchronous, asynchronous operationRouting function:Input: 3x PCM, 1x DIR, 1x ADCOutput: main out, aux out, DITMultichannel (8-ch) PCM routingOther function features:Power down (pin and register control)PCM port sampling frequency counterGPIO and GPOOSC for external crystal (24.576 MHz)SPI, I2C, or hardware control modesPower supply:3.3 V (2.9 V to 3.6 V) for DIX, all digital5 V (4.5 V to 5.5 V) for ADC analogOperating temperature: –40°C to +85°CPackage: 48-pin LQFP

Description

The PCM9211 is a complete analog and digital front-end for today’s multimedia players, sound bars, and recorders. The PCM9211 integrates a stereo ADC, S/PDIF transceiver with up to 12 multiplexed inputs, and 3x PCM inputs to allow other audio receivers to be multiplexed, along with the analog and S/PDIF signals to a digital signal processor (DSP). The PCM9211 is a complete analog and digital front-end for today’s multimedia players, sound bars, and recorders. The PCM9211 integrates a stereo ADC, S/PDIF transceiver with up to 12 multiplexed inputs, and 3x PCM inputs to allow other audio receivers to be multiplexed, along with the analog and S/PDIF signals to a digital signal processor (DSP).
