Headers & Wire Housings 3.96 PITCH W/B CONN.WAFER
Headers & Wire Housings 3.96 PITCH W/B CONN.WAFER
| Part | Style | Mounting Type | Insulation Color | Insulation Height | Insulation Height | Insulation Material | Contact Type | Number of Positions Loaded | Number of Positions | Number of Rows | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Termination | Material Flammability Rating | Connector Type | Pitch - Mating | Pitch - Mating | Contact Length - Mating | Contact Length - Mating | Contact Shape | Contact Material | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

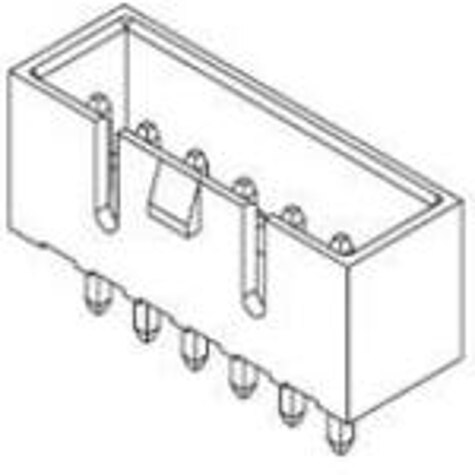

 Molex | Board to Cable/Wire | Through Hole | Natural | 10 mm | 0.394 " | Polyamide (PA66) Nylon 6/6 Glass Filled | Male Pin | All | 6 | 1 | Locking Ramp | 0.134 in | 3.4 mm | Tin | Solder | UL94 V-0 | Header | 0.156 in | 3.96 mm | 0.228 in | 5.8 mm | Square | Brass | Shrouded - 4 Wall |
 Molex | Board to Cable/Wire | Through Hole | Natural | 10 mm | 0.394 " | Polyamide (PA66) Nylon 6/6 Glass Filled | Male Pin | All | 1 | Locking Ramp | 0.134 in | 3.4 mm | Tin | Solder | UL94 V-0 | Header | 0.156 in | 3.96 mm | 0.228 in | 5.8 mm | Square | Brass | Shrouded - 4 Wall | |
Molex | Board to Cable/Wire | Through Hole | Natural | 10 mm | 0.394 " | Polyamide (PA66) Nylon 6/6 Glass Filled | Male Pin | All | 2 | 1 | Locking Ramp | 0.134 in | 3.4 mm | Tin | Solder | UL94 V-0 | Header | 0.156 in | 3.96 mm | 0.228 in | 5.8 mm | Square | Brass | Shrouded - 4 Wall |
Molex | Board to Cable/Wire | Through Hole | Natural | 10 mm | 0.394 " | Polyamide (PA66) Nylon 6/6 Glass Filled | Male Pin | All | 8 | 1 | Locking Ramp | 0.134 in | 3.4 mm | Tin | Solder | UL94 V-0 | Header | 0.156 in | 3.96 mm | 0.228 in | 5.8 mm | Square | Brass | Shrouded - 4 Wall |
Molex | Board to Cable/Wire | Through Hole | Natural | 10 mm | 0.394 " | Polyamide (PA66) Nylon 6/6 Glass Filled | Male Pin | All | 10 | 1 | Locking Ramp | 0.134 in | 3.4 mm | Tin | Solder | UL94 V-0 | Header | 0.156 in | 3.96 mm | 0.228 in | 5.8 mm | Square | Brass | Shrouded - 4 Wall |
 Molex | Board to Cable/Wire | Through Hole | Natural | 10 mm | 0.394 " | Polyamide (PA66) Nylon 6/6 Glass Filled | Male Pin | All | 4 | 1 | Locking Ramp | 0.134 in | 3.4 mm | Tin | Solder | UL94 V-0 | Header | 0.156 in | 3.96 mm | 0.228 in | 5.8 mm | Square | Brass | Shrouded - 4 Wall |
Molex | ||||||||||||||||||||||||
Molex |
