PM2120 Series
Manufacturer: Bourns Inc.
Beta
⌘K

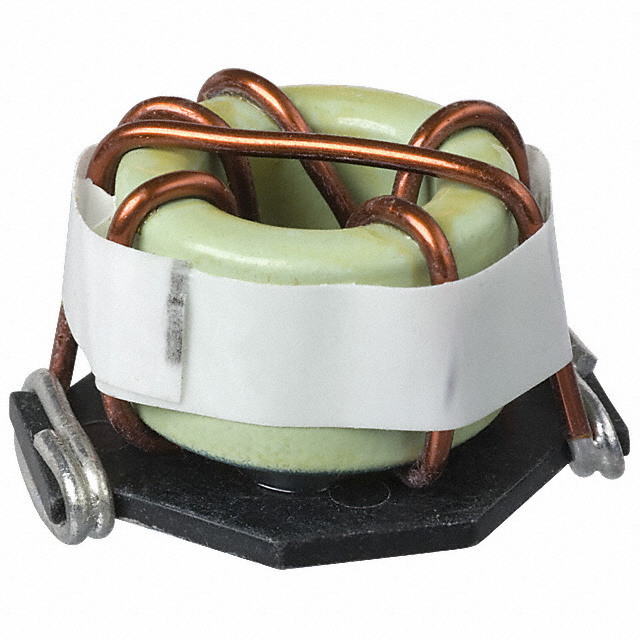

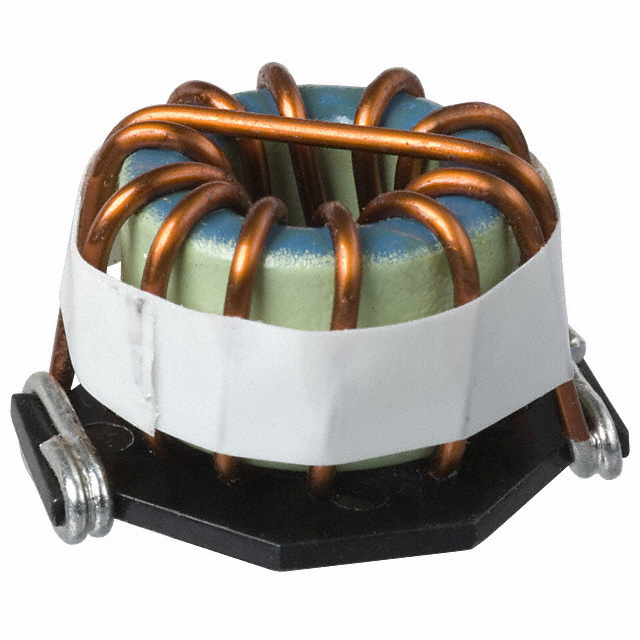

FIXED IND 120UH 5.8A 39 MOHM SMD
| Part | Shielding | Material - Core | Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Current Rating (Amps) | Tolerance | Package / Case | Inductance Frequency - Test | DC Resistance (DCR) | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | DC Resistance (DCR) [Max] | Inductance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | Unshielded | Iron | Toroidal | 0.87 in | 22.1 mm | 5.8 A | 10 % | Nonstandard | 1 kHz | 39 mOhm | -55 C | 105 ░C | 30.5 mm | 1 " | 25.4 mm | 1.201 in | Surface Mount | |||||
Bourns Inc. | Unshielded | Iron | Toroidal | 0.85 in | 21.59 mm | 2.9 A | 10 % | Nonstandard | 1 kHz | -55 C | 105 ░C | 30.5 mm | 1 " | 25.4 mm | 1.201 in | Surface Mount | 157 mOhm | 820 µH | ||||
Bourns Inc. | Unshielded | Iron | Toroidal | 3.6 A | 10 % | Nonstandard | 1 kHz | 100 mOhm | -55 C | 105 ░C | 30.5 mm | 1 " | 25.4 mm | 1.201 in | Surface Mount | 330 µH | 0.78 in | 19.81 mm | ||||
 Bourns Inc. | Unshielded | Iron | Toroidal | 20 % | Nonstandard | 1 kHz | 3 mOhm | -55 C | 105 ░C | 30.5 mm | 1 " | 25.4 mm | 1.201 in | Surface Mount | 2.2 µH | 0.82 in | 20.83 mm | |||||
Bourns Inc. | Unshielded | Iron | Toroidal | 11.8 A | 10 % | Nonstandard | 1 kHz | -55 C | 105 ░C | 30.5 mm | 1 " | 25.4 mm | 1.201 in | Surface Mount | 9 mOhm | 18 µH | 0.82 in | 20.83 mm | ||||
Bourns Inc. | Unshielded | Iron | Toroidal | 25.4 A | 20 % | Nonstandard | 1 kHz | -55 C | 105 ░C | 30.5 mm | 1 " | 25.4 mm | 1.201 in | Surface Mount | 2 mOhm | 1 µH | 0.82 in | 20.83 mm | ||||
Bourns Inc. | Unshielded | Iron | Toroidal | 6.7 A | 10 % | Nonstandard | 1 kHz | 29 mOhm | -55 C | 105 ░C | 30.5 mm | 1 " | 25.4 mm | 1.201 in | Surface Mount | 68 µH | 0.77 " | 19.56 mm | ||||
Bourns Inc. | Unshielded | Iron | Toroidal | 10.1 A | 10 % | Nonstandard | 1 kHz | -55 C | 105 ░C | 30.5 mm | 1 " | 25.4 mm | 1.201 in | Surface Mount | 13 mOhm | 33 µH | 0.82 in | 20.83 mm | ||||
Bourns Inc. | Unshielded | Iron | Toroidal | 9.6 A | 10 % | Nonstandard | 1 kHz | 14 mOhm | -55 C | 105 ░C | 30.5 mm | 1 " | 25.4 mm | 1.201 in | Surface Mount | 39 µH | 0.82 in | 20.83 mm | ||||
Bourns Inc. | Unshielded | Iron | Toroidal | 8.2 A | 10 % | Nonstandard | 1 kHz | 19 mOhm | -55 C | 105 ░C | 30.5 mm | 1 " | 25.4 mm | 1.201 in | Surface Mount | 47 µH | 0.79 " | 20.07 mm |
