9476-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

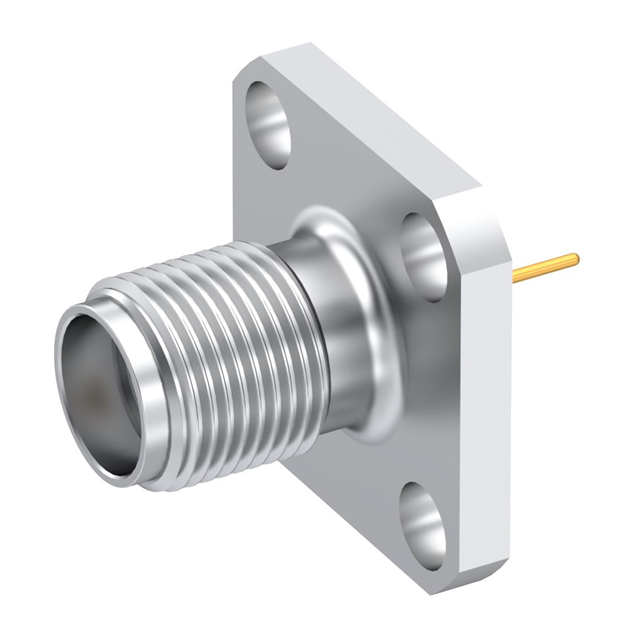

SMA / STRAIGHT JACK FEMALE PASSI
| Part | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Mounting Feature | Contact Termination | Number of Ports | Shield Termination | Center Contact Material | Mounting Type | Frequency - Max [Max] | Housing Color | Fastening Type | Impedance | Connector Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Stainless Steel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Flange | Solder Cup | 1 | Solder | Beryllium Copper | Panel Mount | 18 GHz | Silver | Threaded | 50 Ohms | Female Socket Jack | SMA |
