Hdt0 Series Series

Micro Mini Surface Mount Detect Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Micro Mini Surface Mount Detect Switch

Part	Voltage Rating - DC	Switch Function	Operating Position	Operating Position	Mounting Type	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Overtravel	Overtravel	Termination Style	Actuator Type	Current Rating (Amps)	Features	Electrical Life	Pretravel	Pretravel	Mechanical Life	Operating Position [custom]	Operating Position [custom]
Littelfuse/Commercial Vehicle Products HDT0204	5 V	Off-Mom	0.197 in	5 mm	Surface Mount	35 gf	85 °C	-40 °C	SPST-NO	0.045 in	1.1 mm	SMD (SMT) Tab	Angled Toggle (Detector)	1 mA	Board Guide	100000 Cycles	0.012 in	0.3 mm	100000 Cycles
Littelfuse/Commercial Vehicle Products HDT0104	5 V	Off-Mom	0.197 in	5 mm	Surface Mount	35 gf	85 °C	-40 °C	SPST-NO	0.045 in	1.1 mm	SMD (SMT) Tab	Angled Toggle (Detector)	1 mA		100000 Cycles	0.012 in	0.3 mm	100000 Cycles
Littelfuse/Commercial Vehicle Products HDT0001	5 V	Off-Mom	0.12 in	3.05 mm	Surface Mount	35 gf	85 °C	-40 °C	SPST-NO	0.039 in	1 mm	SMD (SMT) Tab	Angled Toggle (Detector)	1 mA	Board Guide	100000 Cycles	0.012 in	0.3 mm	100000 Cycles
Littelfuse/Commercial Vehicle Products HDT0004	5 V	Off-Mom			Surface Mount	35 gf	85 °C	-40 °C	SPST-NO	0.039 in	1 mm	SMD (SMT) Tab	Angled Toggle (Detector)	1 mA		100000 Cycles	0.012 in	0.3 mm	100000 Cycles	3.5 mm	0.138 in

Catalog

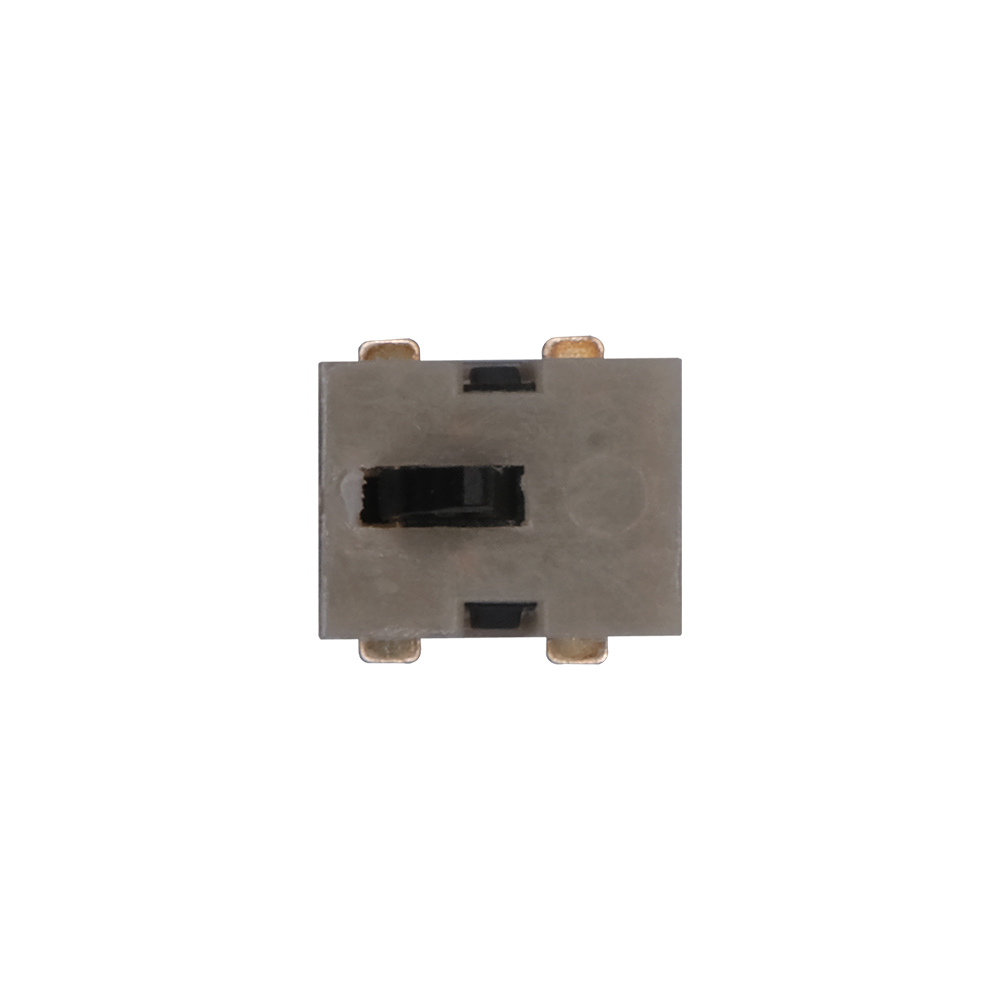

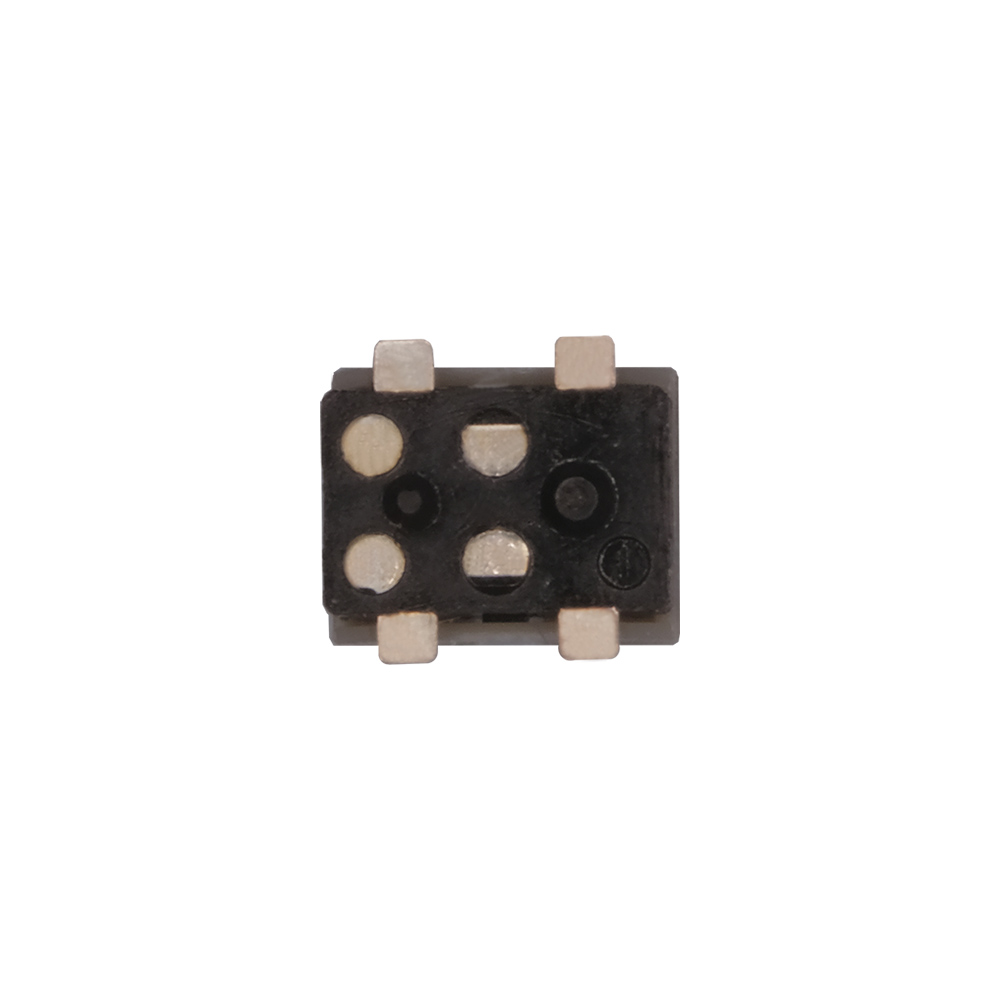

Micro Mini Surface Mount Detect Switch

Key Features

• Low profile package

• Design allows top or side actuation

• Low actuation force, 35 grams max.

Description

Designers of compact devices with high functionality requirements – such as consumer devices and medical devices – need switches that have a low profile and low actuation force. That’s where the HDT Series of micro mini surface mount detect switches from C&K come in. They’re designed to be quality, long-lasting switches that only allow a maximum actuation force of 35g – and are available with either top or side actuation, making it easy to incorporate the switch into your device design.
