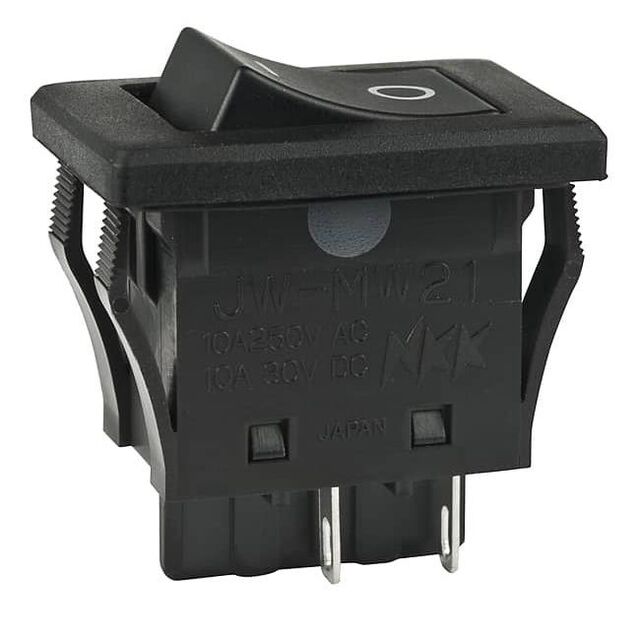

JWMW21 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER DPST 10A 125V
| Part | Mechanical Life | Electrical Life | Mounting Type | Actuator Type | Voltage Rating - DC | Circuit | Actuator Marking | Switch Function | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Ingress Protection | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - AC | Color - Actuator/Cap | Approval Agency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 25000 Steps | Panel Mount Snap-In | Concave (Curved) | 30 V | DPST | O - | On-Off | 10 A | 85 °C | -25 °C | Wire Leads | Dust Proof | 15.4 mm | 25 mm | 125 V | Black | CSA UL VDE | |
 NKK Switches | 25000 Steps | 25000 Steps | Panel Mount Snap-In | Concave (Curved) | 30 V | DPST | O I | On-Off | 10 A | 85 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight Waterproof | 15.4 mm | 25 mm | 125 V | Black | CSA UL VDE | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | Panel Mount Snap-In | Concave (Curved) | 30 V | DPST | O - | On-Off | 10 A | 85 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight Waterproof | 15.4 mm | 25 mm | 125 V | Black | CSA UL VDE | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | Panel Mount Snap-In | Concave (Curved) | 30 V | DPST | O - | On-Off | 10 A | 85 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight Waterproof | 15.4 mm | 25 mm | 125 V | Black | CSA UL VDE | Epoxy Sealed Terminals |
NKK Switches | 25000 Steps | 25000 Steps | Panel Mount Snap-In | Concave (Curved) | 30 V | DPST | O I | On-Off | 10 A | 85 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight Waterproof | 15.4 mm | 25 mm | 125 V | Black | CSA UL VDE | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | Panel Mount Snap-In | Concave (Curved) | 30 V | DPST | O - | On-Off | 10 A | 85 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight Waterproof | 15.4 mm | 25 mm | 125 V | Black | CSA UL VDE | |
NKK Switches | 25000 Steps | 25000 Steps | Panel Mount Snap-In | Concave (Curved) | 30 V | DPST | O I | On-Off | 10 A | 85 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight Waterproof | 15.4 mm | 25 mm | 125 V | Black | CSA UL VDE | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | Panel Mount Snap-In | Concave (Curved) | 30 V | DPST | O I | On-Off | 10 A | 85 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight Waterproof | 15.4 mm | 25 mm | 125 V | Red | CSA UL VDE | Epoxy Sealed Terminals |
 NKK Switches | 25000 Steps | 25000 Steps | Panel Mount Snap-In | Concave (Curved) | 30 V | DPDT | No Marking | On-Off | 10 A | 85 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight Waterproof | 15.4 mm | 25 mm | 125 V | Black | CSA UL VDE |
