10090099 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K
CONN D-SUB RCPT 25POS R/A SLDR
| Part | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Color | Number of Rows [custom] | Contact Type | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Features | Number of Positions | Termination | Contact Finish Thickness | Contact Finish | Flange Feature | Mounting Type | Material Flammability Rating | Backset Spacing | Backset Spacing | Connector Type | Shell Material, Finish | Current Rating (Amps) | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

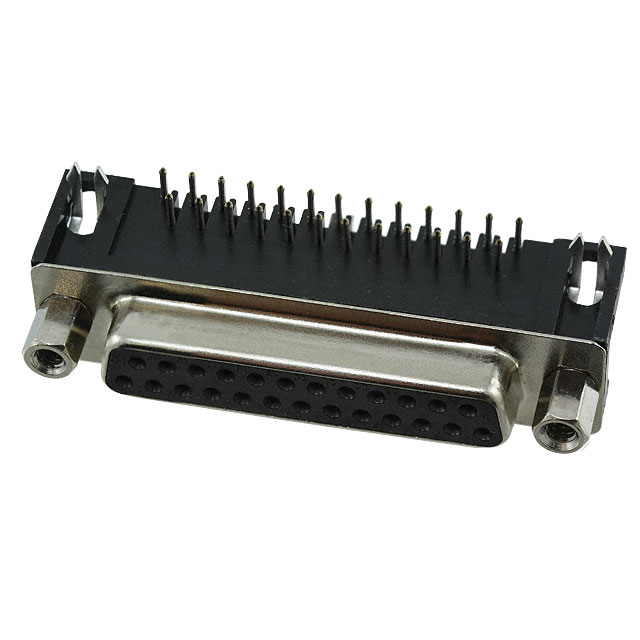

 Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Copper Alloy | Black | 2 | Signal | D-Sub | B DB | 3 | Board Lock Mounting Brackets | 25 | Solder | Flash | Gold | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | Receptacle Female Sockets | Steel Tin-Nickel Plated | 5 A | |||

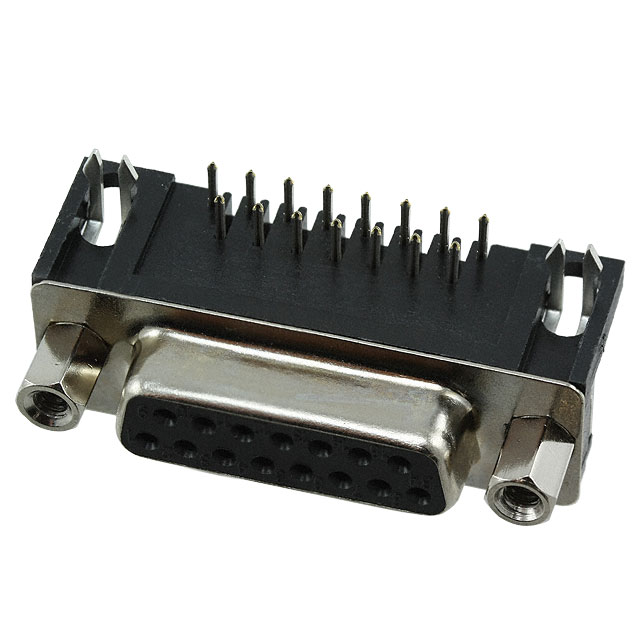

 Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Copper Alloy | Black | 2 | Signal | D-Sub | Board Lock Mounting Brackets | 15 | Solder | Flash | Gold | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | Receptacle Female Sockets | Steel Tin-Nickel Plated | 5 A | 2 | ||||
 Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Copper Alloy | Black | 2 | Signal | D-Sub | DC C | Board Lock Mounting Brackets | 37 | Solder | Flash | Gold | Board Side (4-40) | Board Edge Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | Receptacle Female Sockets | Steel Tin-Nickel Plated | 5 A | 4 | |||
 Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Copper Alloy | Black | 2 | Signal | D-Sub | Board Lock Mounting Brackets | 9 | Solder | Flash | Gold | Board Side (4-40) | Board Edge Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | Receptacle Female Sockets | Steel Tin-Nickel Plated | 5 A | 1 | DE E | |||

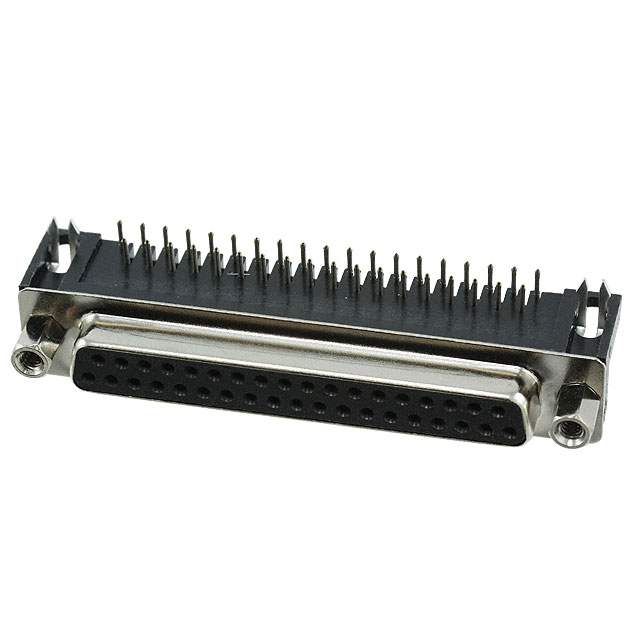

 Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Copper Alloy | Black | 2 | Signal | D-Sub | DC C | Board Lock Mounting Brackets | 37 | Solder | Flash | Gold | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | UL94 V-0 | 8.08 mm | 0.318 " | Receptacle Female Sockets | Steel Tin-Nickel Plated | 5 A | 4 | |||

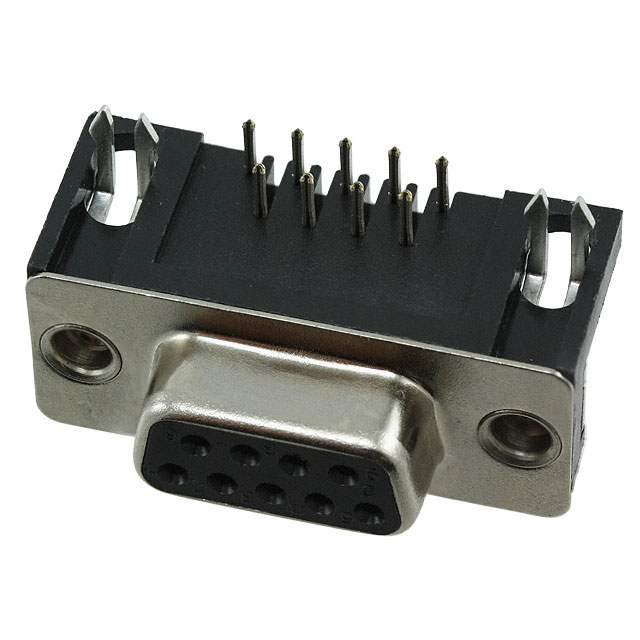

 Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Black | 2 | Signal | D-Sub | Board Lock Mounting Brackets | 9 | Solder | Flash | Gold | Board Side (M3) | Right Angle Through Hole | Receptacle Female Sockets | Steel Tin-Nickel Plated | 5 A | 1 | DE E |
