326805 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

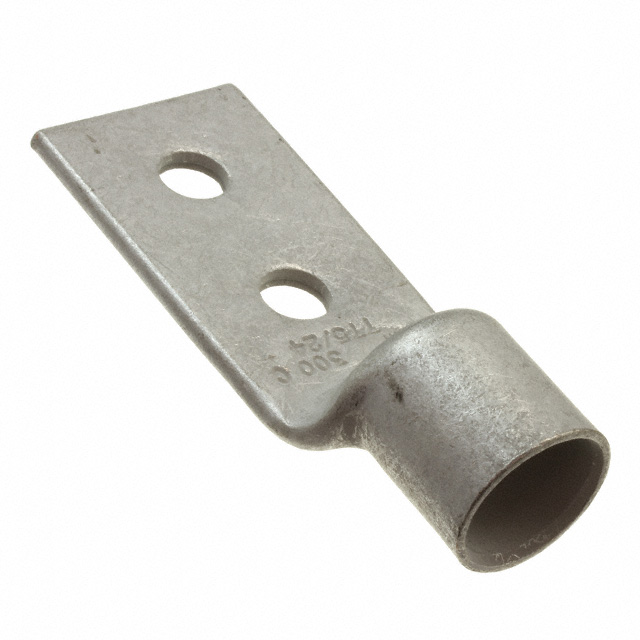

TERMINAL,AMPOWER 300MCM ROHS COMPLIANT: YES
| Part | Terminal Type | Insulation | Contact Material | Termination | Tab Thickness | Tab Thickness | Contact Finish | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Terminal Style | Mounting Type | Wire Gauge | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Rectangular Tongue | Non-Insulated | Copper | Barrel Crimp | 0.16 in | 4.06 mm | Tin | 24.16 mm | 0.951 in | 93.98 mm | 3.7 in | 3/8 Stud | 19.25 mm | 0.758 " | Two Stud Holes | Free Hanging (In-Line) | 300 MCM (kcmil) | 9.91 mm | 0.39 in |
