BFB0412 Series

Catalog

FAN BLOWER 42X18.5MM 12VDC WIRE

Part	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Lifetime @ Temp.	Current Rating (Amps)	Noise	Power (Watts)	Static Pressure	Static Pressure	Approval Agency	Termination	Bearing Type	Weight [custom]	Weight [custom]	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]	RPM	Operating Temperature [Max]	Operating Temperature [Min]	Width [x]	Fan Type	Width [y]	Size / Dimension [z]	Air Flow	Air Flow

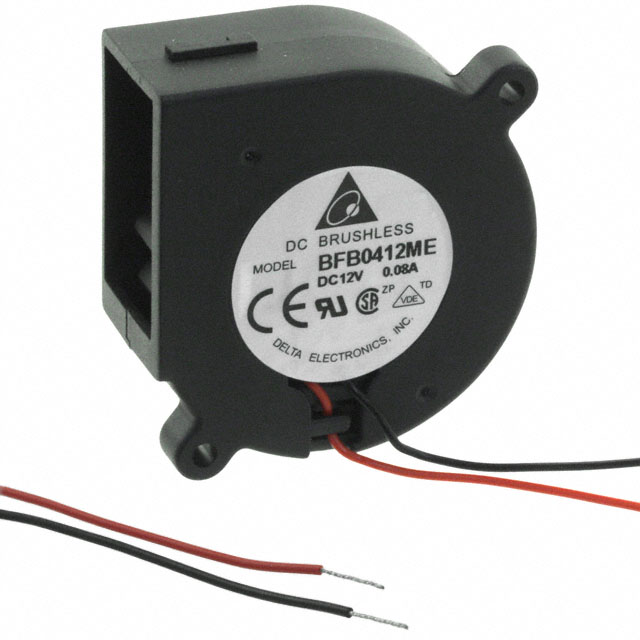

Delta Electronics BFB0412ME	Plastic	10 VDC	13.8 VDC	Plastic	40 °C 50000 Hrs	50 mA	30 dB	600 mW	58 Pa	0.233 in H2O	CE CSA UL VDE	2 Wire Leads	Ball	0.049 lb	22.23 g	12 VDC	42 mm	44.5 mm	4500 RPM	70 °C	-10 °C	18.5 mm	Blower

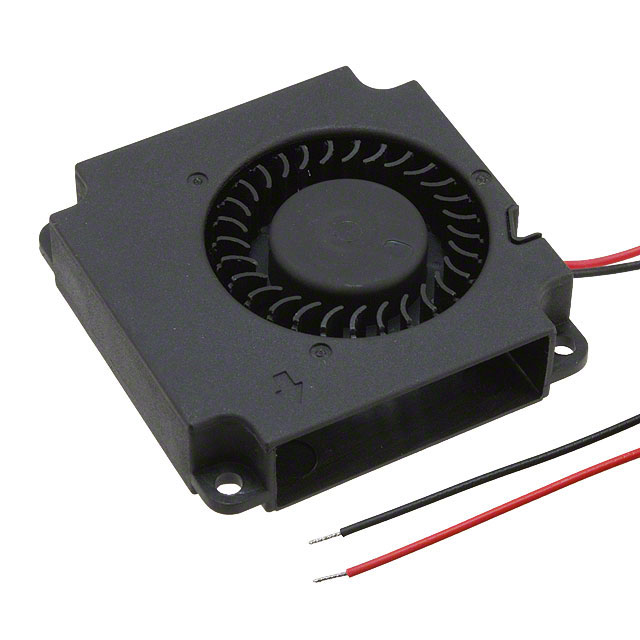

Delta Electronics BFB0412HHA-A	Plastic	7 V	13.2 VDC	Plastic	30000 Hrs		34.5 dB(A)	960 mW	140.5 Pa	0.564 in H2O	CE CSA UL VDE	2 Wire Leads	Ball	0.027 lb	12.25 g	12 VDC	40 mm		8500 RPM	70 °C	-10 °C		Blower	10 mm	40 mm	3 CFM	0.084 mł/min

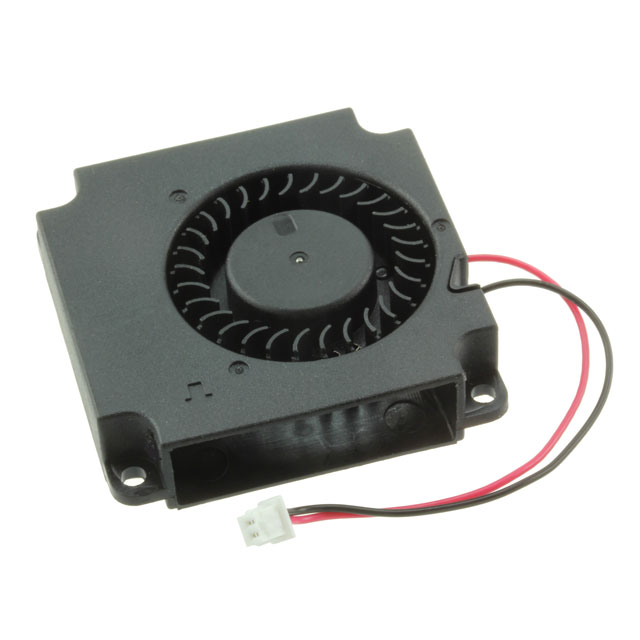

Delta Electronics BFB0412HHA-A117	Plastic	7 V	13.2 VDC	Plastic	30000 Hrs		34.5 dB(A)	960 mW	140.5 Pa	0.564 in H2O	CE CSA UL VDE	2 Position Rectangular Connector	Ball	0.027 lb	12.25 g	12 VDC	40 mm		8500 RPM	70 °C	-10 °C		Blower	10 mm	40 mm	3 CFM	0.084 mł/min
