228EJVA Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Mechanical Life	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Termination Style	Contact Rating @ Voltage	Operating Force	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Illumination Voltage (Nominal)	Actuator Type	Illumination	Switch Function	Mounting Type	Illumination Type, Color	Actuator Orientation	Ingress Protection	Illumination Voltage (Nominal) [Min]	Illumination Voltage (Nominal) [Max]
CTS Electrocomponents 228EJVABFR	100000 Cycles	0.7 mm	85 °C	-40 C	SPST-NO	J Lead	0.05 A 12 VDC	0.2 kgf	5.5 mm	6.8 mm	7.2 mm	3.6 VDC	Standard	Illuminated	Off-Mom	Surface Mount	Blue LED	Top Actuated

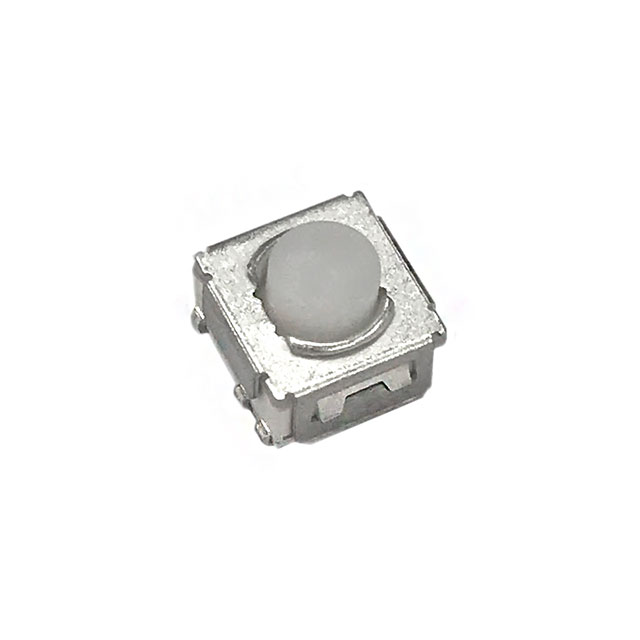

CTS Electrocomponents 228EJVAYFR	100000 Cycles	0.7 mm	85 °C	-40 C	SPST-NO	J Lead	0.05 A 12 VDC	0.2 kgf	5.5 mm	6.8 mm	7.2 mm		Standard	Illuminated	Off-Mom	Surface Mount	LED Yellow	Top Actuated	IP67 - Dust Tight Waterproof
CTS Electrocomponents 228EJVARBFR	100000 Cycles	0.7 mm	85 °C	-40 C	SPST-NO	J Lead	0.05 A 12 VDC	0.2 kgf	5.5 mm	6.8 mm	7.2 mm		Standard	Illuminated	Off-Mom	Surface Mount	Blue LED Red	Top Actuated		1.7 VDC	3 VDC
