EASV2713 Series

Catalog

LED RGB DIFFUSED SMD RA

Part	Mounting Type	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Size [x]	Lens Size [y]	Lens Style	Color	Supplier Device Package	Height (Max) [z]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Millicandela Rating	Configuration	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Color	Lens Transparency	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Height (Max) [Max] [z]	Current - Test	Wavelength - Dominant [custom]	Wavelength - Peak	Current - Test	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Wavelength - Dominant

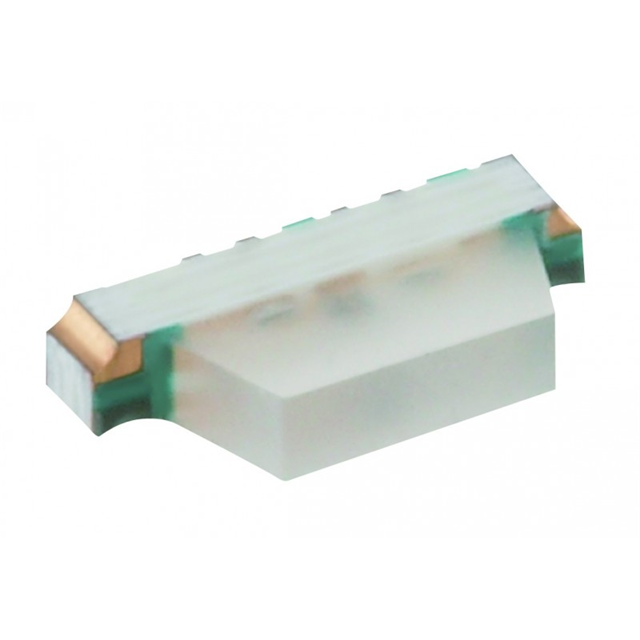

Everlight Electronics Co Ltd EASV2713RGBA1	Right Angle Surface Mount	1.85 V 2.9 V 2.9 V	473nm Blue 532nm Green 619nm Red	2 mm	0.55 mm	Rectangle with Flat Top	Blue Green Red	Chip LED	0.55 mm	5 mA	5 mA	5 mA	17.75 mcd 25.25 mcd 72.5 mcd	Common Anode	626 nm	468 nm	518 nm	White	Diffused	4-SMD No Lead	1.35 mm	2.7 mm	130 °
Everlight Electronics Co Ltd EASV2713GA0	Surface Mount	3.3 V		2 mm	1.2 mm	Rectangle with Flat Top	Green	2-SMD					199 mcd	Standard				Colorless	Clear	2-SMD No Lead	1.2 mm	2.7 mm	130 °	1.4 mm	20 mA	528 nm	518 nm
Everlight Electronics Co Ltd EASV2713RGBA0	Surface Mount	2 V 3.3 V 3.3 V		1.5 mm	1 mm	Rectangle with Flat Top	Blue Green Red	4-SMD						Common Anode				Colorless	Clear	4-SMD No Lead	1 mm	2.7 mm	120 °	1.35 mm			468 nm 518 nm 632 nm	20mA Blue 20mA Green 20mA Red	281 mcd	70 mcd	113 mcd	470 nm 525 nm 623 nm
