H3AAH-30 Series

Catalog

IDC CBL - HHSC30H/AE30G/HHSC30H

Part	Connector Type	Number of Positions	Pitch - Connector	Pitch - Connector	Pitch - Cable	Pitch - Cable	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Length [x]	Length [x]	Contact Finish	Cable Termination	Color	Length	Length	Length

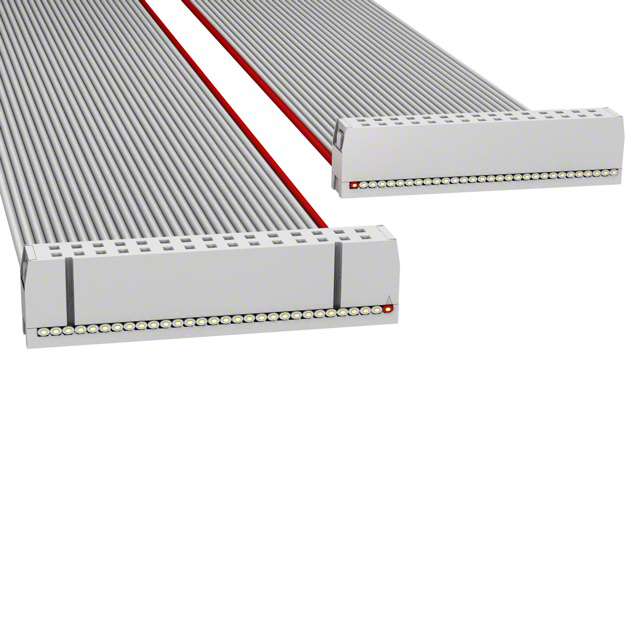

Assmann WSW Components H3AAH-3018G	Socket to Socket	30	0.1 in	2.54 mm	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	2	457.2 mm	1.5 ft	Gold	IDC

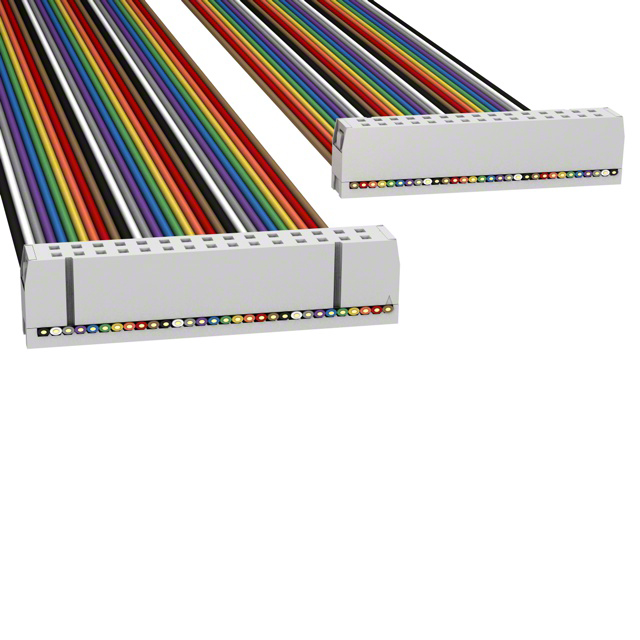

Assmann WSW Components H3AAH-3006M	Socket to Socket	30	0.1 in	2.54 mm	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	2			Gold	IDC	Multiple Ribbon	152.4 mm	0.5 '	6 "
Assmann WSW Components H3AAH-3036G	Socket to Socket	30	0.1 in	2.54 mm	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	2			Gold	IDC		91.44 cm	3 ft
Assmann WSW Components H3AAH-3006G	Socket to Socket	30	0.1 in	2.54 mm	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	2			Gold	IDC		152.4 mm	0.5 '	6 "
Assmann WSW Components H3AAH-3018M	Socket to Socket	30	0.1 in	2.54 mm	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	2	457.2 mm	1.5 ft	Gold	IDC	Multiple Ribbon
Assmann WSW Components H3AAH-3036M	Socket to Socket	30	0.1 in	2.54 mm	0.05 in	1.27 mm	Unshielded	0.38 µm	15 µin	2			Gold	IDC	Multiple Ribbon	91.44 cm	3 ft
