IL-312-A Series

Catalog

CONN RCPT 50POS SMD GOLD

Part	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [z]	Features	Contact Finish	Number of Positions	Connector Type	Number of Rows [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Height Above Board	Height Above Board
JAE Electronics IL-312-A50S-VF-A1	2.2 mm	0.087 in	2.5 mm 3 mm	Solder Retention	Gold	50	Receptacle Outer Shroud Contacts	2	Surface Mount	0.1 Ám	4 Áin	0.02 "	0.5 mm

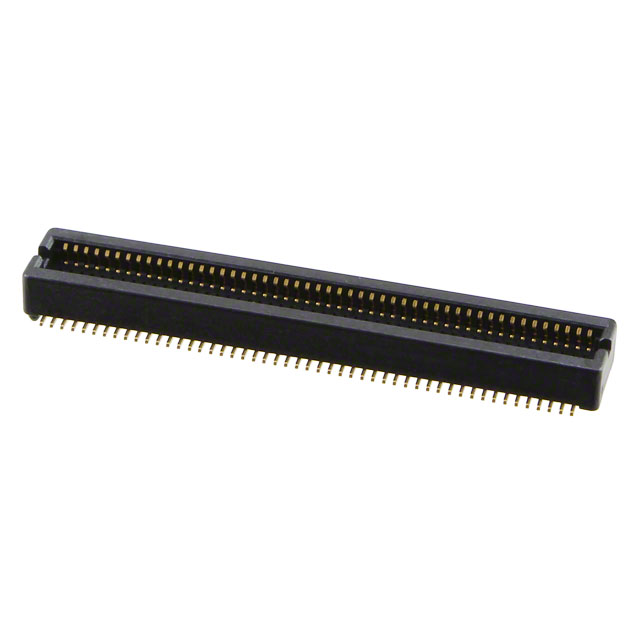

JAE Electronics IL-312-A100SB-VF-A1	2.2 mm	0.087 in	2.5 mm 3 mm	Board Guide Solder Retention	Gold	100	Receptacle Outer Shroud Contacts	2	Surface Mount	0.1 Ám	4 Áin	0.02 "	0.5 mm

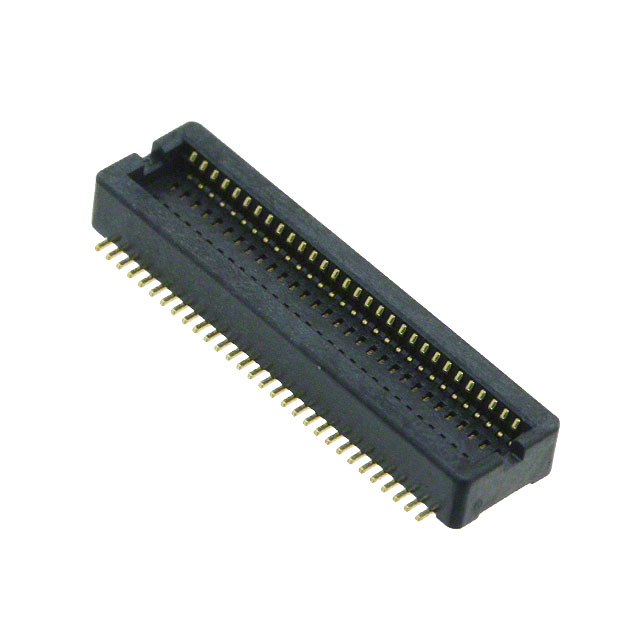

JAE Electronics IL-312-A60S-VF-A1	2.2 mm	0.087 in	2.5 mm 3 mm	Solder Retention	Gold	60	Receptacle Outer Shroud Contacts	2	Surface Mount	0.1 Ám	4 Áin	0.02 "	0.5 mm
JAE Electronics IL-312-A30S-VF-A1	2.16 mm	0.085 in	2.5 mm 3 mm	Solder Retention	Gold	30	Receptacle Outer Shroud Contacts	2	Surface Mount	0.1 Ám	4 Áin	0.02 "	0.5 mm
JAE Electronics IL-312-A40SB-VF-A1	2.2 mm	0.087 in	2.5 mm 3 mm	Board Guide Solder Retention	Gold	40	Receptacle Outer Shroud Contacts	2	Surface Mount	0.1 Ám	4 Áin	0.02 "	0.5 mm

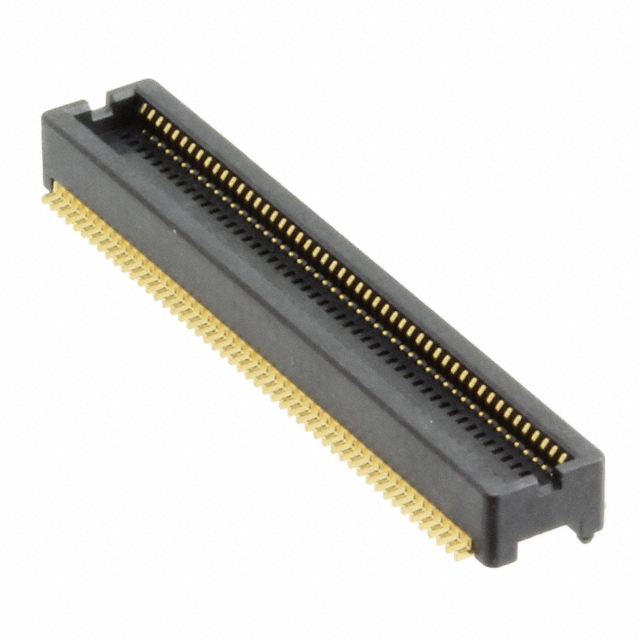

JAE Electronics IL-312-A100SB-VFH05-A1			3 mm 3.5 mm	Board Guide Solder Retention	Gold	100	Receptacle Outer Shroud Contacts	2	Surface Mount	0.1 Ám	4 Áin	0.02 "	0.5 mm	2.65 mm	0.104 in
JAE Electronics IL-312-A100SB-VFH05-A1-E3000			3 mm 3.5 mm	Board Guide Solder Retention	Gold	100	Receptacle Outer Shroud Contacts	2	Surface Mount	0.1 Ám	4 Áin	0.02 "	0.5 mm	2.65 mm	0.104 in

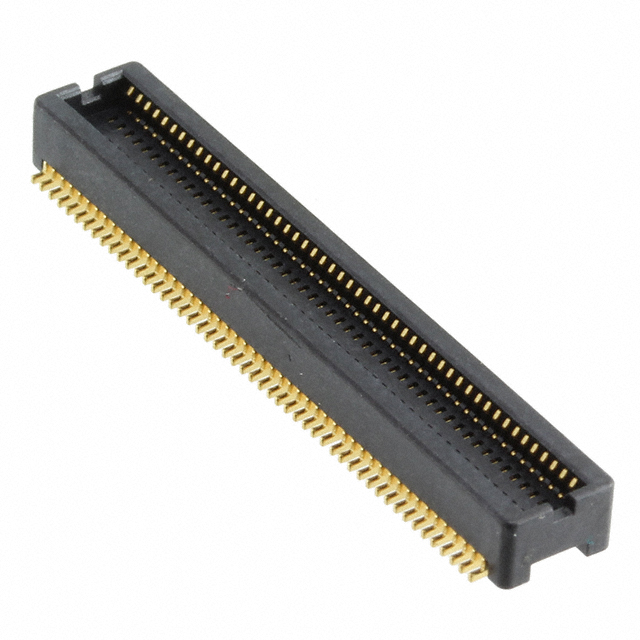

JAE Electronics IL-312-A100S-VFH05-A1			3 mm 3.5 mm	Solder Retention	Gold	100	Receptacle Outer Shroud Contacts	2	Surface Mount	0.1 Ám	4 Áin	0.02 "	0.5 mm	2.65 mm	0.104 in

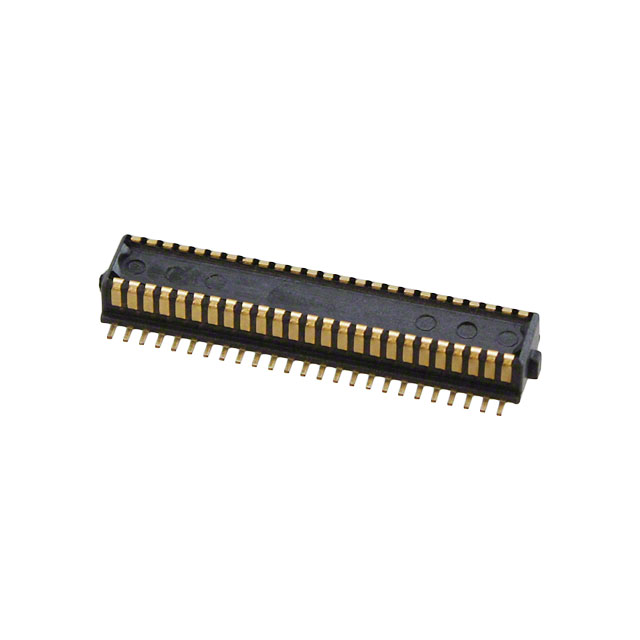

JAE Electronics IL-312-A50P-VF-A1	1.55 mm	0.061 "	2.5 mm 3 mm	Solder Retention	Gold	50		2	Surface Mount	0.1 Ám	4 Áin	0.02 "	0.5 mm
JAE Electronics IL-312-A40S-VF-A1	2.16 mm	0.085 in	2.5 mm 3 mm	Solder Retention	Gold	40	Receptacle Outer Shroud Contacts	2	Surface Mount	0.1 Ám	4 Áin	0.02 "	0.5 mm
