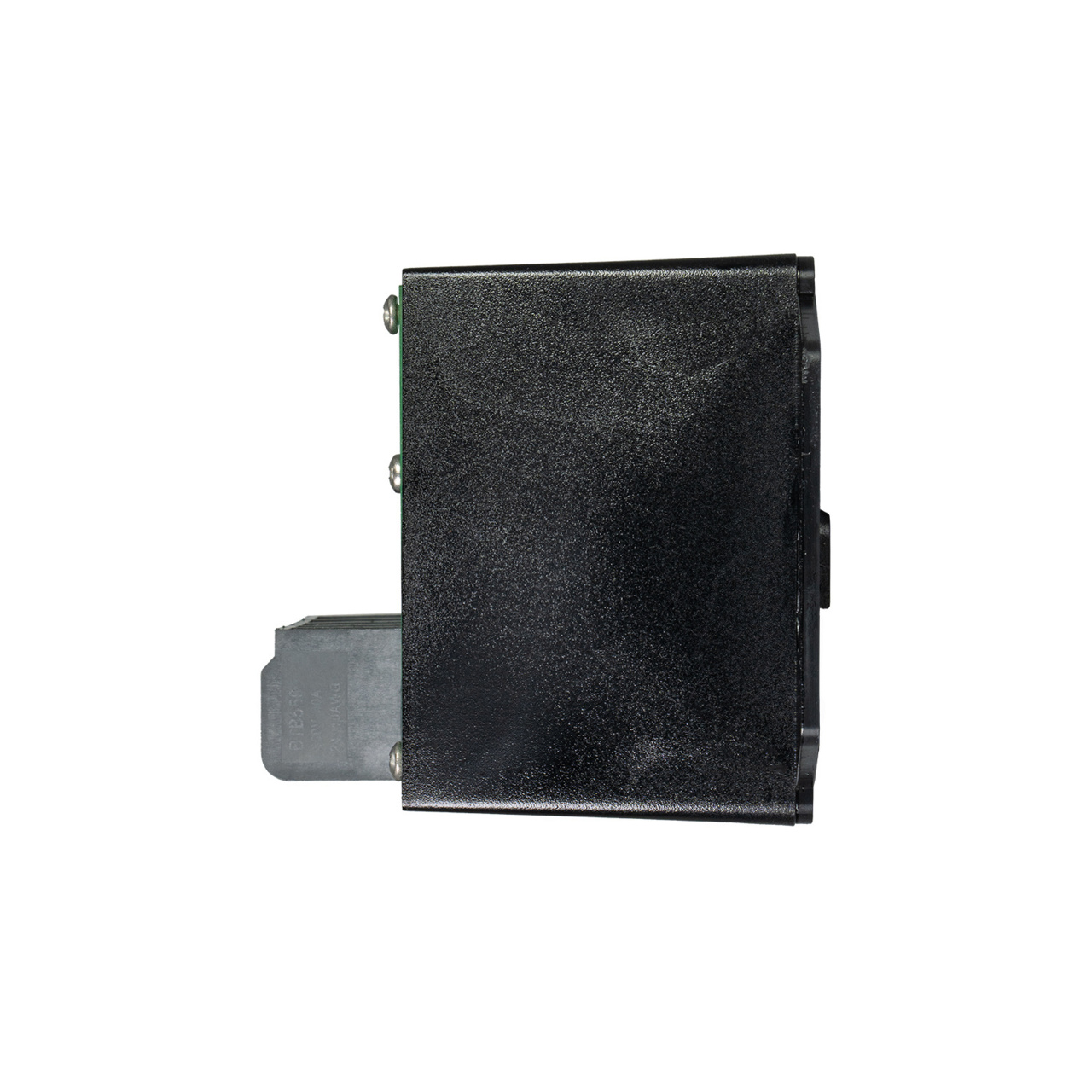

235P Series

1-PHASE PUMPSAVERPLUS/230V/5-1

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

1-PHASE PUMPSAVERPLUS/230V/5-1

Part	Trip Range [Max]	Trip Range [Min]	Delay Time	Delay Time	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply	Mounting Type	Contact Rating @ Voltage	Trip Status
Littelfuse/Commercial Vehicle Products 235P	265 V AC	190 V AC	Fixed	2 Sec	Voltage Sensing AC	-40 °C	55 °C	230 VAC	Chassis Mount	10 A 240 VAC	Energized High/Low

Catalog

1-PHASE PUMPSAVERPLUS/230V/5-1

Description

The 235P pump monitor protects single-phase pumps with an input voltage value of 230 V ac, an input load range of 5–15 hp (external current transformer required), and the following dimensions: 2.93" H x 5.25" W x 2.91" D.
