745-065 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 65POS 0.100

Part	Termination Rows	Material - Insulation	Card Type	Contact Type	Number of Positions	Number of Positions/Bay/Row	Termination	Gender	Contact Finish	Read Out	Contact Material	Mounting Type	Pitch	Pitch	Color	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]

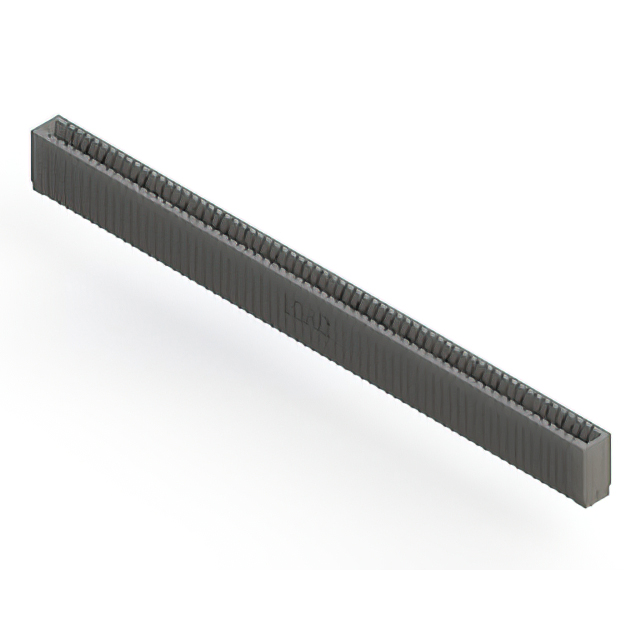

EDAC Inc. 745-065-520-101	1	Polyester Thermoplastic	Non Specified - Single Edge	Cantilever	65	65	Press-Fit	Female	Gold	Single	Copper Alloy	Through Hole	0.1 "	2.54 mm	Black	1	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-065-540-106	1	Polyester Thermoplastic	Non Specified - Single Edge	Cantilever	65	65	Press-Fit Wire Wrap	Female	Gold	Single	Copper Alloy	Through Hole	0.1 "	2.54 mm	Black	1	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-065-541-101	1	Polyester Thermoplastic	Non Specified - Single Edge	Cantilever	65	65	Press-Fit Wire Wrap	Female	Gold	Single	Copper Alloy	Through Hole	0.1 "	2.54 mm	Black	1	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-065-522-101	1	Polyester Thermoplastic	Non Specified - Single Edge	Cantilever	65	65	Press-Fit	Female	Gold	Single	Copper Alloy	Through Hole	0.1 "	2.54 mm	Black	1	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-065-540-101	1	Polyester Thermoplastic	Non Specified - Single Edge	Cantilever	65	65	Press-Fit Wire Wrap	Female	Gold	Single	Copper Alloy	Through Hole	0.1 "	2.54 mm	Black	1	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-065-525-101	1	Polyester Thermoplastic	Non Specified - Single Edge	Cantilever	65	65	Press-Fit	Female	Gold	Single	Copper Alloy	Through Hole	0.1 "	2.54 mm	Black	1	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-065-541-106	1	Polyester Thermoplastic	Non Specified - Single Edge	Cantilever	65	65	Press-Fit Wire Wrap	Female	Gold	Single	Copper Alloy	Through Hole	0.1 "	2.54 mm	Black	1	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 745-065-522-106	1	Polyester Thermoplastic	Non Specified - Single Edge	Cantilever	65	65	Press-Fit	Female	Gold	Single	Copper Alloy	Through Hole	0.1 "	2.54 mm	Black	1	30 Áin	0.76 Ám	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm
