FWE050024 Series

Catalog

AC/DC DESKTOP ADAPTER 24V 50W

Part	Weight [custom]	Weight [custom]	Region Utilized	Applications	Voltage - Output	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Form	Input Type	Cord Length	Cord Length	Power (Watts)	No Load Power Consumption	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Current - Output (Max) [Max]	Input Connector	Polarization	Output Connector [diameter]	Output Connector [x]	Output Connector	Efficiency	Weight	Weight

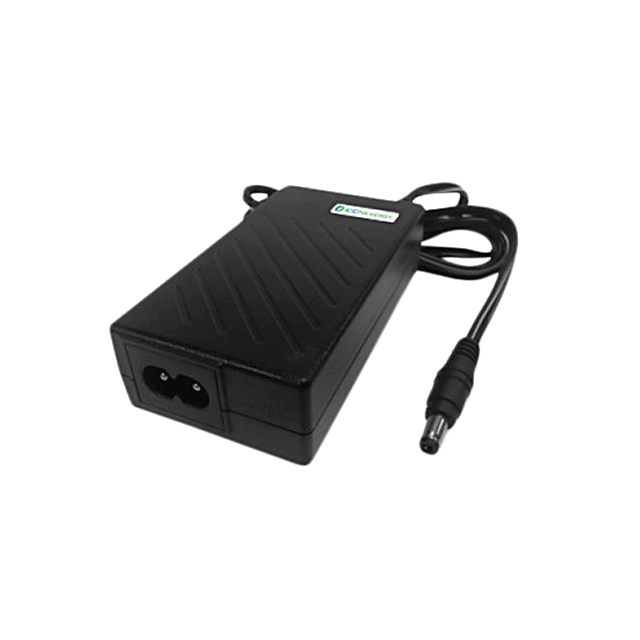

Inventus Power FWE050024B-10A	230.42 g	0.508 lb	International	ITE (Commercial)	24 V	CB CCC CE cTUVus	0 °C	60 °C	Desktop (Class II)	Cord (Sold Separately)	1.22 m	48 in	50 W	300 mW	36.5 mm	57.5 mm	114.2 mm	4.5 in	2.26 "	1.44 in	60950-1 62368-1	2.08 A	IEC 320-C8	Positive Center	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI
Inventus Power FWE050024A-10A			International	ITE (Commercial)	24 V	CB CCC CE cTUVus	0 °C	60 °C	Desktop (Class I)	Cord (Sold Separately)	1.22 m	48 in	50 W	100 mW	36.5 mm	57.5 mm	114.2 mm	4.5 in	2.26 "	1.44 in	62368-1	2.08 A	IEC 320-C14	Positive Center	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Level VI	181.44 g	0.4 lb
