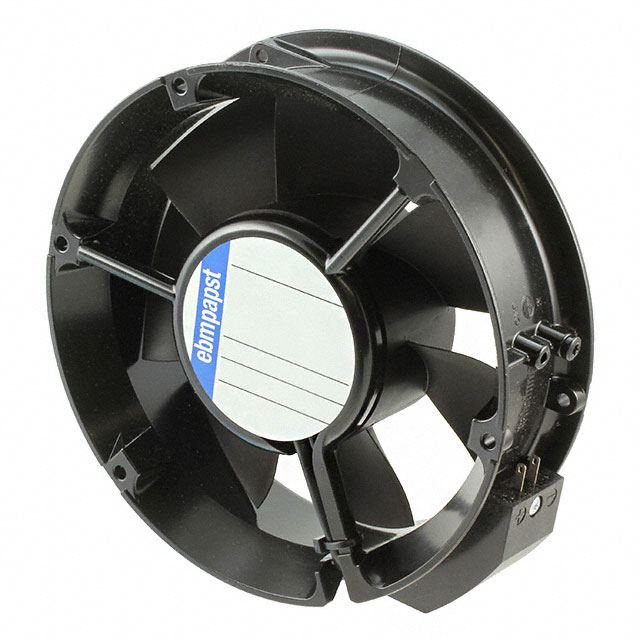

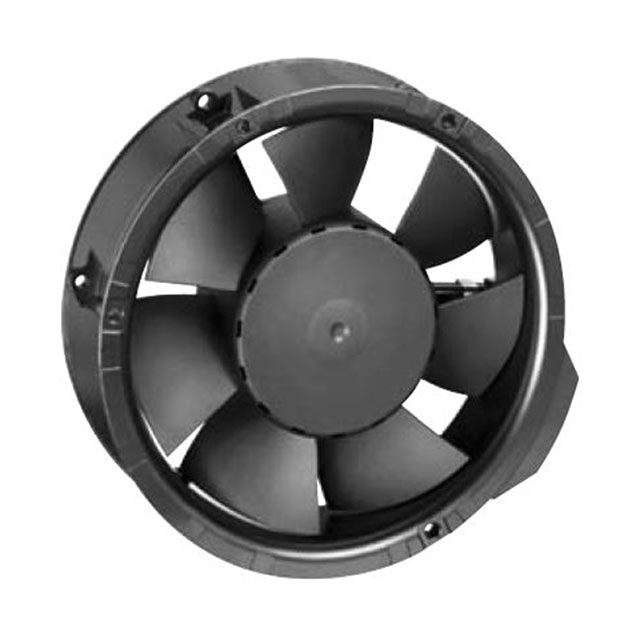

6224N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN AXIAL 171.5X50.8MM 24VDC
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Air Flow | Air Flow | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Weight | Weight | RPM | Ingress Protection | Power (Watts) | Size / Dimension [diameter] | Size / Dimension | Fan Type | Approval Agency | Noise | Bearing Type | Width [y] | Voltage - Rated | Lifetime @ Temp. | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 28 V | 12 VDC | Aluminum | 6.76 m³/min | 241.3 CFM | 2 Wire Leads | 72 °C 162 °F | -20 ░C | 861.8 g | 1.9 lbs | 3400 RPM | IP68 - Dust Tight Waterproof | 15.6 W | 171.5 mm | Round | Tubeaxial | UL | 55 dB(A) | Ball | 50.8 mm | 24 VDC | ||
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | 32 V | 12 VDC | Metal | 5.77 m³/min | 206 CFM | 72 °C 162 °F | -20 ░C | 816.5 g | 1.8 lbs | 2850 RPM | 12 W | 171.5 mm | Round | Tubeaxial | CE CSA UL VDE | 50 dB(A) | Ball | 50.8 mm | 24 VDC | 80000 Hrs | 2 |
