222K163 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

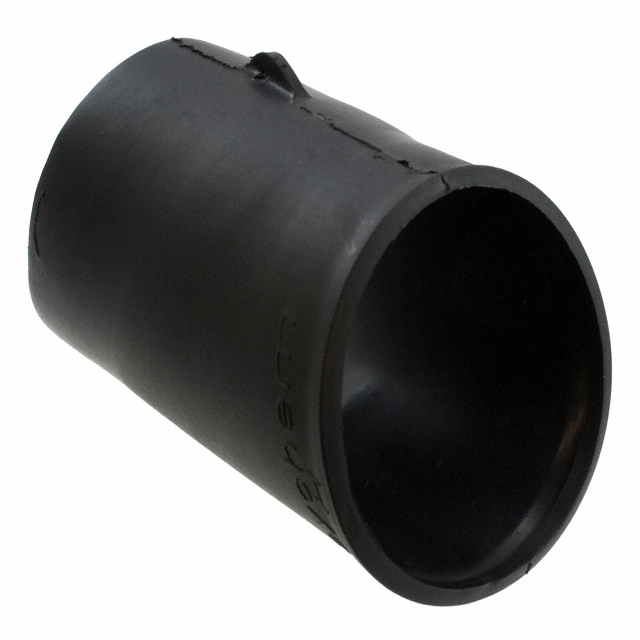

HEATSHRINK BOOT 90DEG SZ63 BLK

Part	Color	Small Recovered Length	Small Recovered Length	Shell Size - Insert	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Large Recovered Length	Large Recovered Length	Material	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Total Length Recovered	Total Length Recovered	Type	Small Diameter Supplied	Small Diameter Supplied	Features
TE Connectivity Aerospace, Defense and Marine 222K163-25-CS-2065-0	Black	1.18 in	29.97 mm	63	42.93 mm	1.69 in	44.96 mm	1.77 in	Elastomer Fluid Resistant	28.19 mm	1.11 in	24.89 mm	0.98 in	0.39 "	9.91 mm	55.12 mm	2.17 in	Boot - 90°
TE Connectivity Aerospace, Defense and Marine 222K163-3-00-0	Black	1.18 in	29.97 mm	63	42.93 mm	1.69 in	44.96 mm	1.77 in	Polyolefin (PO) Semi-Rigid	28.19 mm	1.11 in	24.89 mm	0.98 in	0.39 "	9.91 mm	55.12 mm	2.17 in	Boot - 90°
TE Connectivity Aerospace, Defense and Marine 222K163-100/184-0	Black	1.18 in	29.97 mm	63	42.93 mm	1.69 in	44.96 mm	1.77 in	Polyolefin (PO) Semi-Flexible Halogen Free	28.19 mm	1.11 in	24.89 mm	0.98 in	0.39 "	9.91 mm	55.12 mm	2.17 in	Boot - 90°
TE Connectivity Aerospace, Defense and Marine 222K163-25/86-0	Black	1.18 in	29.97 mm	63	42.93 mm	1.69 in	44.96 mm	1.77 in	Elastomer Semi-Rigid	28.19 mm	1.11 in			0.39 "	9.91 mm	55.12 mm	2.17 in	Boot - 90°	1.69 "	42.93 mm	Adhesive Coating Fluid Resistant
TE Connectivity Aerospace, Defense and Marine 222K163-4-0
TE Connectivity Aerospace, Defense and Marine 222K163-25-0	Black	1.18 in	29.97 mm	63	42.93 mm	1.69 in	44.96 mm	1.77 in	Elastomer Semi-Rigid	28.19 mm	1.11 in			0.39 "	9.91 mm	55.12 mm	2.17 in	Boot - 90°	1.69 "	42.93 mm
