838-22 Series

Catalog

CONN SPRING PISTON 18POS SMD

Part	Number of Rows [custom]	Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Number of Contacts	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 838-22-018-30-001101	2	Copper Alloy	Gold	20 µin	0.51 µm	2 mm	0.079 in	0.079 in	2 mm	Piston	Surface Mount

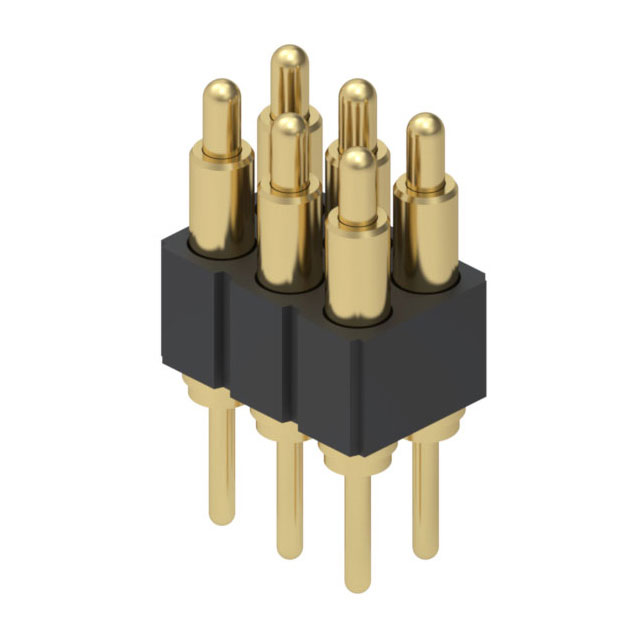

Mill-Max Manufacturing Corp. 838-22-006-10-001101	2	Copper Alloy	Gold	10 Áin	0.25 Ám	2 mm	0.079 in	0.079 in	2 mm	Piston	Through Hole	6
Mill-Max Manufacturing Corp. 838-22-008-30-001101	2	Copper Alloy	Gold	20 µin	0.51 µm	2 mm	0.079 in	0.079 in	2 mm	Piston	Surface Mount	8
Mill-Max Manufacturing Corp. 838-22-016-30-001101	2	Copper Alloy	Gold	20 µin	0.51 µm	2 mm	0.079 in	0.079 in	2 mm	Piston	Surface Mount	16

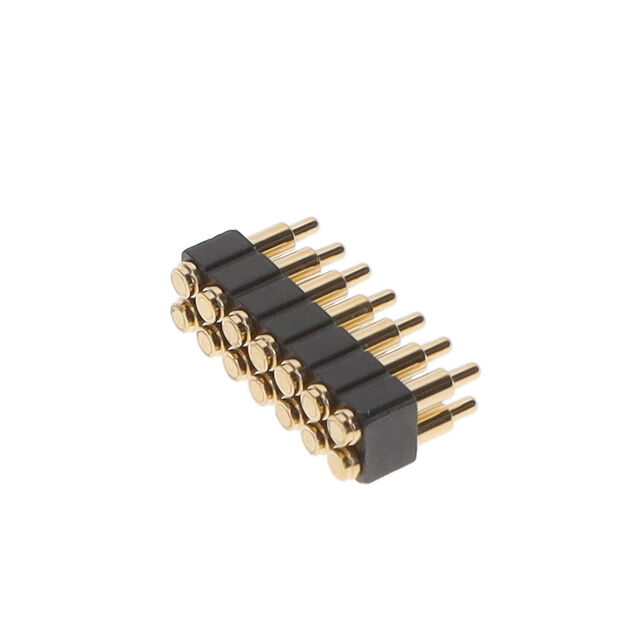

Mill-Max Manufacturing Corp. 838-22-014-30-001101	2	Copper Alloy	Gold	20 µin	0.51 µm	2 mm	0.079 in	0.079 in	2 mm	Piston	Surface Mount		14
Mill-Max Manufacturing Corp. 838-22-100-10-001101	2	Copper Alloy	Gold	10 Áin	0.25 Ám	2 mm	0.079 in	0.079 in	2 mm	Piston	Through Hole	100

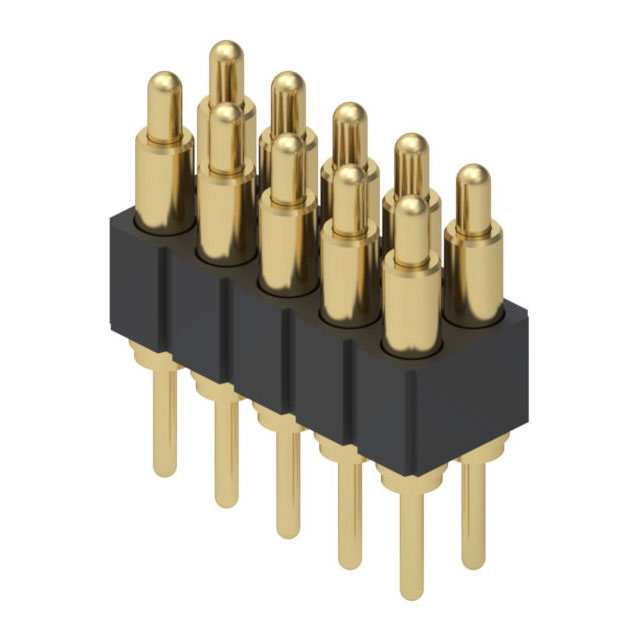

Mill-Max Manufacturing Corp. 838-22-010-10-001101	2	Copper Alloy	Gold	10 Áin	0.25 Ám	2 mm	0.079 in	0.079 in	2 mm	Piston	Through Hole	10

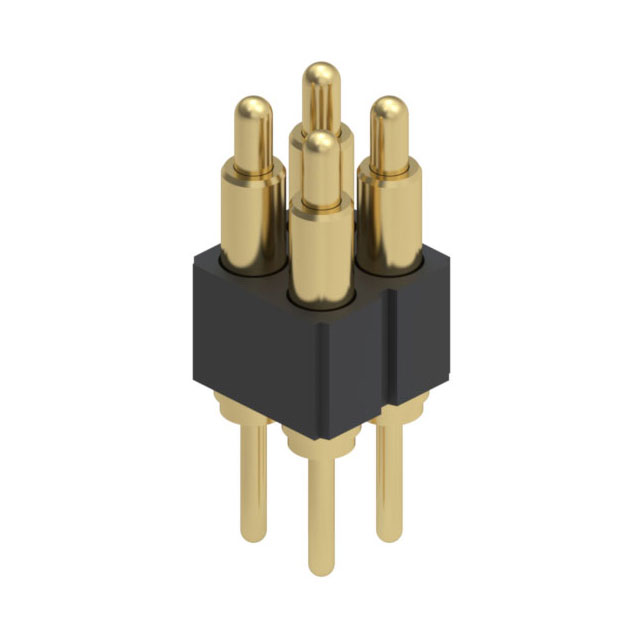

Mill-Max Manufacturing Corp. 838-22-004-10-001101	2	Copper Alloy	Gold	10 Áin	0.25 Ám	2 mm	0.079 in	0.079 in	2 mm	Piston	Through Hole	4

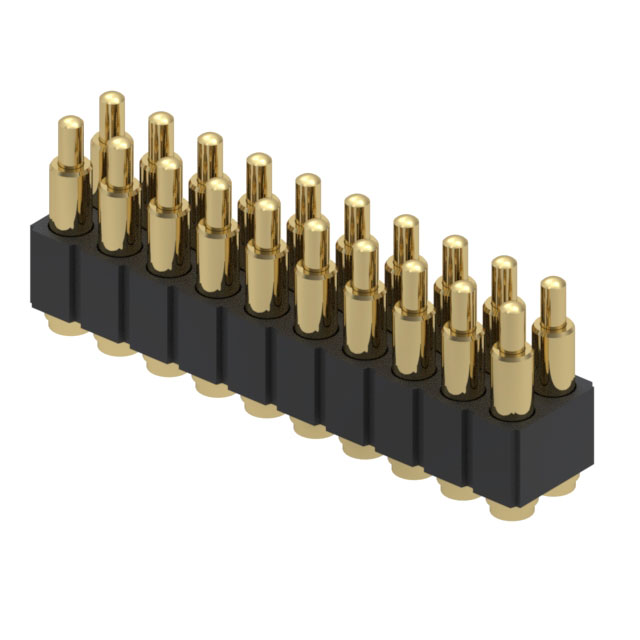

Mill-Max Manufacturing Corp. 838-22-020-30-001101	2	Copper Alloy	Gold	20 µin	0.51 µm	2 mm	0.079 in	0.079 in	2 mm	Piston	Surface Mount	20
Mill-Max Manufacturing Corp. 838-22-012-30-001101	2	Copper Alloy	Gold	20 µin	0.51 µm	2 mm	0.079 in	0.079 in	2 mm	Piston	Surface Mount		12
