34080 Series

Catalog

CONN SPADE TERM 16-22AWG #6 RED

Part	Insulation	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Length - Termination	Length - Termination	Stud/Tab Size	Terminal Type	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Features	Material - Insulation	Contact Finish	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Color	Termination

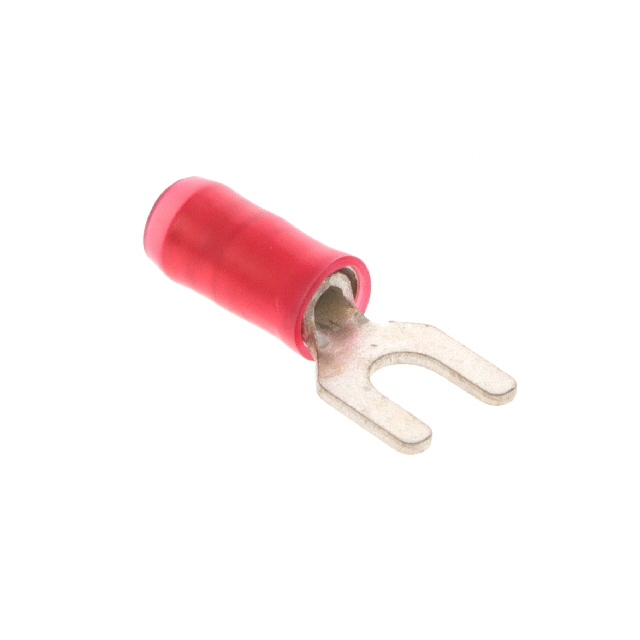

TE Connectivity Raychem Cable Protection 8-34080-1	Insulated	3.68 mm	0.145 in	Copper	22 AWG	16 AWG	0.404 "	10.26 mm	6 Stud	Standard	2.03 mm	3.18 mm	0.125 "	0.08 in	0.297 in	7.54 mm	Free Hanging (In-Line)	0.753 in	19.13 mm	Serrated Termination	Nylon Polyamide (PA)	Tin	0.203 in	5.16 mm	Red	Crimp

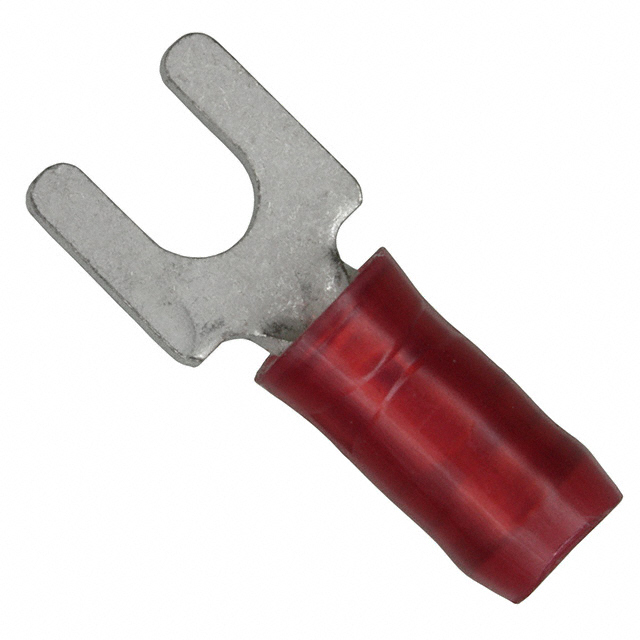

TE Connectivity Raychem Cable Protection 2-34080-1	Insulated	3.68 mm	0.145 in	Copper	22 AWG	16 AWG	0.404 "	10.26 mm	6 Stud	Standard	2.03 mm	3.18 mm	0.125 "	0.08 in	0.297 in	7.54 mm	Free Hanging (In-Line)	0.753 in	19.13 mm	Serrated Termination	Nylon Polyamide (PA)	Tin	0.203 in	5.16 mm	Red	Crimp
