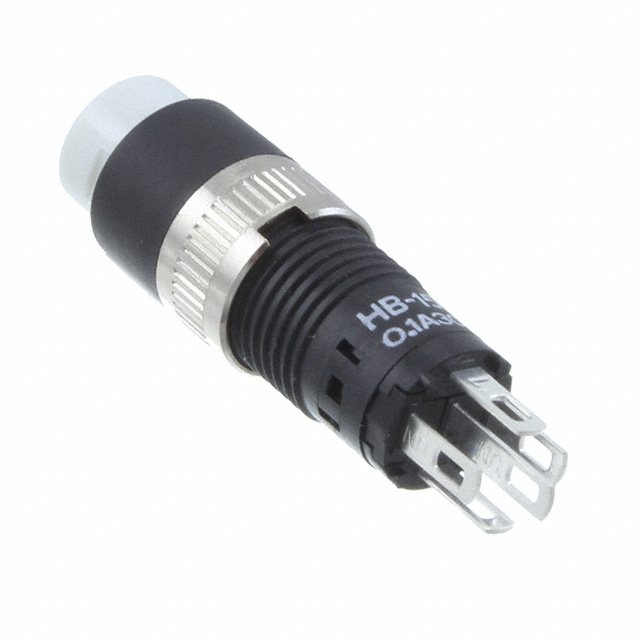

HB15CKW Series

Catalog

SWITCH PUSH SPDT 0.1A 30V

Part	Mechanical Life	Electrical Life	Actuator Type	Voltage Rating - AC	Color - Actuator/Cap	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Termination Style	Mounting Type	Circuit	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Type	Illumination Voltage (Nominal)	Illumination Type, Color

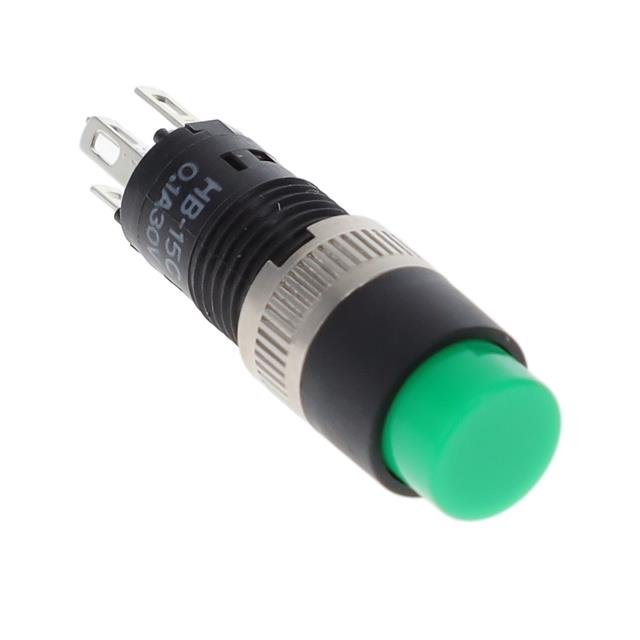

NKK Switches HB15CKW01-F	100000 Cycles	50000 Cycles	Button Round	30 V	Green	30 V	8 mm	100 mA	Solder Lug	Panel Mount Front	SPDT	No Marking	-25 °C	70 °C	On-Mom	Standard

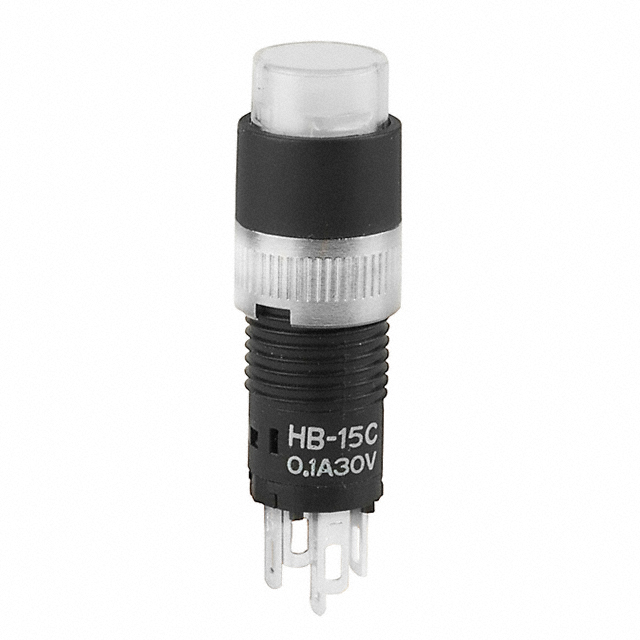

NKK Switches HB15CKW01-6F-JB	100000 Cycles	50000 Cycles	Button Round	30 V	Clear	30 V	8 mm	100 mA	Solder Lug	Panel Mount Front	SPDT	No Marking	-25 °C	50 °C	On-Mom	Illuminated Standard	3.5 VDC	Green LED

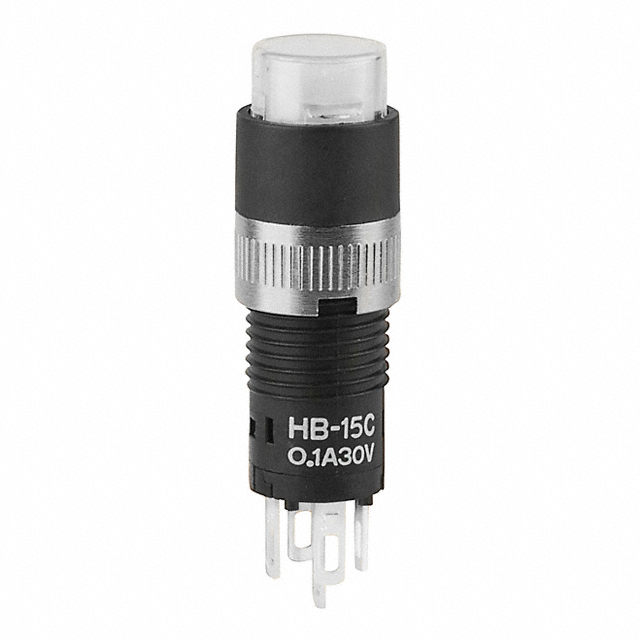

NKK Switches HB15CKW01-5F-JB	100000 Cycles	50000 Cycles	Button Round	30 V	Clear	30 V	8 mm	100 mA	Solder Lug	Panel Mount Front	SPDT	No Marking	-25 °C	50 °C	On-Mom	Illuminated Standard	2.1 VDC	Green LED
NKK Switches HB15CKW01-E	100000 Cycles	50000 Cycles	Button Round	30 V	Yellow	30 V	8 mm	100 mA	Solder Lug	Panel Mount Front	SPDT	No Marking	-25 °C	70 °C	On-Mom	Standard

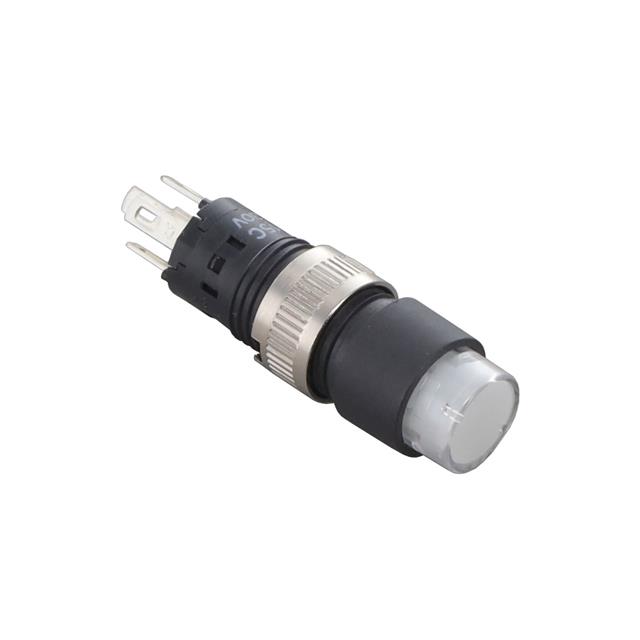

NKK Switches HB15CKW01-5D-JB	100000 Cycles	50000 Cycles	Button Round	30 V	Clear	30 V	8 mm	100 mA	Solder Lug	Panel Mount Front	SPDT	No Marking	-25 °C	50 °C	On-Mom	Illuminated Standard	2.05 VDC	Amber LED

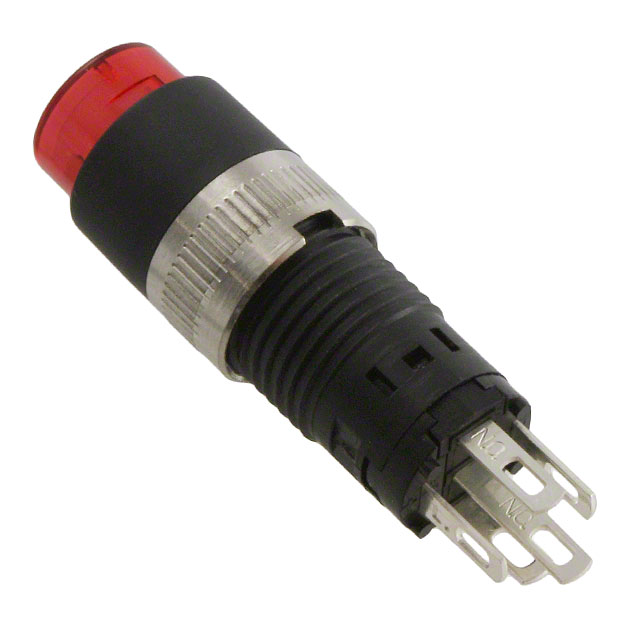

NKK Switches HB15CKW01-5C-CB	100000 Cycles	50000 Cycles	Button Round	30 V	Red	30 V	8 mm	100 mA	Solder Lug	Panel Mount Front	SPDT	No Marking	-25 °C	50 °C	On-Mom	Illuminated Standard	2.1 VDC	LED Red
NKK Switches HB15CKW01-6B-JB	100000 Cycles	50000 Cycles	Button Round	30 V	Clear	30 V	8 mm	100 mA	Solder Lug	Panel Mount Front	SPDT	No Marking	-25 °C	50 °C	On-Mom	Illuminated Standard	3.3 VDC	LED White
NKK Switches HB15CKW01-5C-JB	100000 Cycles	50000 Cycles	Button Round	30 V	Clear	30 V	8 mm	100 mA	Solder Lug	Panel Mount Front	SPDT	No Marking	-25 °C	50 °C	On-Mom	Illuminated Standard	2.1 VDC	LED Red
NKK Switches HB15CKW01-5D-DB	100000 Cycles	50000 Cycles	Button Round	30 V	Amber	30 V	8 mm	100 mA	Solder Lug	Panel Mount Front	SPDT	No Marking	-25 °C	50 °C	On-Mom	Illuminated Standard	2.05 VDC	Amber LED
NKK Switches HB15CKW01-B	100000 Cycles	50000 Cycles	Button Round	30 V	White	30 V	8 mm	100 mA	Solder Lug	Panel Mount Front	SPDT	No Marking	-25 °C	70 °C	On-Mom	Standard
