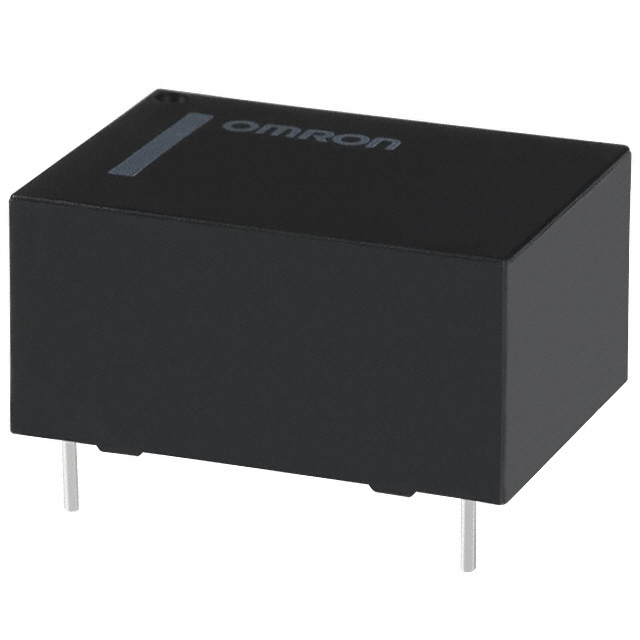

G5CA-1A Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPST 10A 5V

Part	Load - Max Switching	Coil Current	Relay Type	Contact Rating (Current)	Coil Resistance	Mounting Type	Release Time	Seal Rating	Approval Agency	Coil Type	Contact Form	Must Operate Voltage	Operate Time	Coil Voltage	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Switching Voltage	Termination Style
Omron Electronics Inc-EMC Div G5CA-1A4-H DC5	1250 W 2500 VA	30 mA	General Purpose	10 A	167 Ohms	Through Hole	10 ms	Sealed - Fully	CQC CSA TUV UR	Non Latching	SPST-NO (1 Form A)	4 VDC	10 ms	5 VDC	0.5 VDC	70 °C	-25 °C	PC Pin	125 VDC 250 VAC
Omron Electronics Inc-EMC Div G5CA-1A DC48	1250 W 2500 VA	4.2 mA	General Purpose	10 A	11.4 kOhms	Through Hole	10 ms	Sealed - Flux Protection	CQC CSA TUV UR	Non Latching	SPST-NO (1 Form A)	36 VDC	10 ms	48 VDC	4.8 VDC	70 °C	-25 °C	PC Pin	125 VDC 250 VAC
Omron Electronics Inc-EMC Div G5CA-1A-E DC12	1875 W 3750 VA	16.7 mA	General Purpose	15 A	720 Ohms	Through Hole	10 ms	Sealed - Flux Protection	CQC CSA TUV UR	Non Latching	SPST-NO (1 Form A)	9 VDC	10 ms	12 VDC	1.2 VDC	70 °C	-25 °C	PC Pin	125 VDC 250 VAC

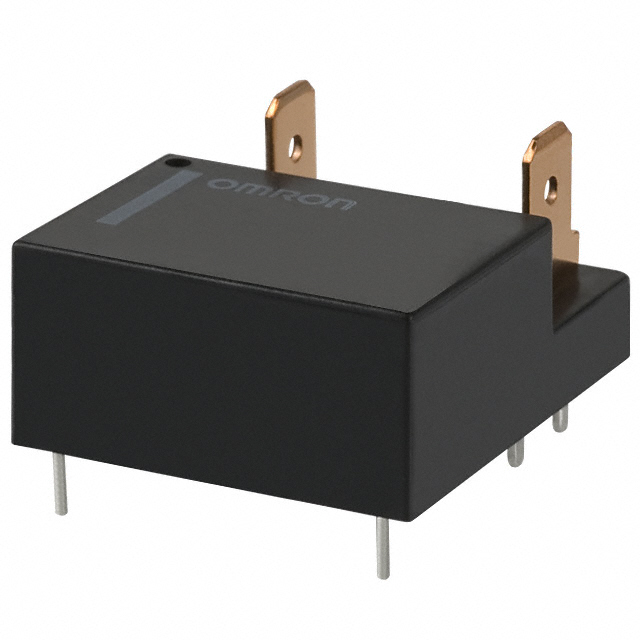

Omron Electronics Inc-EMC Div G5CA-1A-TP-E DC12	1875 W 3750 VA	16.7 mA	General Purpose	15 A	720 Ohms	Through Hole	10 ms	Sealed - Flux Protection	CQC CSA TUV UR	Non Latching	SPST-NO (1 Form A)	9 VDC	10 ms	12 VDC	1.2 VDC	70 °C	-25 °C	PC Pin Quick Connect	125 VDC 250 VAC	0.187 in 4.7 mm
Omron Electronics Inc-EMC Div G5CA-1A-E DC24	1875 W 3750 VA	8.3 mA	General Purpose	15 A	2.88 kOhms	Through Hole	10 ms	Sealed - Flux Protection	CQC CSA TUV UR	Non Latching	SPST-NO (1 Form A)	18 VDC	10 ms	24 VDC	2.4 VDC	70 °C	-25 °C	PC Pin	125 VDC 250 VAC
Omron Electronics Inc-EMC Div G5CA-1A DC12	1250 W 2500 VA	16.7 mA	General Purpose	10 A	720 Ohms	Through Hole	10 ms	Sealed - Flux Protection	CQC CSA TUV UR	Non Latching	SPST-NO (1 Form A)	9 VDC	10 ms	12 VDC	1.2 VDC	70 °C	-25 °C	PC Pin	125 VDC 250 VAC
Omron Electronics Inc-EMC Div G5CA-1A-E DC6	1875 W 3750 VA	33.3 mA	General Purpose	15 A	180 Ohms	Through Hole	10 ms	Sealed - Flux Protection	CQC CSA TUV UR	Non Latching	SPST-NO (1 Form A)	4.5 VDC	10 ms		0.6 VDC	70 °C	-25 °C	PC Pin	125 VDC 250 VAC
Omron Electronics Inc-EMC Div G5CA-1A-TP-E DC5	1875 W 3750 VA	40 mA	General Purpose	15 A	125 Ohms	Through Hole	10 ms	Sealed - Flux Protection	CQC CSA TUV UR	Non Latching	SPST-NO (1 Form A)	3.75 VDC	10 ms	5 VDC	0.5 VDC	70 °C	-25 °C	PC Pin Quick Connect	125 VDC 250 VAC	0.187 in 4.7 mm
Omron Electronics Inc-EMC Div G5CA-1A4-H DC12	1250 W 2500 VA		General Purpose	10 A	960 Ohms	Through Hole	10 ms	Sealed - Fully	CQC CSA TUV UR	Non Latching	SPST-NO (1 Form A)	9.6 VDC	10 ms	12 VDC	1.2 VDC	70 °C	-25 °C	PC Pin	125 VDC 250 VAC
Omron Electronics Inc-EMC Div G5CA-1A-E DC5	1875 W 3750 VA	40 mA	General Purpose	15 A	125 Ohms	Through Hole	10 ms	Sealed - Flux Protection	CQC CSA TUV UR	Non Latching	SPST-NO (1 Form A)	3.75 VDC	10 ms	5 VDC	0.5 VDC	70 °C	-25 °C	PC Pin	125 VDC 250 VAC
