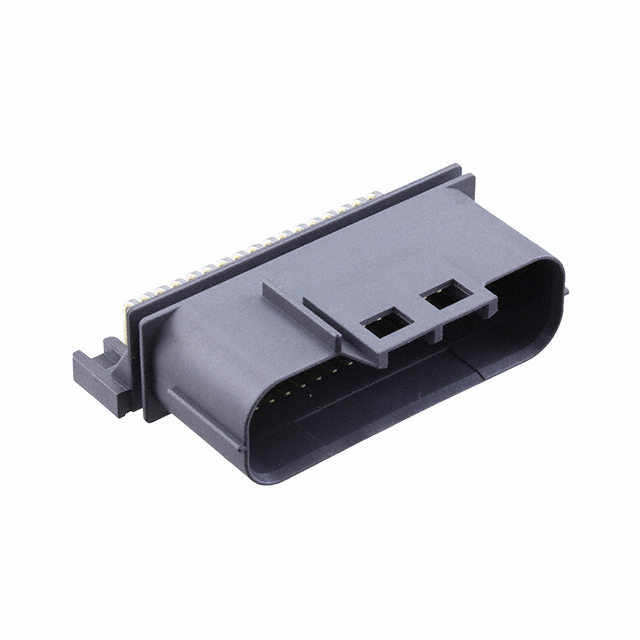

MX23A34N Series

Catalog

CONN HEADER 34PS R/A REVERSE PIN

Part	Applications	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type	Connector Type	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Post	Contact Shape	Style	Insulation Material	Features	Shrouding	Number of Rows [custom]	Number of Positions [custom]	Ingress Protection	Insulation Color	Insulation Height	Insulation Height	Number of Positions Loaded
JAE Electronics MX23A34NFU
JAE Electronics MX23A34NF5

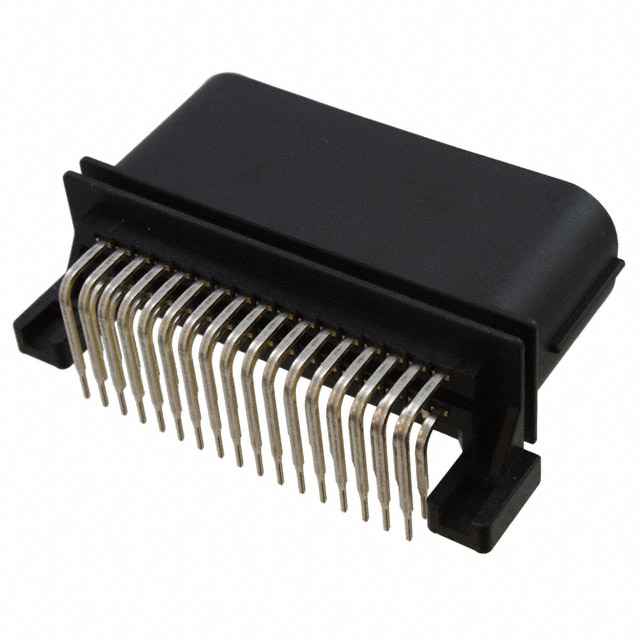

JAE Electronics MX23A34NF2	Automotive	0.122 in	3.1 mm	Latch Holder	Brass	4.4 mm	0.173 "	3 A	125 °C	-40 C	Solder	Right Angle Through Hole	Header	2.5 mm	0.098 in	Male Pin	Tin	Square	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	Board Guide	Shrouded - 4 Wall	2	34	Waterproof	Black	0.72 in	18.3 mm	All
JAE Electronics MX23A34NF3	Automotive	0.122 in	3.1 mm	Latch Holder	Brass	4.4 mm	0.173 "	3 A	125 °C	-40 C	Solder	Right Angle Through Hole	Header	2.5 mm	0.098 in	Male Pin	Tin	Square	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	Mounting Flange	Shrouded - 4 Wall	2	34	Waterproof	Black	0.72 in	18.3 mm	All
JAE Electronics MX23A34NF6	Automotive	0.122 in	3.1 mm	Latch Holder	Brass	4.4 mm	0.173 "	3 A	125 °C	-40 C	Solder	Right Angle Through Hole	Header	2.5 mm	0.098 in	Male Pin	Tin	Square	Board to Cable/Wire	Polybutylene Terephthalate (PBT) Glass Filled	Board Guide	Shrouded - 4 Wall	2	34	Waterproof	Black	0.72 in	18.3 mm	All
