CP10 Series
Manufacturer: PULS, LP
Beta
⌘K

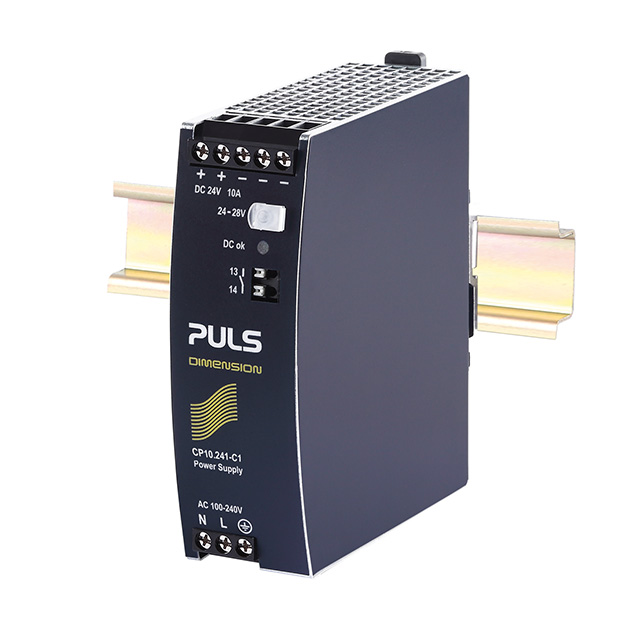

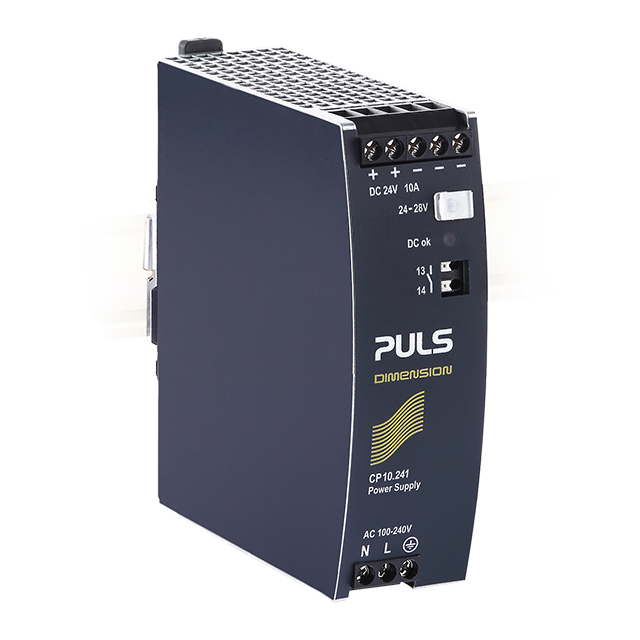

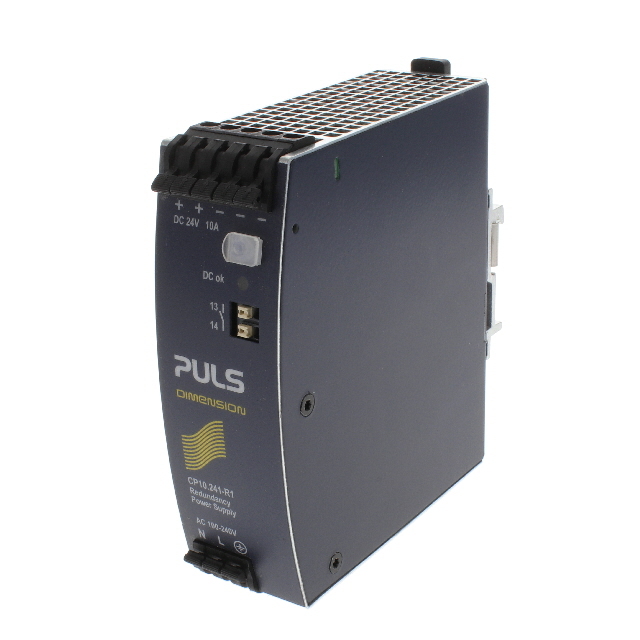

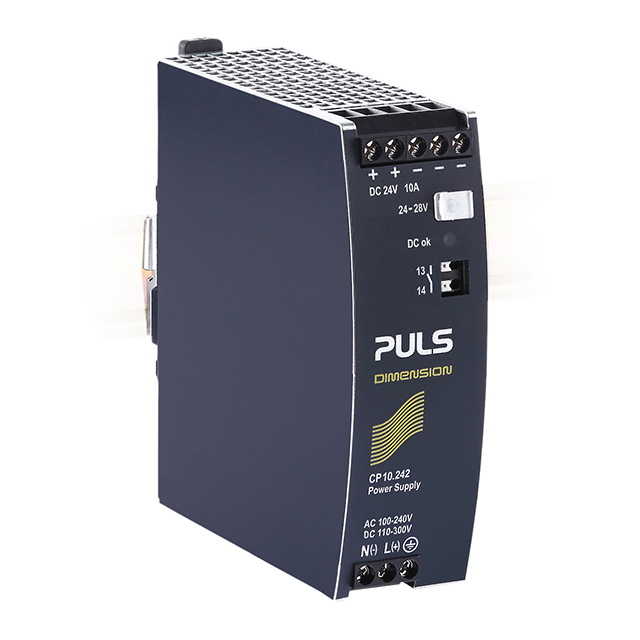

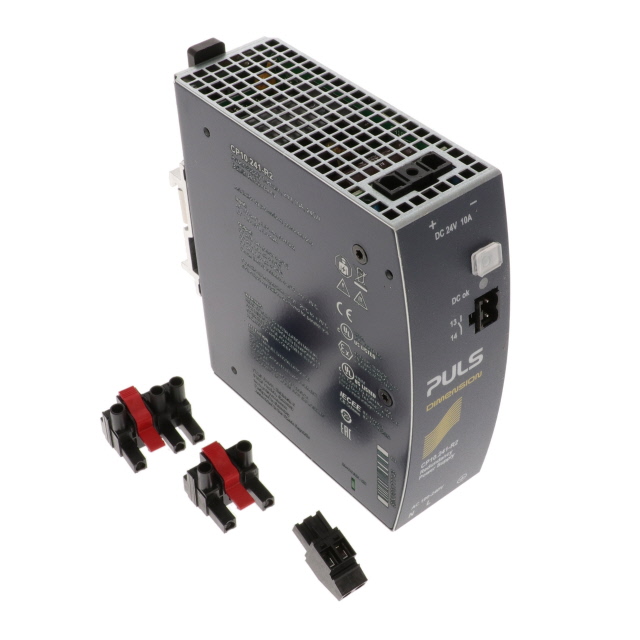

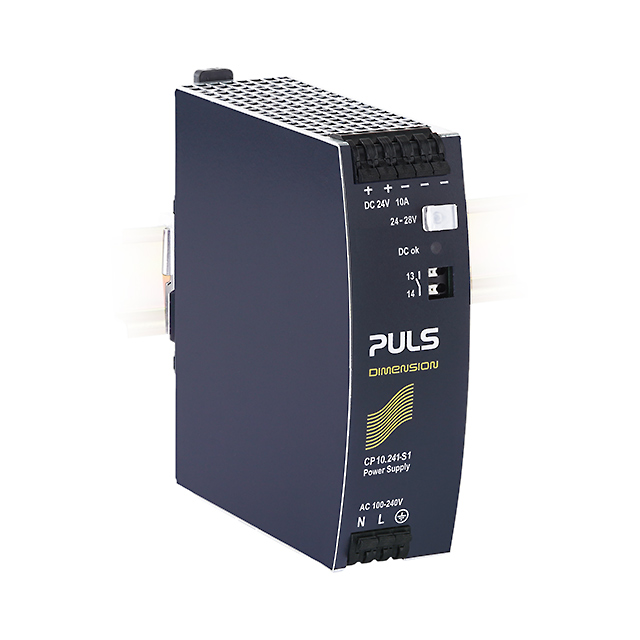

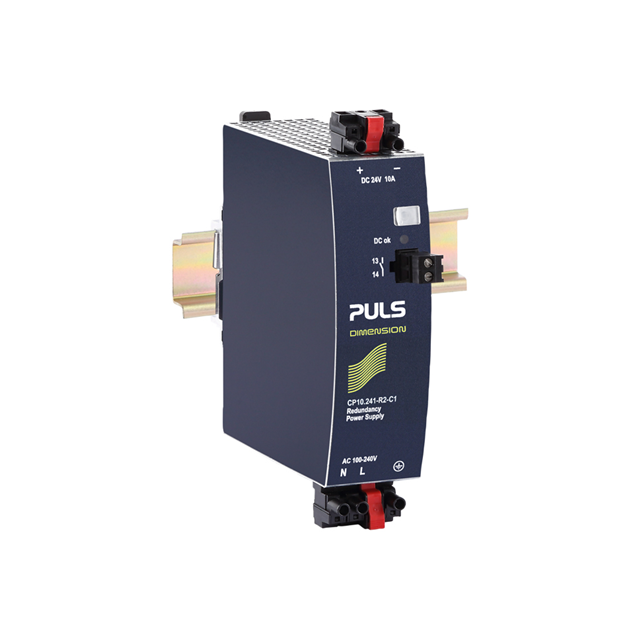

AC/DC DIN RAIL SUPPLY 24V 240W
| Part | AC Voltage - Input (Max) | AC Voltage - Input (Min) | Applications | Efficiency | Number of Outputs | Approval Agency | Size / Dimension Width | Size / Dimension Length | Size / Dimension Height | Power (Watts) | Features | Input Type | Standard Number | Voltage - Output 1 | Operating Temperature (Max) | Operating Temperature (Min) | Current - Output (Max) | Voltage - Isolation | DC Voltage - Input (Min) | DC Voltage - Input (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PULS, LP | 264 VAC | 85 VAC | Hazardous Locations Industrial ITE (Commercial) Laboratory | 94.7 % | 1 | CE cULus EAC | 1.54 in | 4.61 in | 4.88 in | 240 W | Adjustable Output IP20 Load Sharing PFC Universal Input | AC | 508 60950-1 61010-1 62368-1 ATEX | 24 V | 70 °C | -25 °C | 10 A | 500 V | ||
 PULS, LP | 264 VAC | 85 VAC | Hazardous Locations ITE (Commercial) | 95.2 % | 1 | ABS ATEX DNV GL EAC IEC IECEx UL | 1.54 in | 4.61 in | 4.88 in | 240 W | Adjustable Output PFC Universal Input | AC | 508 60950-1 61010-2-201 Class I Div 2 | 24 V | 70 °C | -10 °C | 10 A | 3 kV | ||
 PULS, LP | 264 VAC | 85 VAC | Industrial ITE (Commercial) | 93.6 % | 1 | ATEX EAC IEC IECEx UL | 1.54 in | 4.61 in | 4.88 in | 240 W | Adjustable Output IP20 Load Sharing PFC Universal Input | AC AC or DC DC | 60950-1 61010-2-201 62368-1 Class I Div 2 | 24 V | 70 °C | -25 °C | 10 A | 500 V | 110 V | 150 V |
 PULS, LP | 264 VAC | 85 VAC | Hazardous Locations ITE (Commercial) | 95.2 % | 1 | ABS ATEX DNV GL EAC IEC IECEx UL | 1.54 in | 4.61 in | 4.88 in | 240 W | Adjustable Output PFC Universal Input | AC | 508 60950-1 61010-2-201 Class I Div 2 | 24 V | 70 °C | -25 °C | 10 A | 3 kV | ||
 PULS, LP | 240 VAC | 100 VAC | Hazardous Locations ITE (Commercial) | 95.1 % | 1 | ABS ATEX CSA DNV GL EAC IEC IECEx UL | 1.54 in | 4.61 in | 4.88 in | 240 W | Adjustable Output PFC Universal Input | AC | 508 60950-1 61010-2-201 Class I Div 2 | 36 V | 70 °C | -25 °C | 6.7 A | 3 kV | ||
 PULS, LP | 264 VAC | 90 VAC | Hazardous Locations ITE (Commercial) | 95.5 % | 1 | ABS ATEX DNV GL EAC IEC IECEx UL | 1.54 in | 4.61 in | 4.88 in | 240 W | Adjustable Output PFC Universal Input | AC | 508 60950-1 61010-2-201 Class I Div 2 | 48 V | 70 °C | -25 °C | 5.4 A | 3 kV | ||

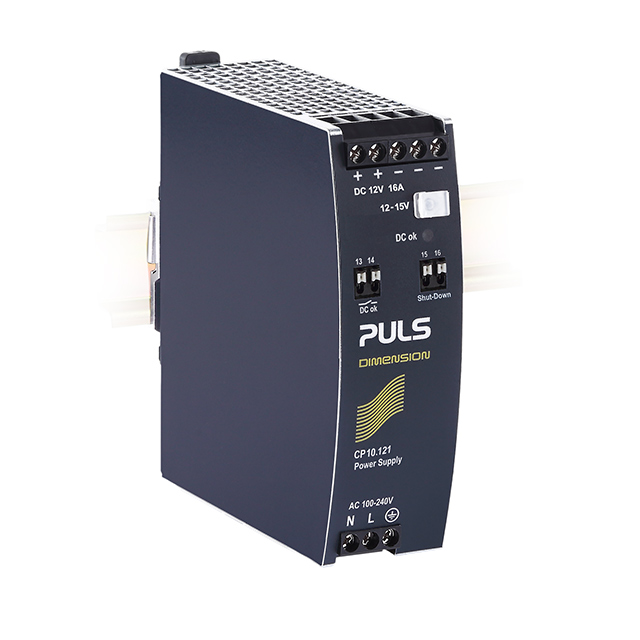

 PULS, LP | 264 VAC | 85 VAC | Hazardous Locations ITE (Commercial) | 94.3 % | 1 | ABS ATEX CSA DNV GL EAC IEC IECEx UL | 1.54 in | 4.61 in | 4.88 in | 192 W | Adjustable Output PFC Universal Input | AC | 508 60950-1 61010-2-201 Class I Div 2 | 12 V | 70 °C | -25 °C | 16 A | 3 kV | ||
 PULS, LP | 264 VAC | 85 VAC | Hazardous Locations Industrial ITE (Commercial) Laboratory | 94.7 % | 1 | CE cULus EAC | 1.54 in | 4.61 in | 4.88 in | 240 W | Adjustable Output IP20 Load Sharing PFC Universal Input | AC | 508 60950-1 61010-1 62368-1 ATEX | 24 V | 70 °C | -25 °C | 10 A | 500 V | ||
 PULS, LP | 264 VAC | 85 VAC | Hazardous Locations ITE (Commercial) | 95.2 % | 1 | ABS ATEX DNV GL EAC IEC IECEx UL | 1.54 in | 4.61 in | 4.88 in | 240 W | Adjustable Output PFC Universal Input | AC | 508 60950-1 61010-2-201 Class I Div 2 | 24 V | 70 °C | -10 °C | 10 A | 3 kV | ||
 PULS, LP | 264 VAC | 85 VAC | Hazardous Locations ITE (Commercial) | 95.2 % | 1 | ATEX DNV GL EAC IEC IECEx UL | 1.54 in | 4.61 in | 4.88 in | 240 W | Adjustable Output PFC Universal Input | AC AC or DC DC | 508 60950-1 61010-2-201 Class I Div 2 | 24 V | 70 °C | -25 °C | 10 A | 110 V | 150 V |
