GBC06D Series

Catalog

CONN HEADER SMD 12POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Fastening Type	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Positions	Insulation Height	Insulation Height	Current Rating (Amps)	Termination	Pitch - Mating	Pitch - Mating	Contact Shape	Shrouding	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Length - Mating	Contact Length - Mating	Contact Type	Contact Finish - Mating	Insulation Color	Style	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Connector Type
Sullins Connector Solutions GBC06DFBN-M30	2.54 µm	100 µin	Surface Mount	Push-Pull	2	0.25 µm	10 µin	UL94 V-0	12	0.1 in	2.54 mm	3 A	Solder	0.1 "	2.54 mm	Square	Unshrouded	Nylon 9T Polyamide (PA9T)	150 °C	-65 ░C	Phosphor Bronze	8.08 mm	0.318 in	Male Pin	Gold	Black	Board to Board Cable	All	0.1 in	2.54 mm	Tin	Header Breakaway

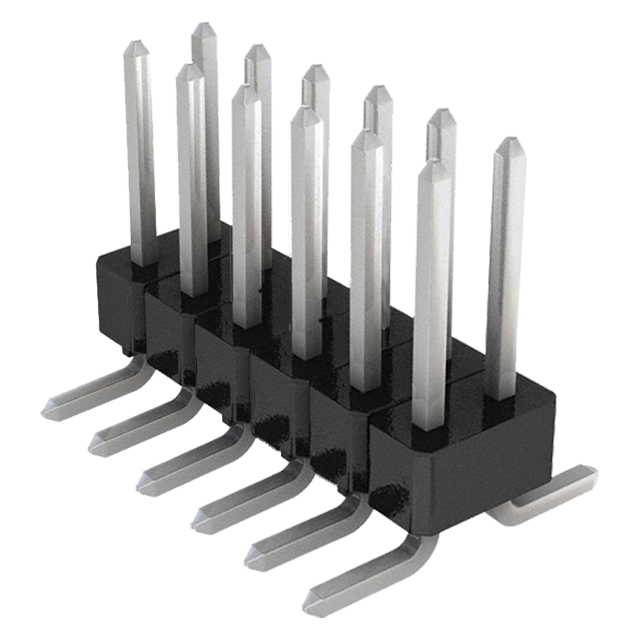

Sullins Connector Solutions GBC06DABN-M30	2.54 µm	100 µin	Surface Mount	Push-Pull	2	0.25 µm	10 µin	UL94 V-0	12	0.1 in	2.54 mm	3 A	Solder	0.1 "	2.54 mm	Square	Unshrouded	Nylon 9T Polyamide (PA9T)	150 °C	-65 ░C	Phosphor Bronze	5.84 mm	0.23 in	Male Pin	Gold	Black	Board to Board Cable	All	0.1 in	2.54 mm	Tin	Header Breakaway
