RC1180 Series
Manufacturer: Radiocrafts AS
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
RF TXRX MOD ISM<1GHZ CAST SMD
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Data Rate | Protocol | RF Family/Standard | Package / Case | Utilized IC / Part | Antenna Type | Current - Receiving | Power - Output | Serial Interfaces | Current - Transmitting | Sensitivity | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Frequency | Mounting Type | Frequency (Max) | Frequency (Min) | Modulation | For Use With/Related Products | Supplied Contents | Contents | Function | Interface | Modulation or Protocol | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiocrafts AS | -40 °C | 85 °C | 100 kbps | Wireless M-Bus | General ISM < 1GHz | Module | CC1110 | Antenna Not Included Castellation | 24 mA | 10 dBm | UART | 37 mA | -106 dBm | 3.6 V | 2 V | 868 MHz | Surface Mount | ||||||||||

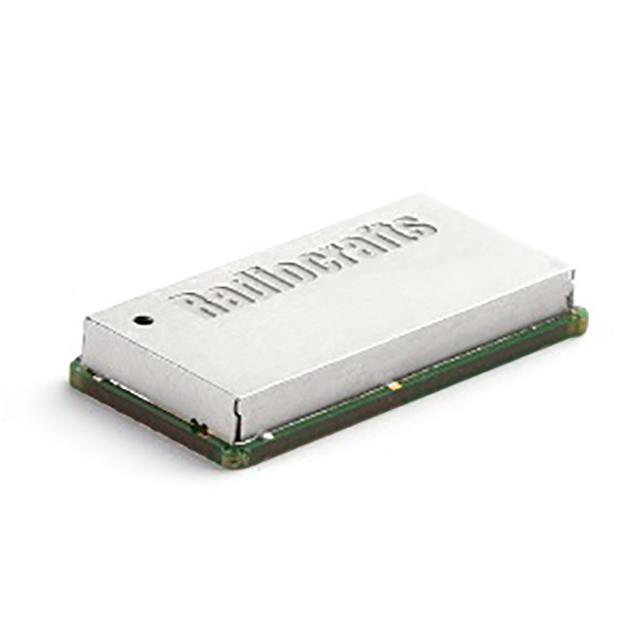

 Radiocrafts AS | -40 °C | 85 °C | 100 kbps | Wireless M-Bus | General ISM < 1GHz | Module | Antenna Not Included | 27 mA | 27 dBm | UART | 95 mA 120 mA | -110 dBm -106 dBm | 3.6 V | 2 V | 868 MHz | Surface Mount | 870 MHz | 868 MHz | |||||||||
 Radiocrafts AS | |||||||||||||||||||||||||||
Radiocrafts AS | -40 °C | 85 °C | 100 kbps | RC232 | General ISM < 1GHz | Module | CC1110 | Antenna Not Included Castellation | 24 mA | 10 dBm | UART | 37 mA | -110 dBm | 3.6 V | 2 V | 868 MHz | Surface Mount | 870 MHz | 868 MHz | GFSK | |||||||

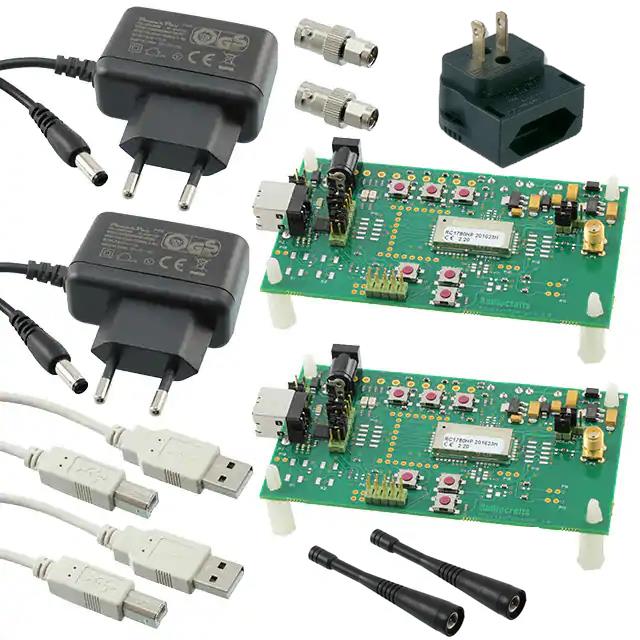

 Radiocrafts AS | RC1180HP | 869.525 MHz | RC1180HP | Accessories Board(s) Cable(s) Power Supply | Accessories Board Cable Power Supply | ||||||||||||||||||||||
 Radiocrafts AS | 868 MHz | Transceiver ZigBee™ | USB | 802.15.4 Zigbee™ | General Purpose | ||||||||||||||||||||||
Radiocrafts AS | 868 MHz | Transceiver ZigBee™ | USB | 802.15.4 Zigbee™ | General Purpose |
