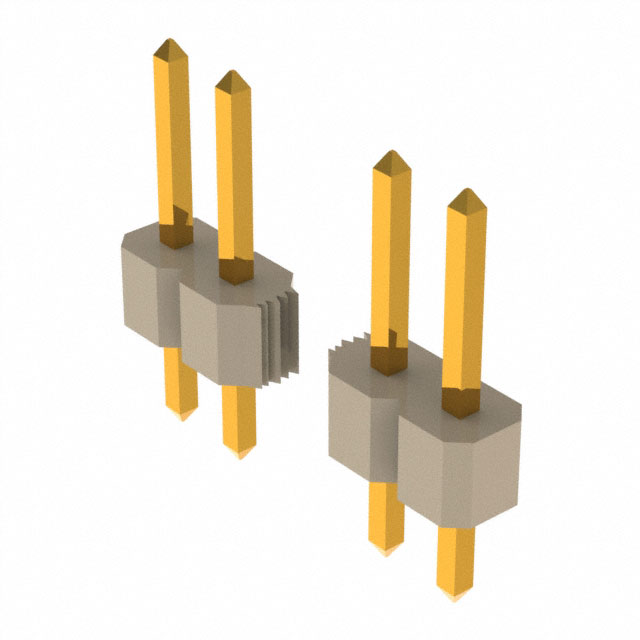

YMC36 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HEADER VERT 36POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Type | Termination | Number of Positions Loaded | Number of Positions | Contact Finish Thickness - Mating | Shrouding | Contact Length - Post | Contact Finish - Post | Insulation Color | Insulation Material | Overall Contact Length | Connector Type | Current Rating | Mounting Type | Style | Material Flammability Rating | Operating Temperature (Max) | Operating Temperature (Min) | Insulation Height | Pitch - Mating | Contact Material | Contact Shape | Contact Finish - Mating | Fastening Type | Number of Rows | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 10 µin | Male Pin | Solder | All | 36 | 30 µin | Unshrouded | 0.12 in | Gold | Tan | Polyetheretherketone (PEEK) | 0.45 in | Breakaway Header | 3 A | Through Hole | Board Board or Cable | UL94 V-0 | 250 °C | -65 °C | 0.1 in | 0.1 in | Beryllium Copper | Square | Gold | Push-Pull | 1 | 0.23 in |
