171971 Series

2.54mm Pitch SL Header, Single Row, Vertical, LCP, Shrouded, Through Hole, 0.75µm Selective Gold (Au) Plating, 13 Circuits

Manufacturer: Molex

Catalog

2.54mm Pitch SL Header, Single Row, Vertical, LCP, Shrouded, Through Hole, 0.75µm Selective Gold (Au) Plating, 13 Circuits

Part	Contact Shape	Connector Type	Voltage Rating	Applications	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Number of Rows	Number of Positions	Contact Type	Insulation Height	Insulation Height	Termination	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Current Rating (Amps)	Contact Finish - Post	Features	Contact Material	Contact Length - Mating	Contact Length - Mating [x]	Contact Length - Post	Contact Length - Post	Style	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating

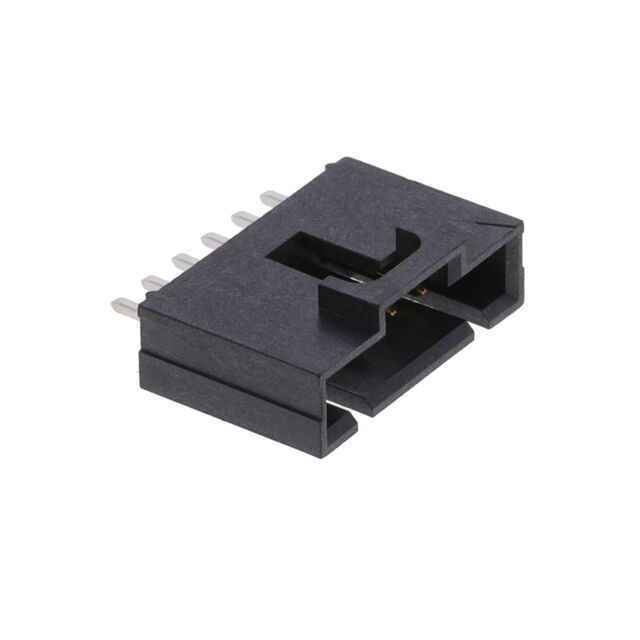

Molex 1719710106	Circular	Header	250 VDC	General Purpose	UL94 V-0	Black	All	1	6	Male Pin	0.465 in	11.8 mm	Solder	Gold	15 µin	0.38 µm	Latch Holder	3 A	Tin	Polarizing Key	Brass	6.1 mm	0.24 in	0.13 in	3.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Through Hole	2 çm	78.7 çin	0.1 in	2.54 mm

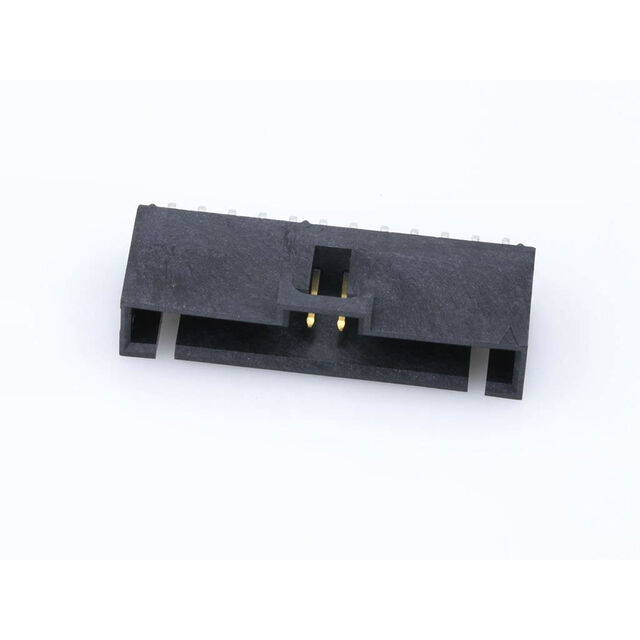

Molex 1719710212	Circular	Header	250 VDC	General Purpose	UL94 V-0	Black	All	1	12	Male Pin	0.465 in	11.8 mm	Solder	Gold	29.5 Áin	0.75 Ám	Latch Holder	3 A	Tin	Polarizing Key	Brass	6.1 mm	0.24 in	0.13 in	3.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Through Hole	2 çm	78.7 çin	0.1 in	2.54 mm
Molex 1719710007	Circular	Header	250 VDC	General Purpose	UL94 V-0	Black	All	1	7	Male Pin	0.465 in	11.8 mm	Solder		100 çin	2.54 çm	Latch Holder	3 A	Tin	Polarizing Key	Brass	6.1 mm	0.24 in	0.13 in	3.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Through Hole	2.54 µm	100 µin	0.1 in	2.54 mm

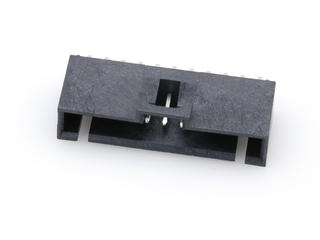

Molex 1719710111	Circular	Header	250 VDC	General Purpose	UL94 V-0	Black	All	1	11	Male Pin	0.465 in	11.8 mm	Solder	Gold	15 µin	0.38 µm	Latch Holder	3 A	Tin	Polarizing Key	Brass	6.1 mm	0.24 in	0.13 in	3.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Through Hole	2 çm	78.7 çin	0.1 in	2.54 mm
Molex 1719710011	Circular	Header	250 VDC	General Purpose	UL94 V-0	Black	All	1	11	Male Pin	0.465 in	11.8 mm	Solder		100 çin	2.54 çm	Latch Holder	3 A	Tin	Polarizing Key	Brass	6.1 mm	0.24 in	0.13 in	3.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Through Hole	2.54 µm	100 µin	0.1 in	2.54 mm
Molex 1719710110	Circular	Header	250 VDC	General Purpose	UL94 V-0	Black	All	1	10	Male Pin	0.465 in	11.8 mm	Solder	Gold	15 µin	0.38 µm	Latch Holder	3 A	Tin	Polarizing Key	Brass	6.1 mm	0.24 in	0.13 in	3.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Through Hole	2 çm	78.7 çin	0.1 in	2.54 mm

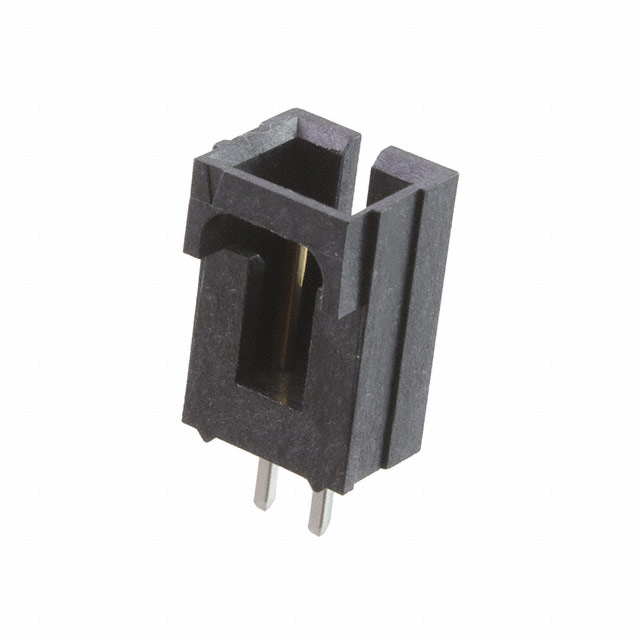

Molex 1719710102	Circular	Header	250 VDC	General Purpose	UL94 V-0	Black	All	1	2	Male Pin	0.465 in	11.8 mm	Solder	Gold	15 µin	0.38 µm	Latch Holder	3 A	Tin	Polarizing Key	Brass	6.1 mm	0.24 in	0.13 in	3.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Through Hole	2 çm	78.7 çin	0.1 in	2.54 mm
Molex 1719710222	Circular	Header	250 VDC	General Purpose	UL94 V-0	Black	All	1	22 positions	Male Pin	0.465 in	11.8 mm	Solder	Gold	29.5 Áin	0.75 Ám	Latch Holder	3 A	Tin	Polarizing Key	Brass	6.1 mm	0.24 in	0.13 in	3.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Through Hole	2 çm	78.7 çin	0.1 in	2.54 mm
Molex 1719710125	Circular	Header	250 VDC	General Purpose	UL94 V-0	Black	All	1		Male Pin	0.465 in	11.8 mm	Solder	Gold	15 µin	0.38 µm	Latch Holder	3 A	Tin	Polarizing Key	Brass	6.1 mm	0.24 in	0.13 in	3.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Through Hole	2 çm	78.7 çin	0.1 in	2.54 mm
Molex 1719710015	Circular	Header	250 VDC	General Purpose	UL94 V-0	Black	All	1	15	Male Pin	0.465 in	11.8 mm	Solder		100 çin	2.54 çm	Latch Holder	3 A	Tin	Polarizing Key	Brass	6.1 mm	0.24 in	0.13 in	3.3 mm	Board to Cable/Wire	Shrouded - 4 Wall	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	Through Hole	2.54 µm	100 µin	0.1 in	2.54 mm
