FD400R12 Series

Manufacturer: INFINEON

Catalog

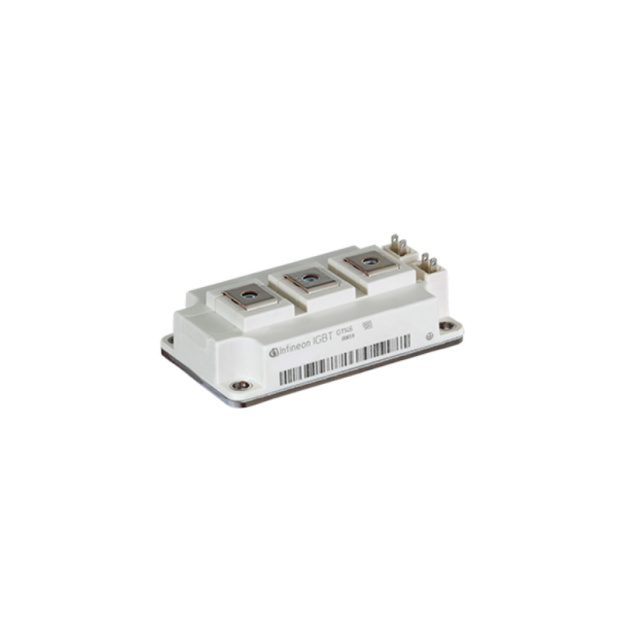

THE FD400R12KE3 IS A CHOPPER IGBT3 - E3 MODULE IN A 62 MM HOUSING FOR INDUSTRIAL APPLICATIONS UP TO 1200 V AND 400 A.

Part	Vce(on) (Max) @ Vge, Ic	Input Capacitance (Cies) @ Vce	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Configuration	NTC Thermistor	Current - Collector (Ic) (Max) [Max]	IGBT Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Input	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic [Max]
INFINEON FD400R12KE3HOSA1	2.15 V	28 nF	Module	5 mA	Single Chopper		580 A	Trench Field Stop	Module	125 °C	-40 C	Chassis Mount	Standard	2000 W	1200 V
INFINEON FD400R07PE4RB6BOSA1		18.5 nF	Module	20 µA	Three Phase Inverter		460 A	Trench Field Stop	Module	150 °C	-40 C	Chassis Mount	Standard	1150 W	650 V	1.95 V
