TAS5825P Series

4.5V to 26.4V Class-H control digital-in Class-D audio amp with ultra-low idle & superior efficiency

Catalog

4.5V to 26.4V Class-H control digital-in Class-D audio amp with ultra-low idle & superior efficiency

Part	Board Type	Utilized IC / Part	Output Type	Supplied Contents	Voltage - Supply [Min]	Voltage - Supply [Max]	Max Output Power x Channels @ Load	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Supplier Device Package

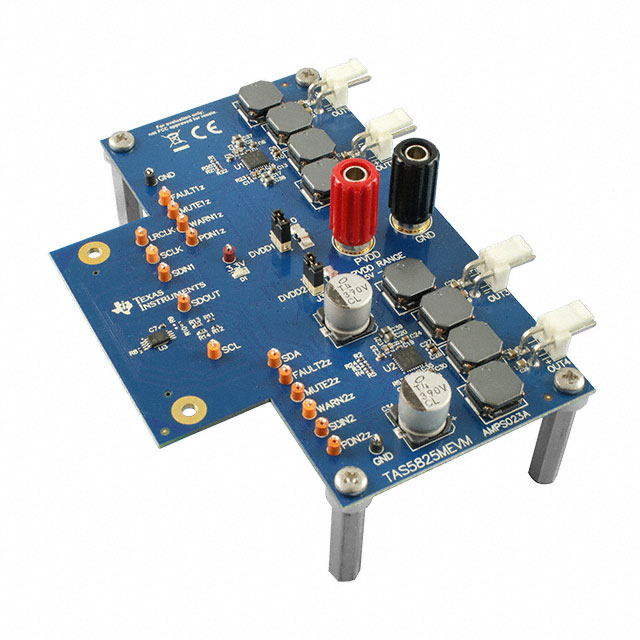

Texas Instruments TAS5825MEVM	Fully Populated	TAS5825M	1-Channel (Mono) or 2-Channel (Stereo)	Board(s)

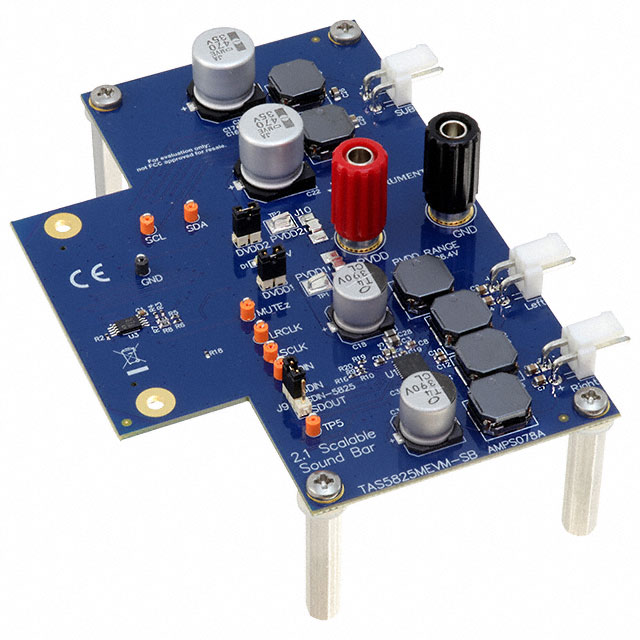

Texas Instruments TAS5825MEVM-SB	Fully Populated	TAS5720M TAS5825M	2-Channel (Stereo) with Subwoofer	Board(s)	4.5 V	26.4 V

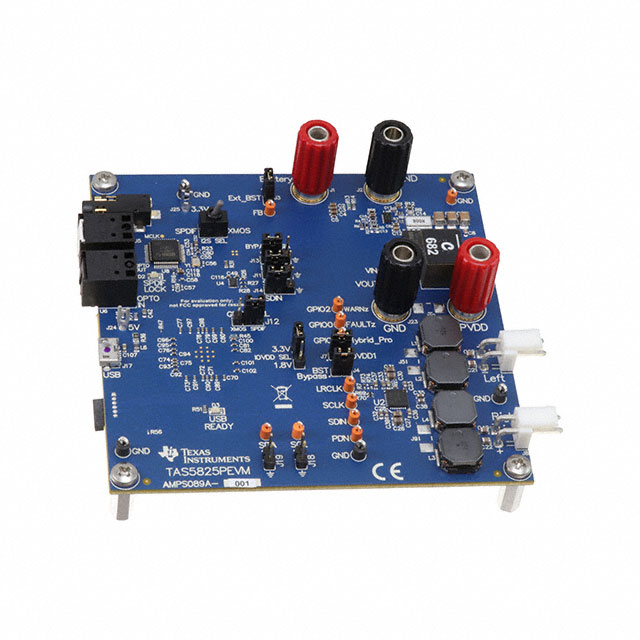

Texas Instruments TAS5825PEVM	Fully Populated	TAS5825P	2-Channel (Stereo)	Board(s)			2 channels 65 W
Texas Instruments TAS5825PRHBR			2-Channel (Stereo)		4.5 V	26.4 V	17.8 W 38 W	Surface Mount	85 C	-25 °C	32-VFQFN Exposed Pad	Class D	32-VQFN (5x5)

Catalog

4.5V to 26.4V Class-H control digital-in Class-D audio amp with ultra-low idle & superior efficiency

Key Features

• High-efficiency Class-D operation with Hybrid-Pro:Approximately 50% longer battery life compared to fixed supply voltage solutions> 90% Power efficiency, 90 mΩ RDS(on)Low quiescent current, < 20 mA at 12 V PVDDSupports multiple output configurations:1 × 53 W, 1.0 Mode (4-Ω, 22 V, THD+N=1%)1 × 65 W, 1.0 Mode (4-Ω, 22 V, THD+N=10%)2 × 30 W, 2.0 Mode (8-Ω, 24 V, THD+N=1%)2 × 38 W, 2.0 Mode (8-Ω, 24 V, THD+N=10%)Excellent audio performance:THD+N ≤ 0.03% at 1 W, 1 kHz, PVDD = 12 VSNR ≥ 110 dB (A-weighted), ICN ≤ 35 µVRMSFlexible audio I/O:Supports 32, 44.1, 48, 88.2, 96 kHz SRSupports I2S, LJ, RJ, TDM formatSupports 3-wire digital audio interfaceFlexible processing features:3-Band advanced DRC + AGL, 2 × 15 BQsPVDD sensing to avoid clipping distortion while voltage rail dropsUp to 4 ms lookahead delay buffer for Hybrid-Pro algorithm audio signal trackingOptional 8 or 16 Hybrid-Pro DC-DC control steps with max 10 ms peak sample holdFlexible power supply configurations:PVDD: 4.5 V to 26.4 VDVDD and I/O: 1.8 V or 3.3 VExcellent integrated self-protection:Over-current error (OCE)Cycle-by-cycle current limitOver-temperature warning (OTW)Over-temperature error (OTE)Under, over-voltage lock-out (UVLO, OVLO)Easy system integration:I2C Software ControlReduced solution size:Small 5 × 5 mm packageFewer passives required compared to open-loop Class-D devicesNo bulky electrolytic capacitors or large inductors required for most applicationsHigh-efficiency Class-D operation with Hybrid-Pro:Approximately 50% longer battery life compared to fixed supply voltage solutions> 90% Power efficiency, 90 mΩ RDS(on)Low quiescent current, < 20 mA at 12 V PVDDSupports multiple output configurations:1 × 53 W, 1.0 Mode (4-Ω, 22 V, THD+N=1%)1 × 65 W, 1.0 Mode (4-Ω, 22 V, THD+N=10%)2 × 30 W, 2.0 Mode (8-Ω, 24 V, THD+N=1%)2 × 38 W, 2.0 Mode (8-Ω, 24 V, THD+N=10%)Excellent audio performance:THD+N ≤ 0.03% at 1 W, 1 kHz, PVDD = 12 VSNR ≥ 110 dB (A-weighted), ICN ≤ 35 µVRMSFlexible audio I/O:Supports 32, 44.1, 48, 88.2, 96 kHz SRSupports I2S, LJ, RJ, TDM formatSupports 3-wire digital audio interfaceFlexible processing features:3-Band advanced DRC + AGL, 2 × 15 BQsPVDD sensing to avoid clipping distortion while voltage rail dropsUp to 4 ms lookahead delay buffer for Hybrid-Pro algorithm audio signal trackingOptional 8 or 16 Hybrid-Pro DC-DC control steps with max 10 ms peak sample holdFlexible power supply configurations:PVDD: 4.5 V to 26.4 VDVDD and I/O: 1.8 V or 3.3 VExcellent integrated self-protection:Over-current error (OCE)Cycle-by-cycle current limitOver-temperature warning (OTW)Over-temperature error (OTE)Under, over-voltage lock-out (UVLO, OVLO)Easy system integration:I2C Software ControlReduced solution size:Small 5 × 5 mm packageFewer passives required compared to open-loop Class-D devicesNo bulky electrolytic capacitors or large inductors required for most applications

Description

TAS5825P is a stereo high-efficiency Closed-Loop audio Class-D audio amplifier with an advanced Hybrid-Pro algorithm to improve system efficiency and reduce heat without clipping distortion. The supply voltage (PVDD) of an audio amplifier is normally provided by a DC-DC converter. Compared with a fixed PVDD, a variable PVDD that fluctuates based on the audio signal significantly improves efficiency, lowers idle current, and reduces heat. The powerful audio DSP core of TAS5825P implements a proprietary algorithm called Hybrid-Pro. The Hybrid-Pro algorithm detects the upcoming audio power demand and provides a PWM control signal for the former DC-DC converter via the Hybrid-Pro feedback pin (HPFB). The TAS5825P supports up to 4 ms of delay buffer to look ahead at the audio signal and prevent audio clipping distortion. In various experiments, the TAS5825P increased the runtime of 1S and 2S batteries by greater than 50% while continuously playing music. TAS5825P is a stereo high-efficiency Closed-Loop audio Class-D audio amplifier with an advanced Hybrid-Pro algorithm to improve system efficiency and reduce heat without clipping distortion. The supply voltage (PVDD) of an audio amplifier is normally provided by a DC-DC converter. Compared with a fixed PVDD, a variable PVDD that fluctuates based on the audio signal significantly improves efficiency, lowers idle current, and reduces heat. The powerful audio DSP core of TAS5825P implements a proprietary algorithm called Hybrid-Pro. The Hybrid-Pro algorithm detects the upcoming audio power demand and provides a PWM control signal for the former DC-DC converter via the Hybrid-Pro feedback pin (HPFB). The TAS5825P supports up to 4 ms of delay buffer to look ahead at the audio signal and prevent audio clipping distortion. In various experiments, the TAS5825P increased the runtime of 1S and 2S batteries by greater than 50% while continuously playing music.
