090327 Series

Manufacturer: Molex

Catalog

6CKT CONN IDT PICOFLEX .050IN T&

Part	Cable Termination	Color	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Connector Type	Number of Positions	Pitch [x]	Pitch [x]	Mounting Type	Contact Finish	Wire Type	Features
Molex 0903273355	IDC	White	1	24 µin	0.61 µm	Female Socket	Receptacle	6	0.05 in	1.27 mm	Free Hanging (In-Line)	Palladium-Nickel	Ribbon Cable	Feed Through
Molex 0903273372	IDC	White	1	24 µin	0.61 µm	Female Socket	Receptacle	14	0.05 in	1.27 mm	Free Hanging (In-Line)	Palladium-Nickel	Ribbon Cable	Feed Through
Molex 0903273204	IDC	White	1	24 µin	0.61 µm	Female Socket	Receptacle	2	0.05 in	1.27 mm	Free Hanging (In-Line)	Palladium-Nickel	Ribbon Cable	Feed Through
Molex 0903270358	IDC	White	1	78.7 µin	2 µm	Female Socket	Receptacle	6	0.05 in	1.27 mm	Free Hanging (In-Line)	Tin	Ribbon Cable	Feed Through
Molex 0903270385	IDC	White	1	78.7 µin	2 µm	Female Socket	Receptacle	20	0.05 in	1.27 mm	Free Hanging (In-Line)	Tin	Ribbon Cable	Feed Through

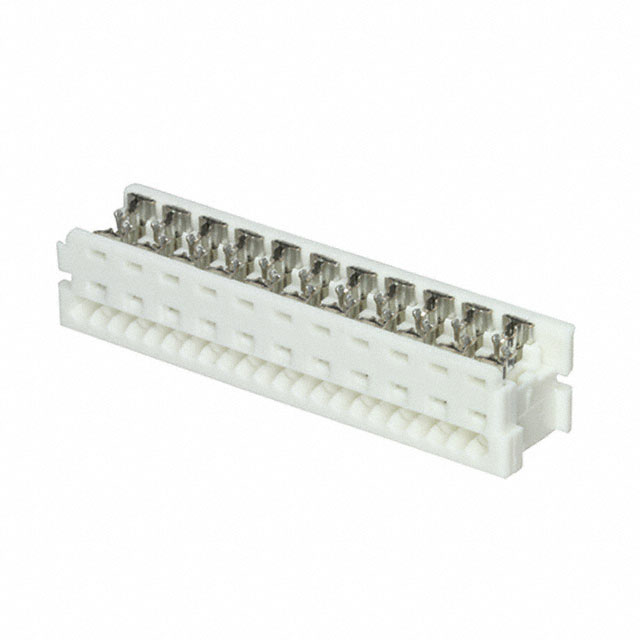

Molex 0903270322	IDC	White	1	78.7 µin	2 µm	Female Socket	Receptacle	22 positions	0.05 in	1.27 mm	Free Hanging (In-Line)	Tin	Ribbon Cable	Feed Through
Molex 0903270373	IDC	White	1	78.7 µin	2 µm	Female Socket	Receptacle	14	0.05 in	1.27 mm	Free Hanging (In-Line)	Tin	Ribbon Cable	Feed Through
Molex 0903270380	IDC	White	1	78.7 µin	2 µm	Female Socket	Receptacle	18	0.05 in	1.27 mm	Free Hanging (In-Line)	Tin	Ribbon Cable	Feed Through
Molex 0903270310	IDC	White	1	78.7 µin	2 µm	Female Socket	Receptacle	10	0.05 in	1.27 mm	Free Hanging (In-Line)	Tin	Ribbon Cable	Feed Through
Molex 0903273364	IDC	White	1	24 µin	0.61 µm	Female Socket	Receptacle	10	0.05 in	1.27 mm	Free Hanging (In-Line)	Palladium-Nickel	Ribbon Cable	Feed Through
