9G0624 Series

Catalog

FAN AXIAL 60X38MM 24VDC WIRE

Part	Material - Blade	Air Flow	Air Flow	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Power (Watts)	Weight	Weight	Termination	Fan Type	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Features	Approval Agency	Voltage - Rated	Bearing Type	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Noise	RPM
Sanyo Denki America Inc. 9G0624S1D01	Plastic	60 CFM	1.68 m³/min	0.7 A	Plastic	40000 Hrs	27.6 VDC	14	16.8 W	110.22 g	0.243 lb	3 Wire Leads	Tubeaxial	60 mm	60 mm	38 mm	Locked Rotor Sensor	CSA TUV UL	24 VDC	Ball	370.1 Pa	1.486 in H2O	-20 ░C	70 °C	56 dB	10800 RPM
Sanyo Denki America Inc. 9G0624P1G031	Plastic	65 CFM	1.82 m³/min	0.85 A	Plastic	40000 Hrs	27.6 VDC	14	20.4 W	110.22 g	0.243 lb	4 Wire Leads	Tubeaxial	60 mm	60 mm	38 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CSA TUV UL	24 VDC	Ball	435.2 Pa	1.747 in H2O	-20 ░C	70 °C	58 dB(A)	11800 RPM
Sanyo Denki America Inc. 9G0624P4S0011	Plastic	49.4 CFM	1.38 m³/min	0.34 A	Plastic	40000 Hrs			8.16 W	90.26 g	0.199 lb	4 Wire Leads	Tubeaxial	60 mm	60 mm	25 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CSA TUV UL	24 VDC	Ball	298.9 Pa	1.2 in H2O	-20 ░C	70 °C	53 dB	11000 RPM

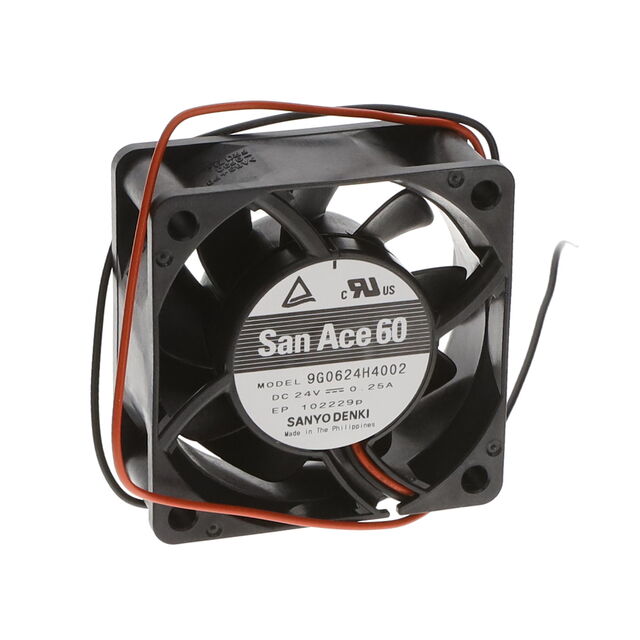

Sanyo Denki America Inc. 9G0624H4002	Plastic	42.7 CFM	1.2 m³/min	0.25 A	Plastic	40000 Hrs			6 W	90.26 g	0.199 lb	2 Wire Leads	Tubeaxial	60 mm	60 mm	25 mm		cURus TUV	24 VDC	Ball	224.2 Pa	0.9 in H2O	-20 ░C	70 °C	49 dB	9500 RPM
Sanyo Denki America Inc. 9G0624S1021	Plastic	60 CFM	1.68 m³/min	0.7 A	Plastic	40000 Hrs	27.6 VDC	14	16.8 W	110.22 g	0.243 lb	2 Wire Leads	Tubeaxial	60 mm	60 mm	38 mm		CSA TUV UL	24 VDC	Ball	370.1 Pa	1.486 in H2O	-20 ░C	70 °C	56 dB	10800 RPM
Sanyo Denki America Inc. 9G0624P4H0011	Plastic	42.7 CFM	1.2 m³/min	0.25 A	Plastic	40000 Hrs			6 W	90.26 g	0.199 lb	4 Wire Leads	Tubeaxial	60 mm	60 mm	25 mm	Locked Rotor Protection PWM Control Speed Sensor (Tach)	cURus TUV	24 VDC	Ball	224.2 Pa	0.9 in H2O	-20 ░C	70 °C	49 dB	9500 RPM
Sanyo Denki America Inc. 9G0624H40021	Plastic	42.7 CFM	1.2 m³/min	0.25 A	Plastic	40000 Hrs			6 W	90.26 g	0.199 lb	2 Wire Leads	Tubeaxial	60 mm	60 mm	25 mm		cURus TUV	24 VDC	Ball	224.2 Pa	0.9 in H2O	-20 ░C	70 °C	49 dB	9500 RPM
Sanyo Denki America Inc. 9G0624H4001	Plastic	42.7 CFM	1.2 m³/min	0.25 A	Plastic	40000 Hrs			6 W	90.26 g	0.199 lb	3 Wire Leads	Tubeaxial	60 mm	60 mm	25 mm	Locked Rotor Protection Speed Sensor (Tach)	cURus TUV	24 VDC	Ball	224.2 Pa	0.9 in H2O	-20 ░C	70 °C	49 dB	9500 RPM
Sanyo Denki America Inc. 9G0624H102	Plastic	54.4 CFM	1.52 m³/min		Plastic	40000 Hrs	27.6 VDC	14	13.68 W	110.22 g	0.243 lb	2 Wire Leads	Tubeaxial	60 mm	60 mm	38 mm		CSA TUV UL	24 VDC	Ball	304.6 Pa	1.223 in H2O	-20 ░C	70 °C	54 dB	9800 RPM

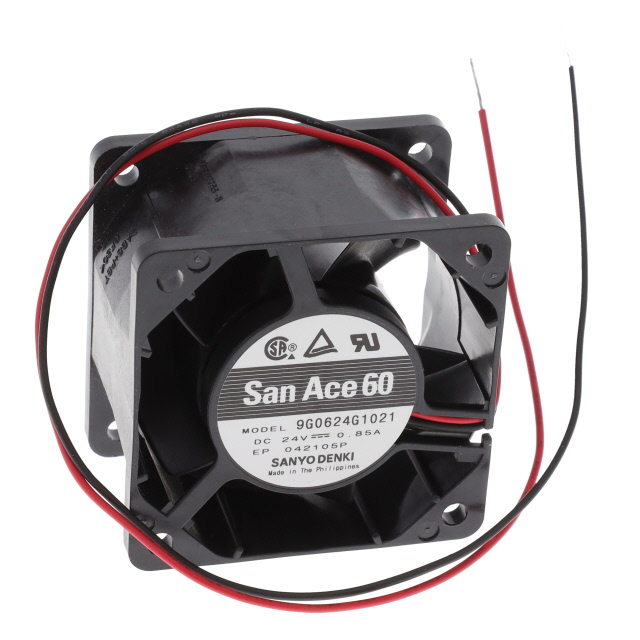

Sanyo Denki America Inc. 9G0624G1021	Plastic	65 CFM	1.82 m³/min	0.85 A	Plastic	40000 Hrs	27.6 VDC	14	20.4 W	110.22 g	0.243 lb	2 Wire Leads	Tubeaxial	60 mm	60 mm	38 mm		CSA TUV UL	24 VDC	Ball	435.2 Pa	1.747 in H2O	-20 ░C	70 °C	58 dB(A)	11800 RPM
