737-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

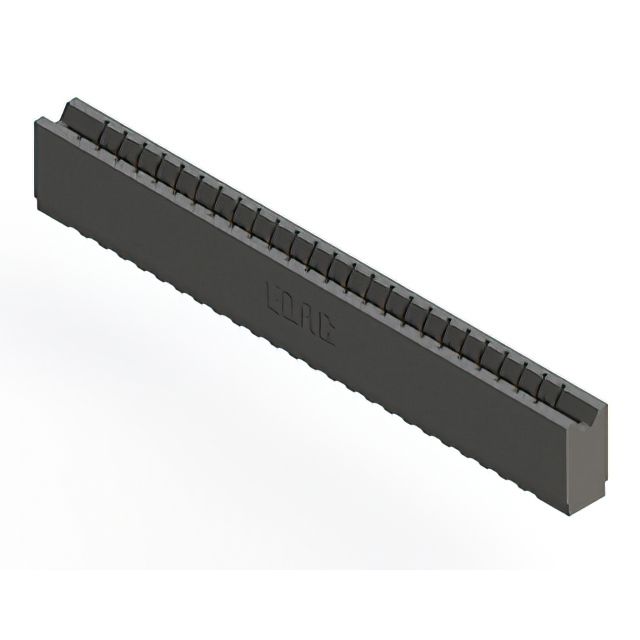

CONN EDGE SGL FMALE 25POS 0.156
| Part | Termination Rows | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Pitch | Pitch | Card Thickness [Max] | Card Thickness [Min] | Mounting Type | Read Out | Gender | Contact Material | Contact Type | Number of Positions/Bay/Row | Number of Rows | Color | Contact Finish Thickness | Contact Finish Thickness | Termination | Card Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Gold | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Single | Female | Copper Alloy | Cantilever | 25 | 1 | Black | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Non Specified - Single Edge | 25 |
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Gold | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Single | Female | Copper Alloy | Cantilever | 25 | 1 | Black | 30 Áin | 0.76 Ám | Press-Fit | Non Specified - Single Edge | 25 |
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Gold | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Single | Female | Copper Alloy | Cantilever | 25 | 1 | Black | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Non Specified - Single Edge | 25 |
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Gold | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Single | Female | Copper Alloy | Cantilever | 25 | 1 | Black | 30 Áin | 0.76 Ám | Press-Fit | Non Specified - Single Edge | 25 |
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Gold | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Single | Female | Copper Alloy | Cantilever | 25 | 1 | Black | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Non Specified - Single Edge | 25 |
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Gold | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Single | Female | Copper Alloy | Cantilever | 25 | 1 | Black | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Non Specified - Single Edge | 25 |
 EDAC Inc. | 1 | Polyester Thermoplastic | -40 C | 105 ░C | Gold | 3.96 mm | 0.156 in | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Through Hole | Single | Female | Copper Alloy | Cantilever | 25 | 1 | Black | 30 Áin | 0.76 Ám | Press-Fit Wire Wrap | Non Specified - Single Edge | 25 |
