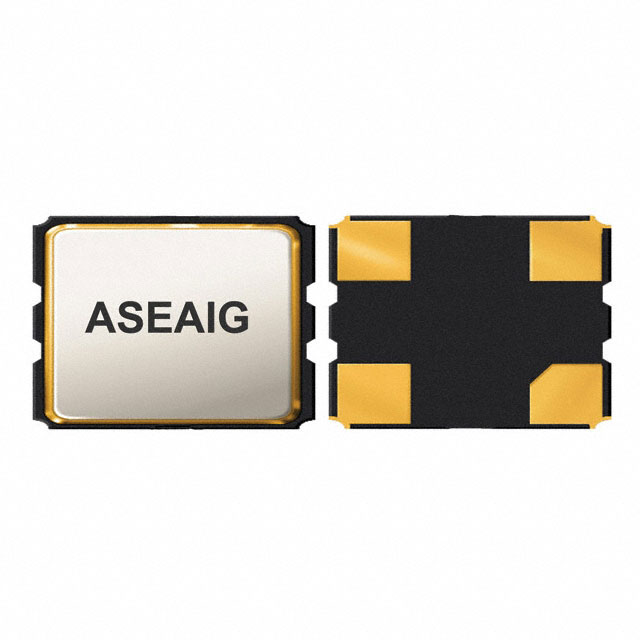

ASEAIG Series

Catalog

STANDARD CLOCK OSCILLATORS CRYSTAL OSCILLATOR 3225 4-SMD 40MHZ +/-30PPM -40°C ~ 105°C CMOS 3.3V

Part	Frequency Stability	Base Resonator [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Frequency	Type	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Function	Voltage - Supply	Current - Supply (Max) [Max]	Output	Operating Temperature [Min]	Operating Temperature [Max]
Abracon LLC ASEAIG-40.000MHZ-X-K-S-T	30 ppm	Crystal	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	40 MHz	XO (Standard)	3.2	2.5	4-SMD	AEC-Q200	1.2 mm	0.047 "	Surface Mount	Enable/Disable	3.3 V	13 mA	CMOS	-40 C	105 ░C
Abracon LLC ASEAIG-16.000MHZ-X-K-S-T	30 ppm	Crystal	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	16 MHz	XO (Standard)	3.2	2.5	4-SMD	AEC-Q200	1.2 mm	0.047 "	Surface Mount	Enable/Disable	3.3 V	7 mA	CMOS	-40 C	105 ░C
Abracon LLC ASEAIG2-26.000MHZ-X-K-S-T	30 ppm	Crystal	2.5 mm	0.098 in	3.2 mm	0.126 "	4-SMD No Lead	26 MHz	XO (Standard)	3.2	2.5	4-SMD	AEC-Q200	1.2 mm	0.047 "	Surface Mount	Enable/Disable	2.5 V	8 mA	CMOS	-40 C	105 ░C
