SP Series

Catalog

CONN 3.5MM STEREO PLUG PL 3 POS SOLDER ST CABLE MOUNT 3 TERMINAL 1 PORT

Part	Termination	Contact Material - Plating	Shielding	Connector Type	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Mounting Type	Insulation Color	Housing Material	Current Rating (Amps)	Body Material	Voltage - Rated	Gender	Actual Diameter [diameter]	Actual Diameter [diameter]	Body Color	Signal Lines	Mating Length/Depth	Mating Length/Depth	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Industry Recognized Mating Diameter	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]
Same Sky (Formerly CUI Devices) SP-3533-01	Solder	Nickel	Unshielded	Phone Plug	3	3	Free Hanging (In-Line)	Black	Brass	1 A	Brass	12 VDC	Male	0.126 in	3.2 mm	Silver	Stereo (3 Conductor TRS)	14 mm	0.551 in	0.125 in	3.5 mm	0.141 in	Brass	-25 °C	70 °C

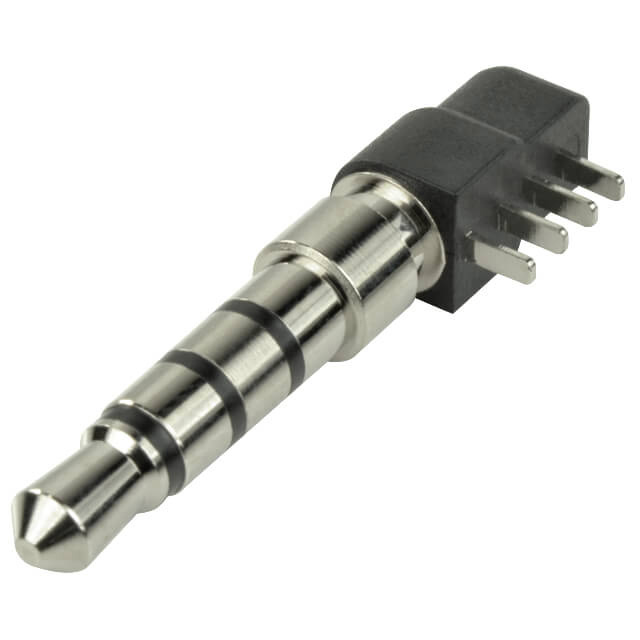

Same Sky (Formerly CUI Devices) SP-3541	Solder	Nickel	Unshielded	Phone Plug	4	4	Right Angle Through Hole	Black	Polyamide (PA) Nylon	1 A	Brass	12 VDC	Male	0.126 in	3.2 mm	Black Silver	Stereo (4 Conductor TRRS)	14 mm	0.551 in	0.125 in	3.5 mm	0.141 in	Brass	-25 °C	70 °C
Same Sky (Formerly CUI Devices) SP-3541	Solder		Unshielded	Phone Plug	4	4	Right Angle Through Hole	Black					Male	0.126 in	3.2 mm		Stereo (4 Conductor TRRS)			0.125 in	3.5 mm	0.141 in		-25 °C	70 °C
Same Sky (Formerly CUI Devices) SP-3533-01	Solder		Unshielded	Phone Plug	3	3	Free Hanging (In-Line)	Black					Male	0.126 in	3.2 mm		Stereo (3 Conductor TRS)			0.125 in	3.5 mm	0.141 in		-25 °C	70 °C
