CWN-521 Series

Catalog

CONN HEADER R/A 60POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Mounting Type	Contact Material	Contact Length - Post	Contact Length - Post	Shrouding	Insulation Material	Number of Positions	Contact Type	Material Flammability Rating	Insulation Color	Insulation Height	Insulation Height	Fastening Type	Contact Finish - Mating	Number of Rows [custom]	Connector Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Number of Positions Loaded	Features	Contact Shape	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating

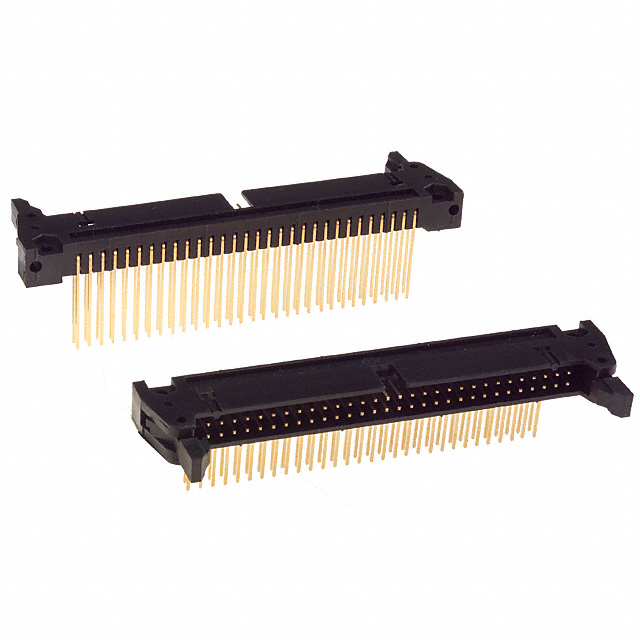

CW Industries CWN-521-60-0060	1.27 µm	50 µin	Board to Cable/Wire	Right Angle Through Hole	Phosphor Bronze	15.49 mm	0.61 in	Shrouded - 4 Wall	Thermoplastic	60	Male Pin	UL94 V-0	Black	8.89 mm	0.35 in	Latch Lock/Eject Hooks	Gold	2	Header	0.24 in	6.1 mm	Nickel	0.1 in	2.54 mm	Wire Wrap	All	Keying Slot	Circular	0.1 "	2.54 mm	-55 C	125 °C	0.25 µm	10 µin
