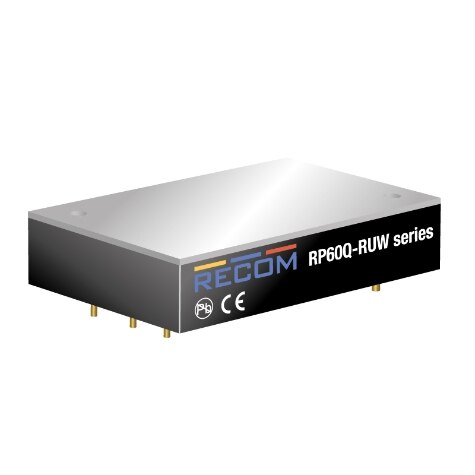

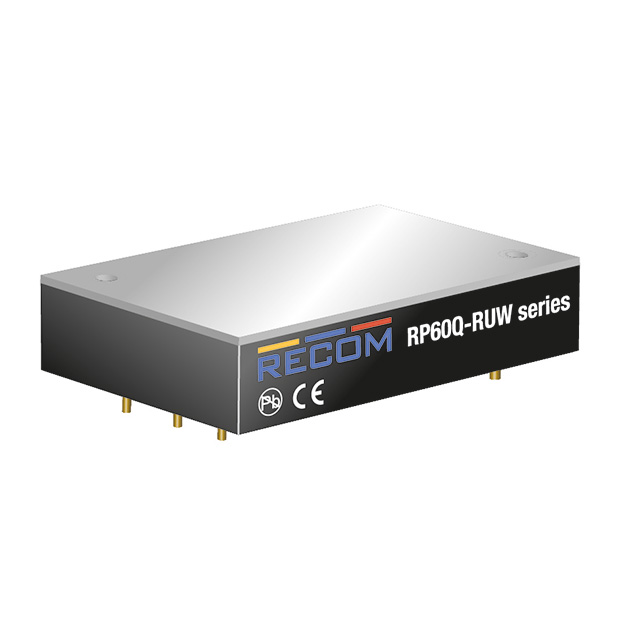

RP60Q-RUW Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED THROUGH HOLE DC/DC CONVERTER, RAILWAY, QUARTER BRICK, 10:1, 60 W, 1 OUTPUT, 48 V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Features | Current - Output (Max) [Max] | Package / Case | Number of Outputs | Efficiency | Type | Voltage - Output 1 | Supplier Device Package | Voltage - Isolation | Mounting Type | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Applications | Current - Output (Max) | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 105 C | -40 °C | 16 V | 160 V | OCP OTP OVP Remote On/Off SCP UVLO | 1.25 A | Quarter Brick | 1 | 89 % | Isolated Module | 48 V | Quarter Brick | 3000 V | Through Hole | 60 W | 36.8 mm | 1 in | 1.45 in | 57.9 mm | 25.4 mm | 2.28 " | ITE (Commercial) Railway | |||
 Recom Power | 105 C | -40 °C | 16 V | 160 V | OCP OTP OVP Remote On/Off SCP UVLO | Quarter Brick | 1 | 89 % | Isolated Module | 12 V | Quarter Brick | 3000 V | Through Hole | 60 W | 0.5 in | 1.45 in | 57.9 mm | 2.28 " | ITE (Commercial) Railway | 5 A | 12.7 mm | 36.8 mm | |||
 Recom Power | 105 C | -40 °C | 16 V | 160 V | OCP OTP OVP Remote On/Off SCP UVLO | 1.25 A | Quarter Brick | 1 | 89 % | Isolated Module | 48 V | Quarter Brick | 3000 V | Through Hole | 60 W | 36.8 mm | 1 in | 1.45 in | 57.9 mm | 25.4 mm | 2.28 " | ITE (Commercial) Railway | |||
Recom Power | 105 C | -40 °C | 16 V | 160 V | OCP OTP OVP Remote On/Off SCP UVLO | 12 A | Quarter Brick | 1 | 90 % | Isolated Module | 5 V | Quarter Brick | 3000 V | Through Hole | 60 W | 36.8 mm | 1 in | 1.45 in | 57.9 mm | 25.4 mm | 2.28 " | ITE (Commercial) Railway | |||
Recom Power | 105 C | -40 °C | 16 V | 160 V | OCP OTP OVP Remote On/Off SCP UVLO | 2.5 A | Quarter Brick | 1 | 90 % | Isolated Module | 24 V | Quarter Brick | 3000 V | Through Hole | 60 W | 0.5 in | 1.45 in | 57.9 mm | 2.28 " | ITE (Commercial) Railway | 12.7 mm | 36.8 mm | |||
Recom Power | 105 C | -40 °C | 16 V | 160 V | OCP OTP OVP Remote On/Off SCP UVLO | 4 A | Quarter Brick | 1 | 90 % | Isolated Module | 15 V | Quarter Brick | 3000 V | Through Hole | 60 W | 0.5 in | 1.45 in | 57.9 mm | 2.28 " | ITE (Commercial) Railway | 12.7 mm | 36.8 mm | |||
Recom Power | 105 C | -40 °C | 16 V | 160 V | OCP OTP OVP Remote On/Off SCP UVLO | Quarter Brick | 1 | 89 % | Isolated Module | 12 V | Quarter Brick | 3000 V | Through Hole | 60 W | 36.8 mm | 1 in | 1.45 in | 57.9 mm | 25.4 mm | 2.28 " | ITE (Commercial) Railway | 5 A | |||
 Recom Power | 105 C | -40 °C | 16 V | 160 V | OCP OTP OVP Remote On/Off SCP UVLO | 12 A | Quarter Brick | 1 | 90 % | Isolated Module | 5 V | Quarter Brick | 3000 V | Through Hole | 60 W | 0.5 in | 1.45 in | 57.9 mm | 2.28 " | ITE (Commercial) Railway | 12.7 mm | 36.8 mm | |||
Recom Power | 105 C | -40 °C | 16 V | 160 V | OCP OTP OVP Remote On/Off SCP UVLO | 4 A | Quarter Brick | 1 | 90 % | Isolated Module | 15 V | Quarter Brick | 3000 V | Through Hole | 60 W | 36.8 mm | 1 in | 1.45 in | 57.9 mm | 25.4 mm | 2.28 " | ITE (Commercial) Railway | |||
Recom Power | 105 C | -40 °C | 16 V | 160 V | OCP OTP OVP Remote On/Off SCP UVLO | Quarter Brick | 1 | 89 % | Isolated Module | 12 V | Quarter Brick | 3000 V | Through Hole | 60 W | 36.8 mm | 1 in | 1.45 in | 57.9 mm | 25.4 mm | 2.28 " | ITE (Commercial) Railway | 5 A |
