HHV Series

Manufacturer: YAGEO

Catalog

METAL FILM RESISTORS - THROUGH HOLE 1.69 MOHMS 1/2 W 1 % AXIAL

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Supplier Device Package	Package / Case	Tolerance	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Temperature Coefficient	Composition	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [diameter]
YAGEO HHV-50FT-52-1M69	Flame Retardant Coating High Voltage Safety	155 C	-55 C	1.69 MOhms	Axial	Axial	1 %	2	0.5 W	0.5 W	200 ppm/°C	Metal Film	0.13 in	0.354 in	9 mm	3.3 mm

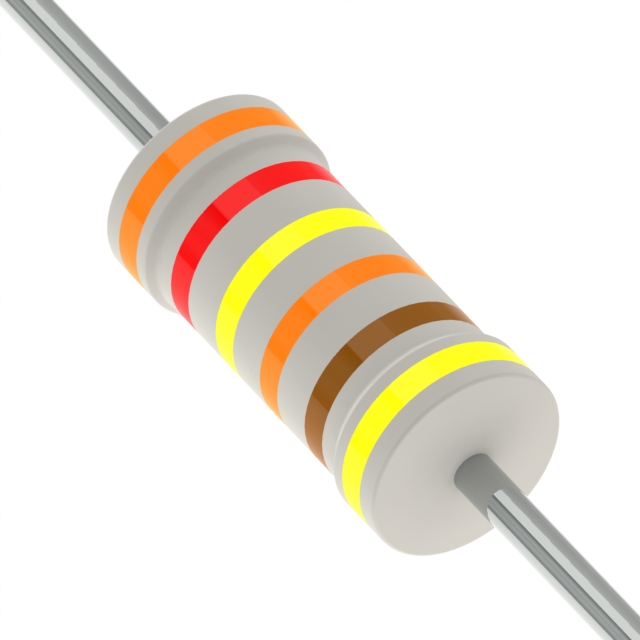

YAGEO HHV-50FT-52-324K	Flame Retardant Coating High Voltage Safety	155 C	-55 C		Axial	Axial	1 %	2	0.5 W	0.5 W	200 ppm/°C	Metal Film	0.13 in	0.354 in	9 mm	3.3 mm
YAGEO HHV-50JR-52-1M	Flame Retardant Coating High Voltage Safety	155 C	-55 C	1 MOhms	Axial	Axial	5 %	2	0.5 W	0.5 W		Metal Film	0.13 in	0.354 in	9 mm	3.3 mm
YAGEO HHV-25FT-52-2M2	Flame Retardant Coating High Voltage Safety	155 C	-55 C	2.2 MOhms	Axial	Axial	1 %	2	0.25 W	0.25 W	200 ppm/°C	Metal Film	0.094 in	0.248 in		6.3 mm	2.4 mm
YAGEO HHV2WSJT-73-100K	Flame Retardant Coating High Voltage Safety	155 C	-55 C	100 kOhms	Axial	Axial	5 %	2	2 W		200 ppm/°C	Metal Film	0.197 in	0.61 in		15.5 mm	5 mm
YAGEO HHV-25FR-52-2M2	Flame Retardant Coating High Voltage Safety	155 C	-55 C	2.2 MOhms	Axial	Axial	1 %	2	0.25 W	0.25 W	200 ppm/°C	Metal Film	0.094 in	0.248 in		6.3 mm	2.4 mm
YAGEO HHV-25FT-52-487K	Flame Retardant Coating High Voltage Safety	155 C	-55 C	487 kOhms	Axial	Axial	1 %	2	0.25 W	0.25 W	200 ppm/°C	Metal Film	0.094 in	0.248 in		6.3 mm	2.4 mm
YAGEO HHV-25FT-52-1M02	Flame Retardant Coating High Voltage Safety	155 C	-55 C	1.02 MOhms	Axial	Axial	1 %	2	0.25 W	0.25 W	200 ppm/°C	Metal Film	0.094 in	0.248 in		6.3 mm	2.4 mm

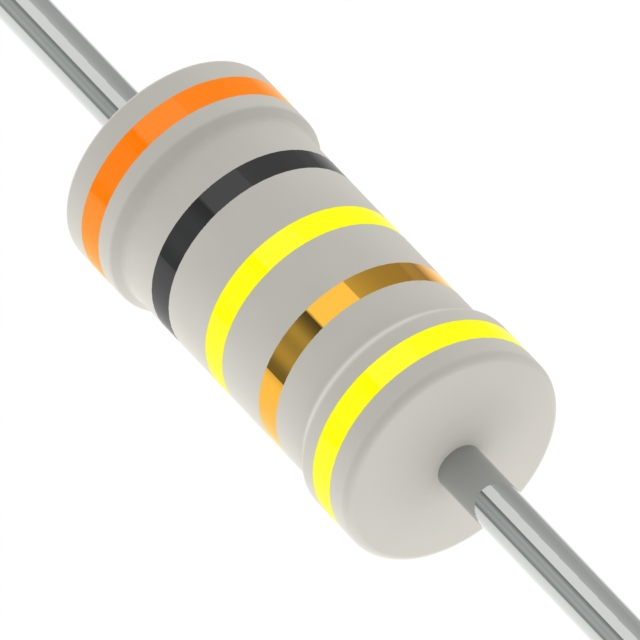

YAGEO HHV-25JT-52-300K	Flame Retardant Coating High Voltage Safety	155 C	-55 C	300 kOhms	Axial	Axial	5 %	2	0.25 W	0.25 W	200 ppm/°C	Metal Film	0.094 in	0.248 in		6.3 mm	2.4 mm
