8R15 Series
Manufacturer: 3M Electronic Specialty
Beta
⌘K

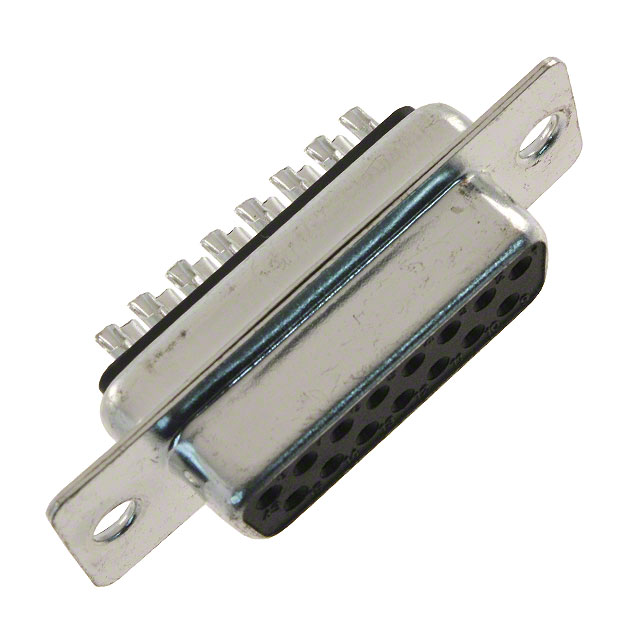

CONN D-SUB RCPT 15POS PNL MNT
| Part | Voltage Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Shell Size, Connector Layout | Contact Finish | Number of Rows [custom] | Current Rating (Amps) | Connector Style | Contact Finish Thickness | Material Flammability Rating | Mounting Type | Number of Positions | Contact Type | Connector Type | Shell Material, Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M Electronic Specialty | 250 V | Copper Alloy | -55 C | 105 ░C | Thermoplastic | 2 | Gold | 2 | 3 A | D-Sub | Flash | UL94 V-0 | Panel Mount | 15 | Signal | Receptacle Female Sockets | Steel | Housing/Shell (Unthreaded) |
