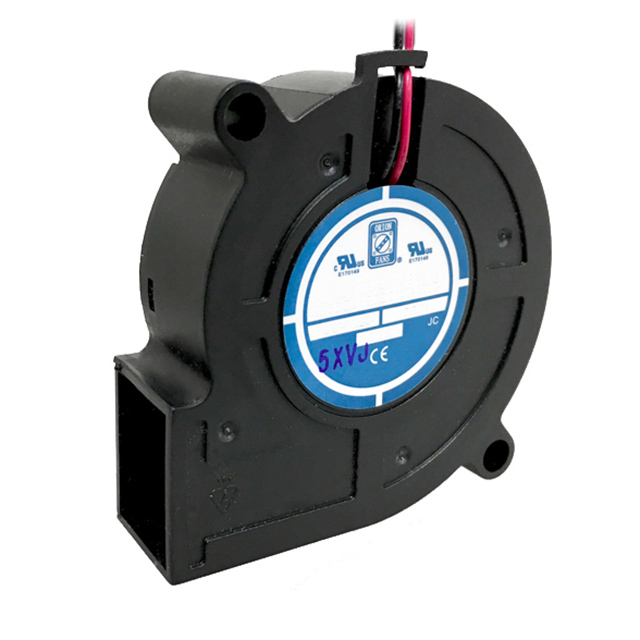

ODB5115 Series

Catalog

FAN BLOWER, 51MM, 1.1W, 12VDC ROHS COMPLIANT: YES

Part	Current Rating (Amps)	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Static Pressure	Static Pressure	Fan Type	Voltage - Rated	Termination	Power (Watts)	Noise	RPM	Weight [custom]	Weight [custom]	Air Flow	Air Flow	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	Approval Agency	Static Pressure
ORION FANS ODB5115-12HB	120 mA	70000 Hrs	7 V	13.2 VDC	Polybutylene Terephthalate (PBT)	15 mm	70 °C	-10 °C	124.5 Pa	0.5 in H2O	Blower	12 VDC	2 Wire Leads	1.92 W	38 dB(A)	5500 RPM	0.059 lb	26.76 g	0.118 m³/min	4.2 CFM	Rectangular/Rounded	51.11 mm	47.76 mm	Ball	CE cURus
ORION FANS ODB5115-12MB		70000 Hrs	7 V	13.2 VDC	Polybutylene Terephthalate (PBT)	15 mm	70 °C	-10 °C		87.2 Pa	Blower	12 VDC	2 Wire Leads	1.44 W	37 dB	4500 RPM	0.059 lb	26.76 g	0.092 m³/min	3.3 CFM	Rectangular/Rounded	51.11 mm	47.76 mm	Ball	CE cURus	0.35 in H2O
ORION FANS ODB5115-12LB	45 mA	70000 Hrs	7 V	13.2 VDC	Polybutylene Terephthalate (PBT)	15 mm	70 °C	-10 °C		49.8 Pa	Blower	12 VDC	2 Wire Leads	840 mW	32 dB	3500 RPM	0.059 lb	26.76 g	0.067 m³/min	2.4 CFM	Rectangular/Rounded	51.11 mm	47.76 mm	Ball	CE cURus	0.2 in H2O
