LMXS-F Series

Catalog

POWER INDUCTORS - SMD 22UH 20%

Part	Tolerance	Material - Core	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance	Shielding	DC Resistance (DCR)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Current Rating (Amps)	Type	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KYOCERA AVX LMXS131JM220FTAS	20 %	Ferrite	Surface Mount	12.5 mm	0.492 "	12.5 mm	0.492 "	125 °C	-40 C	22 µH	Shielded	32 mOhm	0.309 "	7.85 mm	100 kHz	4 A	Drum Core Wirewound	Nonstandard

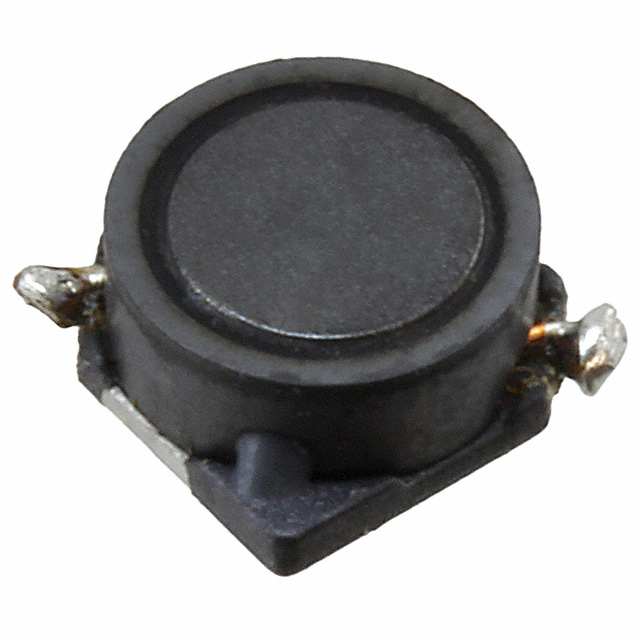

KYOCERA AVX LMXS06C6M100FTAS	20 %	Ferrite	Surface Mount	6 mm	0.236 "	6 mm	0.236 in	125 °C	-40 C	10 µH	Shielded				100 kHz	1.3 A	Drum Core Wirewound	Nonstandard	0.118 "	3 mm
